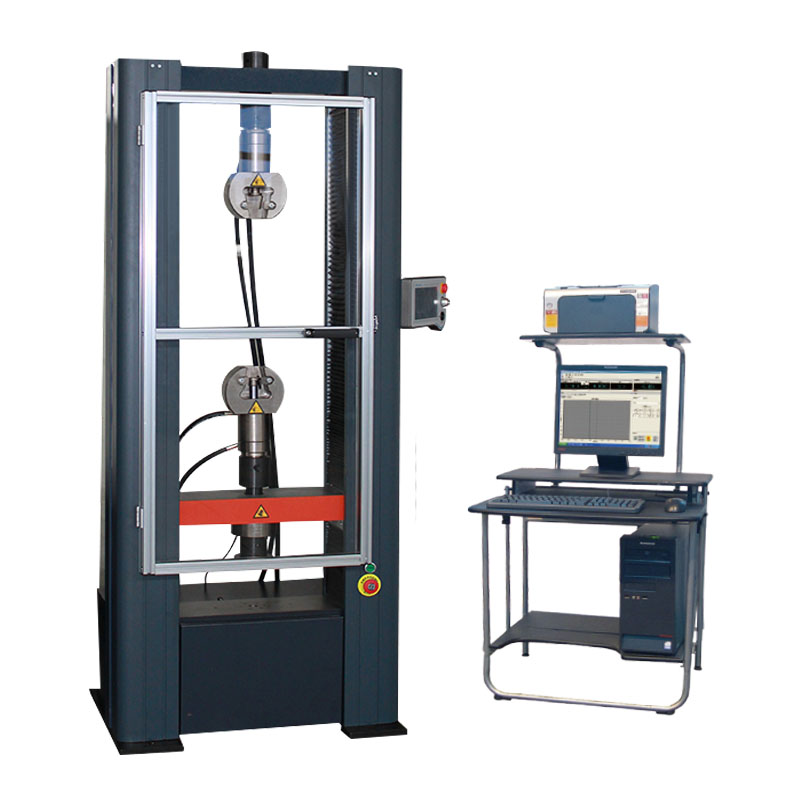

100KN Automatic Data Processing Universal Testing Equipment with CE

$4720.00

≥1 set
$4620.00

≥2 set
$4450.00

≥5 set

use:

Plastic Testing Machine
Wood Testing Instrument
Universal Testing Machine
Compression Testing Machine
Strength Testing Machine

Get Latest Price

Model No.
Brand Name
Warranty	1 Year
Customized Support	Oem
Place Of Origin	Shandong, China
Brand Name	XLC
Model Number	WDW-100M
power	Electronic
Product name	universal tensile testing machine
Load accuracy	1class(0.5 for option)
Test Speed	0.01-500mm/min
Max Load	100kn
Tensile space	800mm
Test width	480mm
clamp type	munual clamp or hydraulic clamp
Certification	ISO

100KN automatic data processing universal testing equipment with ce

Product Description

100KN automatic data processing universal testing equipment with ce

1.Application:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standards:

ASTMA370,ASTME4,ASTME8,ASTME9,ISO6892,ISO7438,ISO7500-1,EN10002-4,GB/T228-2002,etc.

3.Specifications:

Model	WDW-100M
Max. Testing Force	100kN
Character	Adopting TECO servo systems and servo motor, with full-digital Measure control system
Machine Stiffness(kN/mm)	300
Measure Range of Testing Force	2%-100% of the Max. testing force
Accuracy of Testing Machine	Over ±1% than the value display
Accuracy of Deformation Measure	±1%
Measure of Cross-beam Displacement(mm)	Discrimination 0.001
Accuracy of Testing Force Value Display	Over ±1% than the value display
Measure Range of Deformation	2-100%
Measure Range of Large Deformation	10~800(optional)
Accuracy of Large Deformation	With in ±1% of the value display
Discrimination of Displacement(mm)	0.001
Adjustment Range of Force Control Speed	0.001~10%
Accuracy of Force Control Speed	≤±1%
Adjustment Range of Deformation Speed	0.00025 /S~0.0025 /S
Control Accuracy of Deformation Rate	≤±1%
Adjustment Range of Displacement Rate	0.01mm/min~500mm/min;(random setting)
Accuracy of Displacement Rate and Space	≤±1%
Tensile Volume(mm)	600
Width of the Testing Space(mm)	470
Overall Dimension (mm)	845 ×654×2176
Clamping Type	Standard Refiguration: wedge tensile,compression, bending optional implement,wedge, plate and any other jaw optional implement
Weight(kg)	700
Motor Power(kW)	1.5
Type of Machine	Floor type
