Description:

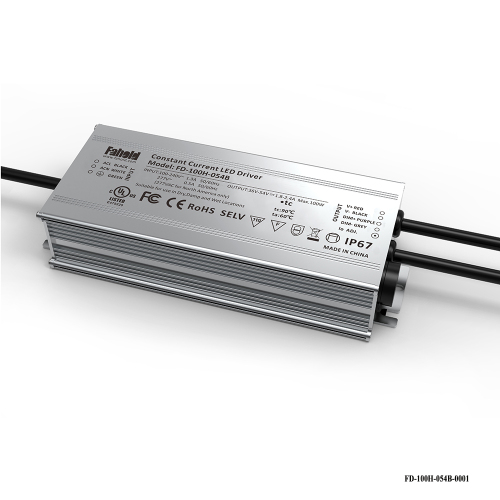

The FD-100HxxxB Series operate from a 90 ~ 305 Vac input range. These units will provide up to a 2.4A of output current and a maximum output voltage of 54 V for 100 W maximum output power. They are designed to be highly efficient and highly reliable. The standard features include dimming control, lightning protection, over voltage protection, short circuit protection, and over temperature protection.



Featutre:

High Efficiency (Up to 91%)

Active Power Factor Correction (Typically 0.99)

Constant Current Output

Dimming Control

Lightning Protection

Waterproof (IP67)

All-Round Protection: OVP, SCP, OTP

Complies with UL8750 & EN61347 Safety Regulations



Application:

moving signs

Backlighting

LED-based decorative lighting

LED-based architectural lighting

LED stage and theater lighting

LED electronic displays



Specification:

Input Voltage 90 ~ 305 Vac

Input Frequency 47 ~ 63Hz

Input Current Max 1.3A/100Vac 0.6A/220Vac, full load

Inrush Current 50A/230Vac 25°C, cold start

Leakage Current 1 mA at 277Vac 50Hz input

Power Factor 0.99/110Vac 0.96/220Vac

Ripple & Noise 3% of Voltage

Line Regulation 5%

Load Regulation 5%

Dimming Control Operation via potentiometer or from an input signal of 1 – 10 Vdc

Four recommended implementations

Over Voltage Protection Latch mode. Power supply shall return to normal operation once powered off/on.

Over Temperature Protection 110°C

Short Circuit Protection No damage shall occur when any output operating in a short circuit condition.

The power supply shall auto-recover when the fault condition is removed.

Operating Temperature -35°C ~ +70°C

Operating Humidity 10% to 100% RH

Storage Temperature, Humidity -40°C ~ +85°C, 5% to 100% RH

Safety Standards EN 61347-1, EN61347-2-13, UL8750

Compliance to UL1310 Class 2, UL1012 UL935, CAN/CSA-C22.2 No. 0,

CSA-C22.2 No. 107.1, CSA-C22.2 No. 250.0

EMC Compliance to EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547,

EN 61000-4-2, 3, 4, 6, 8, 1-1

MTBF 350,000 hours 110Vac input, 80% load and 25°C ambient temperature (MIL-HDBK-217F)

Lifetime 100,000 hours at 45°C ambient temperature
