10mm ABS Sheet Plastic solid abs extruded sheet
$1.80
100 Kilogram (MOQ)
$1.80
100 Kilogram (MOQ)
$1.80
100 Kilogram (MOQ)
$1.80
100 Kilogram (MOQ)
$1.80
100 Kilogram (MOQ)
Basic Info
| Brand Name | AHD |
|---|---|
| place of origin | China |
| Material | Abs |
| Processing Service | Cutting, Moulding |
| Size | 1250*2000mm |
| Color | white/yellow/black |
Product description
Hot Sale 3mm 6mm 8mm 10mm ABS Sheet Plastic 4x8 solid abs extruded sheet plate
ABS Sheet datasheet:
| Item | ABS (Acrylonitrile Butadiene Styrene) sheet |
| Type | extruded |
| Thickness | 2---180mm |
| Size | (1000-1500)x(1000-3000)mm |
| Color | Black,White,Clear, Yellow |
| Proportion | 1.06g/cm3 |
| Heat resistance (continuous) | 70℃ |
| Heat resistance (short-term) | 85℃ |
| Melting point | 170℃ |
| Glass transition temperature | _ |
|
Linear thermal expansion coefficient (average 23~100℃) |
100×10-6m/(m.k) |
| Flammability(UI94) | HB |
| Tensile modulus of elasticity | 2100MPa |
| Bending tensile stress/ Tensile stress off shock | 70/- |
| Compressive stress of normal strain-1%/2% | 17 |
| Pendulum gap impact test | _ |
| Friction coefficient | 0.5 |
| Rockwell hardness | 70 |
| Dielectric strength | >20 |
| Volume resistance | ≥10 14Ω×cm |
| Surface resistance | ≥10 13Ω |
| Relative dielectric constant-100HZ/1MHz | 3.3/- |
| Bonding capacity | + |
| Food contact | - |
| Acid resistance | + |
| Alkali resistance | 0 |
| Carbonated water resistance | + |
| Aromatic compound resistance | - |
| Ketone resistance | - |

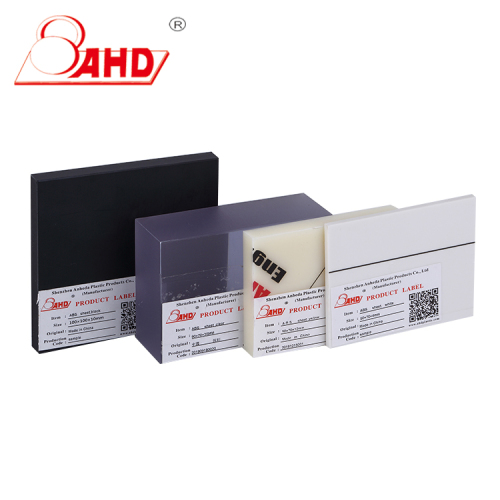

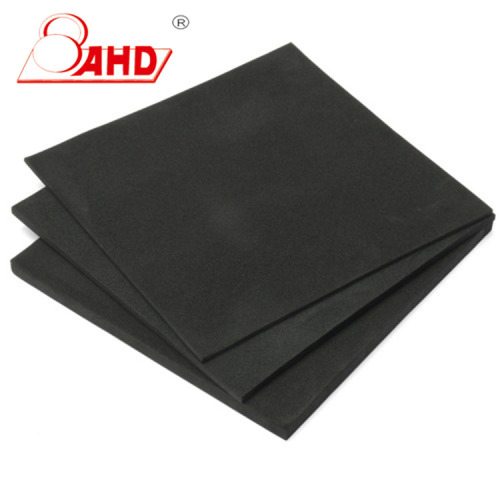

ABS sheet pictures:
Remarks:
- Other sizes, colors can be customized
- Length, width, diameter and thickness tolerances may vary by manufacturer
- Certain grades available in various colors
- Free Sample is available for quality evaluation
Main Properties:
- Easy to weld using thermoplastic welding equipment
- It offers good resistance to a wide range of chemicals including many solvents.
- As water absorption is almost nil, dimensional accuracy and stability is higher than that of Nylons.
- POM is also noted for its high mechanical strength, heat resistance and good antifriction properties.
- It is porosity free and is approved for contact with food
- For parts which need to be dimensional stable even exposed to humid or wet environments copolymeric Acetal offers better hot water, thermal and chemical resistance than homopolymeric Acetal.
Application:
- Machinery industry used to produce gears, springs, bearings, wheels, connecting rod, impeller blades etc..
- Automobile industry
- Electronic and electrical appliances
- Others such as toys, windows, water tanks and washing basins
AHD also offer ABS, PE, PP, POM, PU, PC, PA66....sheet/tube/rod, welcome your inquiry.
Anheda group is invited to participate in domestic and international trade exhibitions every year as the most representative exhibitor,has widely attracted the attention of customers from all over the world.It making anheda group play more loudly, spread farther and have wider influence.
Packing Details : Iron pallets on bottom with PE film covered
Delivery Details : 7 - 45 days according to the upload time and QTY
1. Q: Can you match color for us?
A: Yes, we can. You can send your samples to us, then we can match for you.
2. Q: What's the cost of the sample?
A: The sample cost is free, but if you can afford the freight we will appreciate.
3. Q: How do you ship samples?
A: Considering sample quantity is not big, we support ship samples by DHL,TNT or fedex , fast and less damages.
4. Q: Could I use my own forwarder?
A: Of course.
5. Q: Is the sample same with formal orders?
A: Yes, sample's specification, performance, quality are totally same with formal orders.
6. Q: What's your delivery time?
A: For samples: within 1-3 working days; For orders: within 7-30 working days.
