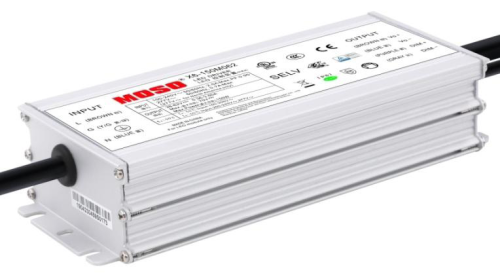

150W Universal Constant Power LED Power Supply

The X6-150W series is 150W LED Driver Dimming Control that LED Driver with Dali Control and LED Driver rgb. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver. X6 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

Product features:

• Universal input voltage / Full range: 90~305Vac; Constant power design, output current programming adjustable;
• (M types) offline programmable,( 57290898, 57290877, 57267762,V types) output current adjustable by built-in potentiometer;
• 3-in-1 dimmable: 0~10Vdc, PWM, Timer dimming. Dim-to-off;
• Constant lumen output
• Output and Dimming Signal Isolating
• Surge protection: 5KV line-line, 10KV line-earth;
• Protections: SCP, OVP, OTP;
• IP67 design for indoor and outdoor applications;
• Suitable for dry / damp / wet locations;
• 7-10 years warranty. Application:
• Suitable for LED roadway lighting, plant lighting, industrial lighting, landscape lighting, etc.


Technical Parameters:

Input Voltage	90~305 Vac	Protection Functions	Short Circuit
Input Current	1.5A		Over Voltage
Inrush Current	75A		Over Temperature
Power Factor	0.96	Intelligent Control	Iout programmable
THD	≤15%		1~10V dimming
Operating Temp.	-40°C  ~ 60°C		PWM dimming
IP Rating	IP67		Timer step dimming

Application:

LED street / tunnel lighting, industrial lighting, flood lighting, grow lights, stadium lighting, etc.
