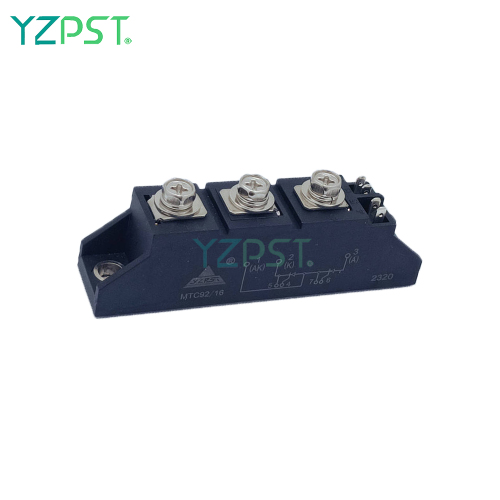

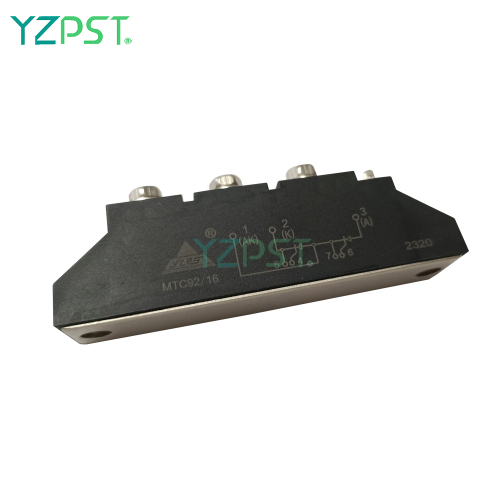

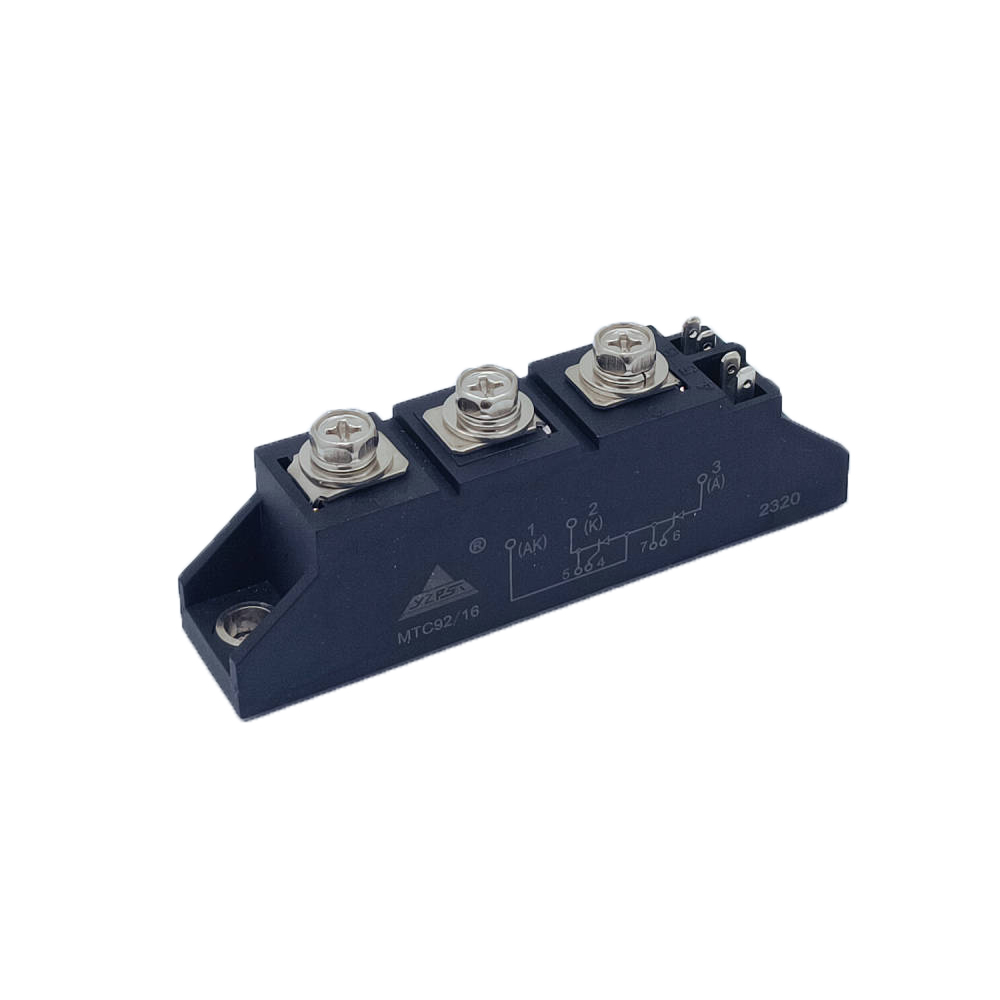

1600V MTC92-16 Dual Thyristor Modules

  • $13.50

    ≥50 Piece/Pieces

  • $8.80

    ≥200 Piece/Pieces

Options:

  • VDRM/VRRM：1600V
  • VRSM:1700V
  • IT(AV):95A
  • ITSM:2000A
  • I2t:20kA2S
  • (di/dt)cr:140A/us
Get Latest Price

Basic Info

Model No. YZPST-MTC92-16
Brand Name YZPST
place of origin China
VDRM/VRRM 1600V
VRSM 1700V
IT(AV) 95A
ITSM 2000A
I2t 20kA2S
(di/dt)cr 140A/us
Tj -40 ~ + 125℃
Tstg -40 ~ + 125℃
Show More

Product description

Dual Thyristor Modules

TYPE: YZPST-MTC92-16
Features
 · Industrial standard package
 · Electrically insulated base plate
 · Heat transfer through aluminium oxide ceramic insulated metal base plate
 · Chip soldered on direct copper bonded AL2O3 ceramic
 · Thyristor chip with center gate
Typical Applications
 · DC motor control
 · AC motor soft starters
 · Temperature control
 · Professional light dimming

VDRM/VRRM



1600/1600

V

VRSM



1700

V

Maximum Ratings

Symbol

Condition

Ratings

Unit

IT(AV)

sin. 180; Tc =85°C,

95

A

ITSM

Tvj =25°C; 10 ms

2000

A

I2t

Tvj =25°C;  8,3…10 ms

20

kA2S

(di/dt)cr



140

A/us

Viso

A.C. 1s / 1min.

3600/3000

V

Tj



-40  ~  + 125

°C

Tstg



-40  ~  + 125

°C

W



-

g

Electrical Characteristics

Symbol

Condition

Ratings

Unit

IDRM /IRRM

AtVDRM, Tj=125°C

15

mA

VT

On-State Current 300A, Tj=25°C

1.63

V

VT(TO)

Tj=125°C

0.9

V

tgd

Tj=25°C

1

us

tq

Tj=125°C

100

us

IGT/VGT

Tj=25°C

150 / 3

mA/V

VGD

Tj=125°C

0.25

V

(dv/dt)cr

Tj=125°C

1000

V/us

IH

Tj=25°C, typ. / max.

140/240

mA

IL

Tj=25°C, typ. / max.

260/550

mA

Rth(j-c)

Per Module

0.14

K/W

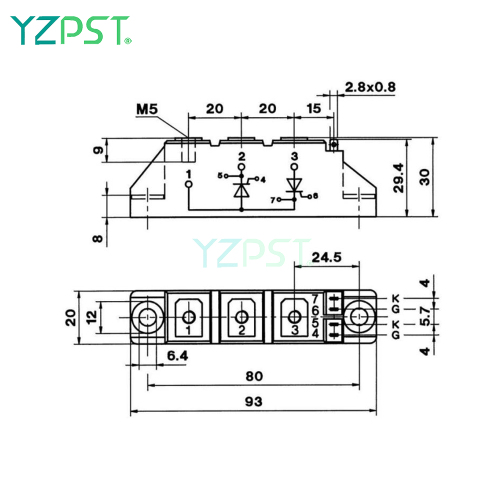

Outline Drawing

MTC92-16 Outline Drawing
