165mm Drill Bit for GK50 DTH Hammer
$100.00
≥1 Piece/Pieces
Basic Info
| Brand Name | XTC |
|---|---|
| status | New |
| warranty period | 1 Year |
| Applicable industry | Energy &Amp; Mining |
| Where to provide local services (in which countries are there overseas service outlets) | Egypt, Canada, Turkey, United Kingdom, United States, South Africa, Kazakhstan |
| Showroom location (in which countries are there sample rooms overseas) | Canada, Egypt, United Kingdom, United States, Indonesia, Pakistan, India, Mexico, Russia |
Product description

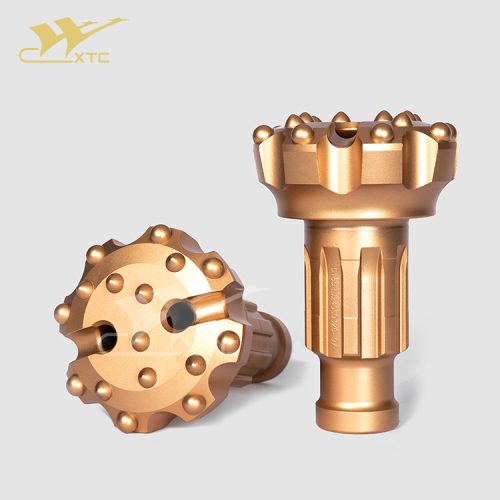

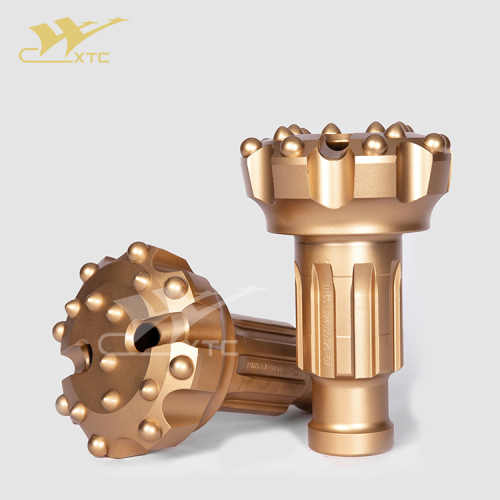

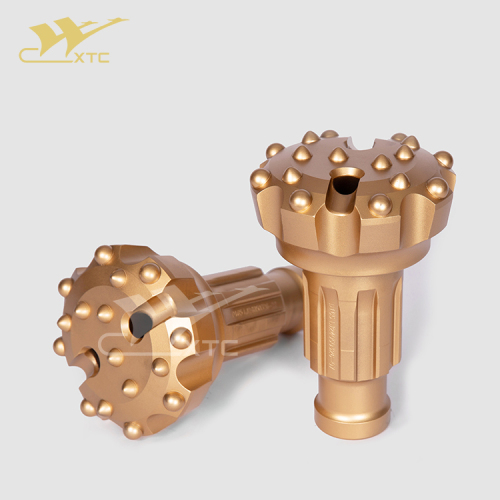

165mm GK50 DTH hammer bits uses YK05 or GF20G as materials of button and 23CrNi3Mo or FF710 as materials of body. 165mm GK50 DTH hammer has Flat face and 8 Spline with 8*12mm gauge spherical buttons and 8*10mm front ballistic buttons. 165mm GK50 DTH bits is widely used on Quarrying, DTH drilling bit, Surface Mining, Underground Mining.

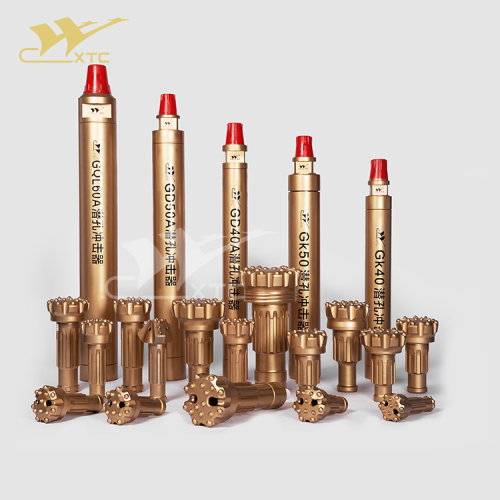

XTC Luoyang DTH Hammer Bits have high-air pressure and low-air pressure ones.
With advanced design concept, better wear-resistance, better impact-resistance, higher drilling speed and longer service life, they are widely used in large-scale open pit mining, quarry and other construction projects.
Model |
165mm GK50 |
Material |
Button: YK05 OR GF20GBody: 23CrNi3Mo, FF710 |
Air Pressure |
High |
Head Dia. |
165mm |
Face Design |
Flat Face, Convex, Concave, Bulldog |
Bit Shank |
GK50 |
Foot Valve |
Yes |
Button Set |
8*16mm+8*14mm |
Button Shape |
Spherical, Ballistic, Semi-ballistic, Conical |
Body type |
8 Spline |
Application |
Quarrying, Surface Mining, Underground Mining, Well Drilling, Foundation Drilling |
