The APM DC power system can use the master-slave mode to support parallel connection, active current sharing, and expand the power and current output capabilities. What is particularly rare is that after the power is expanded, it can still maintain excellent dynamic characteristics, so as to meet the needs of a variety of high-power and high-speed applications. The requirement of IV characteristic curve test.APM technologies products of our company are: Programmable Power Supplies,DC Power Supplies,AC Power Supplies, DC Electronic load,Three Phase AC Source System,Lab Power Supply. If you are intrested, please contact us.

Connecting the cabinet

1. The cabinets can be connected in parallel in order to increase output power.

◆ Maximum 16 units 3U height same model DC power supplies or 6U height same model DC power supplies can be connected via the bus.

◆ 16 units each with a power of 18kW are connected together to a 288kW system.

◆ 16 units each with a power of 36kW are connected together to a 576kW system.

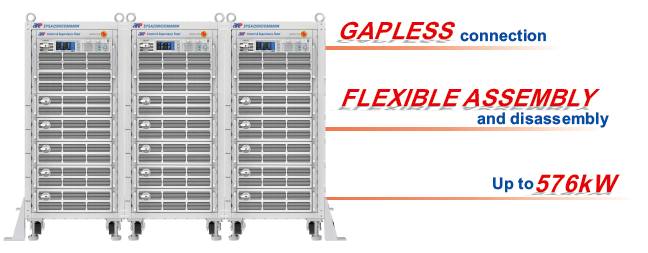

2. Different height cabinets can be connected in parallel.

◆ Use parallel bars to simplify the connection between multiple rack cabinets.

◆ Realized the gapless connection between multiple rack cabinets.

System

Master-slave system configuration page.

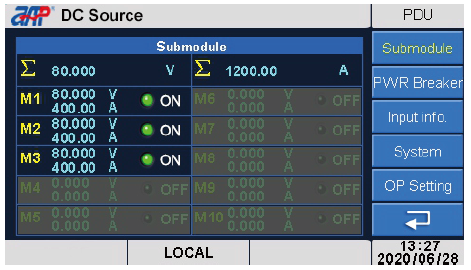

Submodule

DC output parameters reading page.

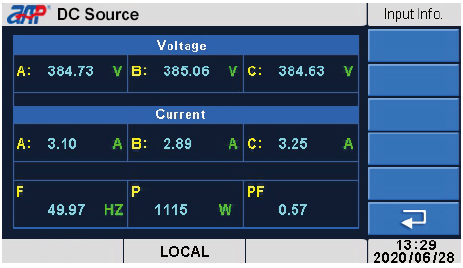

Input Info.

AC input parameters measurement page.

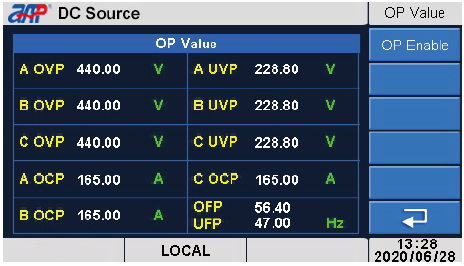

OP Value

AC input protection parameters setting page.
