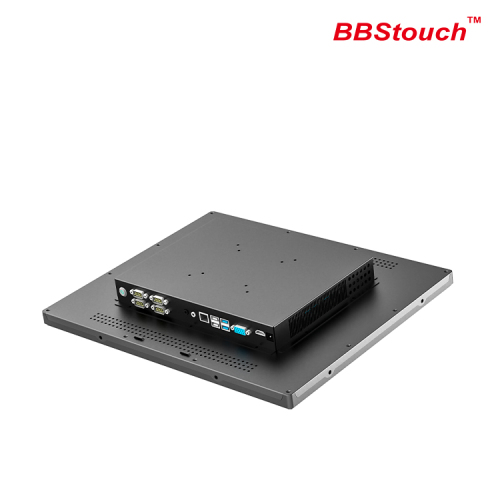

19" Industrial Touch Panel PC All-in-one
screen size:
- 19"
Basic Info
| Model No. | TC2C-190 |
|---|---|
| place of origin | China |
| product status | New |
| Panel type | Tft |
| Warranty period (years) | 1-Year |
| Graphics card type | Integrated Card |
Product description
Our touch panel PCs combine advanced computing power with a range of hardened displays,providing a rugged solution
for human/machine interface (HMI),industrial control,factory automation,kiosk systems,retail terminal,IoT applications,
transit inquiry and medical intelligent control. These (7” to 55”) industrial touchscreen all-in-one adopts 10-point projec
-tion capacitive touch technology and modular design,both powerful functions and multiple configuration options are
availableand,has cross-environmental use the versatility,can meet the needs of continuous public use.They have passed
CE,FCC,RoHS,CCC,UL(power adapter),HDMI certifications,etc.
Features
■ 7" to 55" available for different applications;
■ Supported OS:Windows,Linux,Android;
■ Intel Core Motherboard,optional I3,I5,I7 processors;
■ Pure flat front panel,adopt A+grade industrial screen;
■ Capacitive Touch Screen,10-point multi touch;
■ IP65 waterproof and dustproof,IK08 explosion-proof compliant front panel;
■ Dense ventilation holes on the back,efficient heat dissipation;
■ Embedded,wall-mounted and desktop installation available.
Configuration
CPU: Storage: Module:
10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.
Specifications
| Size / Panel Type | 19” Open frame touch all-in-one |
| Display Size(W*H*T) | 430 x 355 x 57mm |
| Resolution | 1280 x 1024 |
| Brightness | 250cd/m² (Option: 1000cd/m²) |
| Contrast Ratio | 1000 : 1 |
| Response Time | 5 ms |
| Backlight | LED Backlight Unit |
| Colors | 16.7M colors |
| Viewing Angles | 170°/160° |
System
| Motherboard | Intel Core ,Optional I3,I5,I7 |
| Wifi | Built-in 802.11b / g / n wireless, external two 3DB omnidirectional antenna |
| Sound Card | Onboard Realtek ALC662HD audio decoding |
| RAM | Optional 2-16G |
| MSTAT SSD | Optional 64-512G |
| HDD | Optional Addition of 500G, 1T HDD |
| Graphics | Onboard Intel HD graphics |
| Speakers | Built-in 2*3W Speakers |
| Network Card | 1 Road Onboard Realtek 8111e Gigabit |
| Display Ports |
VGA,HDMI,4*USB,Audio input,Audio output,2*RS232 |
| Supported OS |
Windows OS(suggest Windows7 up );Linux;Android x86 |
Environment
| Temperature | Operating: 0℃ to 50℃; Storage: -20℃to 60℃ |
| Humidity(non-condensing) | Operating: 20% to 80%; Storage: 5% to 95% |
| Water and dust protection/Explosion-proof | IP65(front)/IK08(front) |
| Mounting options |
100mm or 75mm VESA mounting,open bracket mounting |
| Agency Approvals | CE,FCC,RoHS,CCC |
Customization
Applications
19" Industrial Touch Panel PC All-in-one
