Basic Info
| Model No. | MBN-FOSC-A14 |
|---|---|
| Brand Name | OEM or Bwinners |
| Sealing Structure | Mechanical Sealing |
| Protection Grade | Ip65 |
| Condition | New |
| Cable Ports | 4 In 8 Out |
| Material | Strengthen Polymer Plastic |
Product description
MBN-FOSC-A14 1X8 Sc Plc Fiber Distribution Boxes
1X8 Sc Plc Fiber Distribution Boxes widely used as the distribution and terminal connection in the FTTx communication network system. It provides fiber splicing, protection, splitting, distribution, fiber storage, fiber management integrates functions for the FTTX network. It is a perfect cost-effective solution-provider in the FTTx networks.
Specification:
|
Name |
1X8 Sc Plc Fiber Distribution Boxes |
|
Model |
MBN-FOSC-A14 |
|
Dimension |
38X20X12CM (AxBxC) |
|
Max Capacity |
8 Cores (SC/APC) pre-connectors; 2pcs 1X8 Splitter |
|
Cable Ports |
4 In 8 Out |
|
Cable Diameter |
Inlet Cable: 4 Ports Φ10~Φ16mm; Outlet Cable: 8 Ports 2*3~Φ5 |
|
Sealing Structure |
Mechanical Sealing |
|
Material |
Strengthen Polymer Plastic |
|
Installation Size |
180X352X35X348mm(DxExFxG);Wall-mounted, Pole-mounted, Aerial |
|
Packing info: |
QTY: 10 PCS; Carton size:44X43X77CM; G.W.:24KGS |

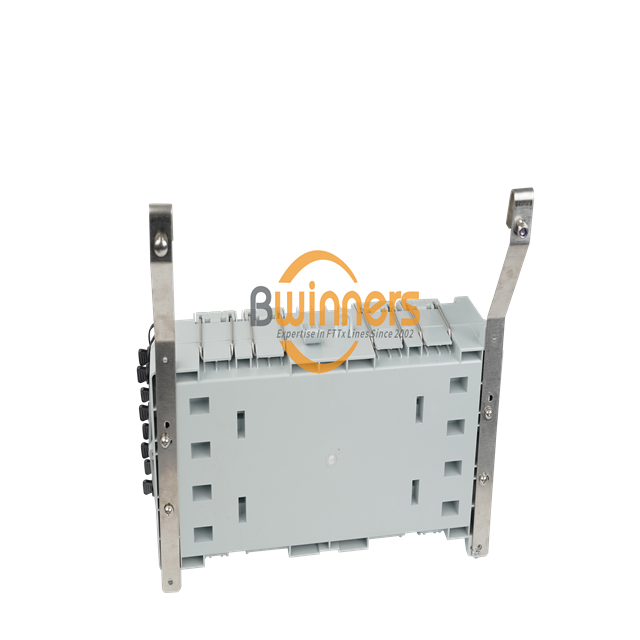

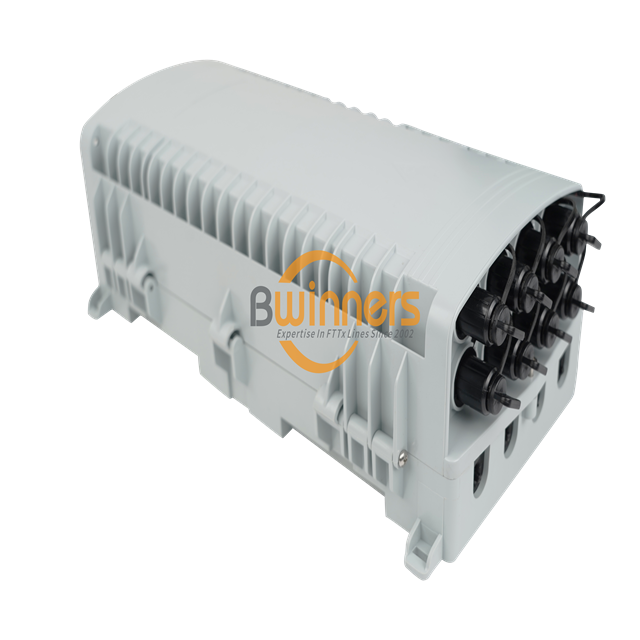

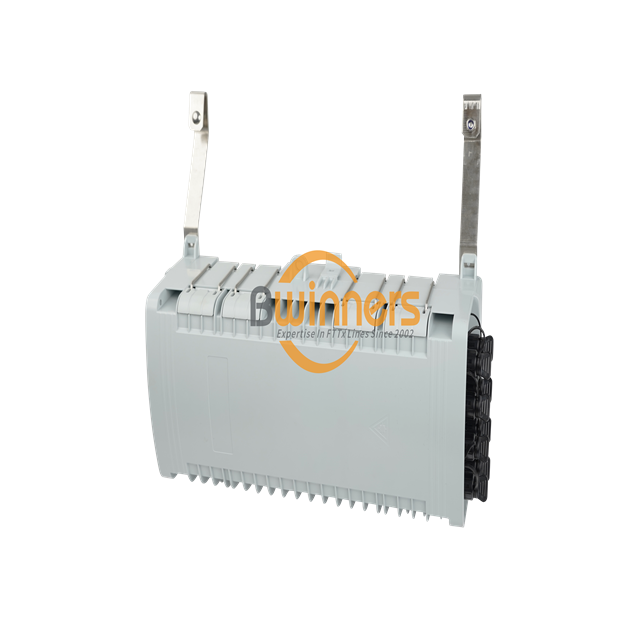

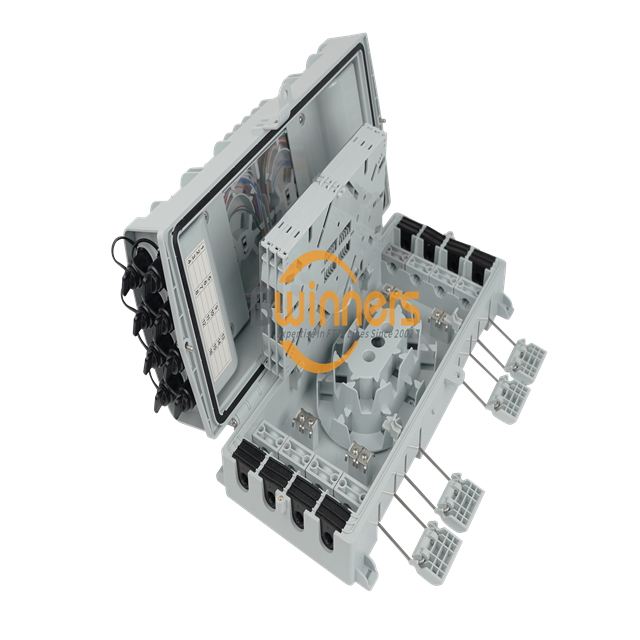

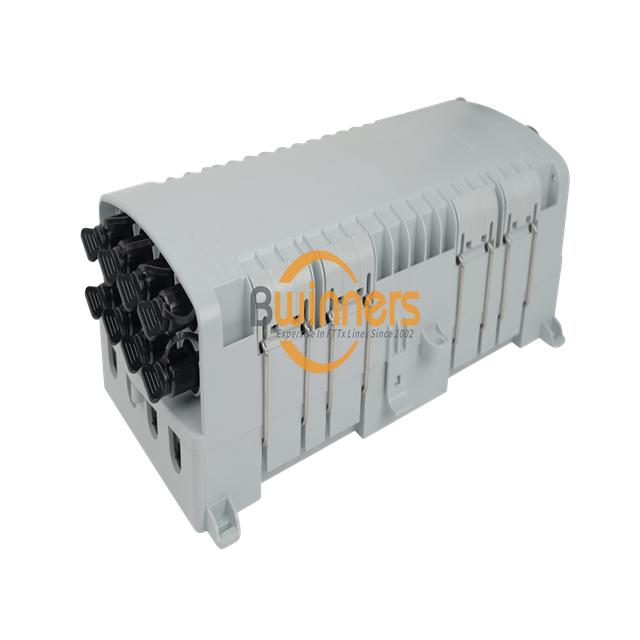

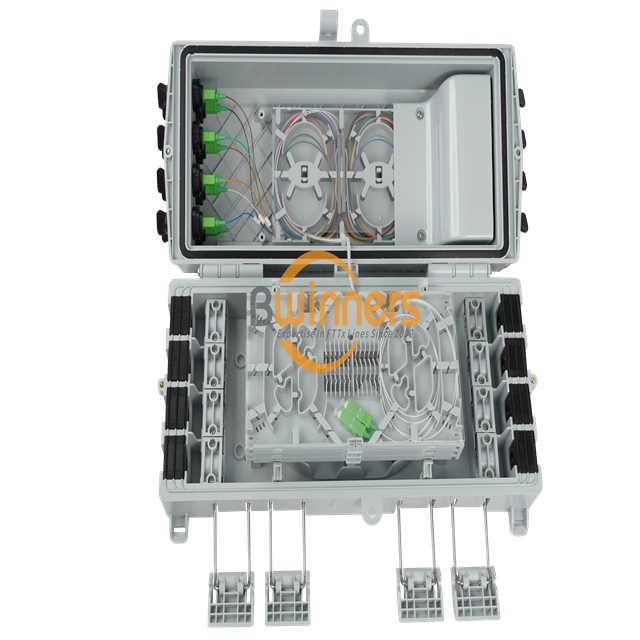

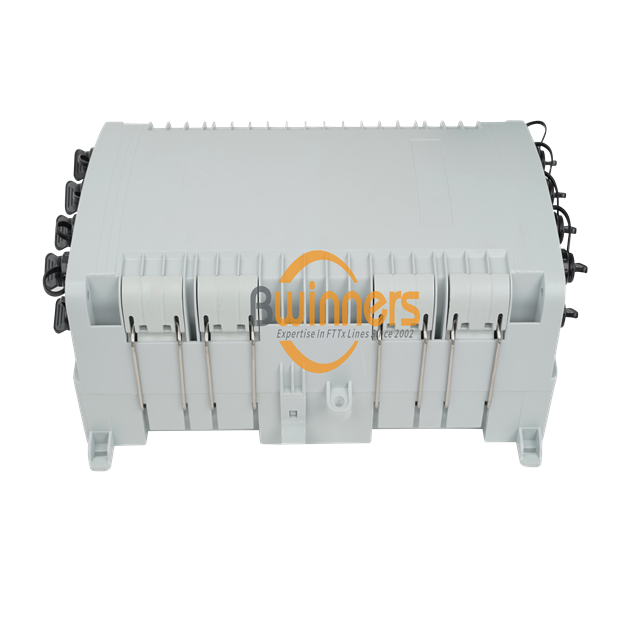

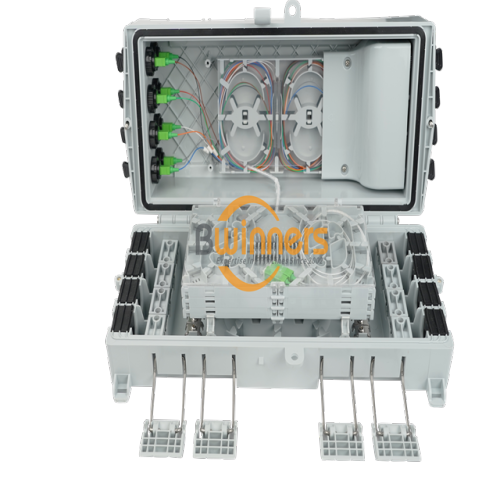

Photos of MBN-FOSC-A14:








Features:
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Application:
1. CATV networks;
2. Optical fiber communication;
3. FTTX;
4. Fiber optic network convergence;
5. Optical fiber access network;
6. Widely used in FTTH access network;
7. Telecommunication networks;
8. Data communications networks;
9. Local area networks;
10. Aerial, Direct buried, underground, pipeline, hand-holes, duct mounting, wall mounting.
