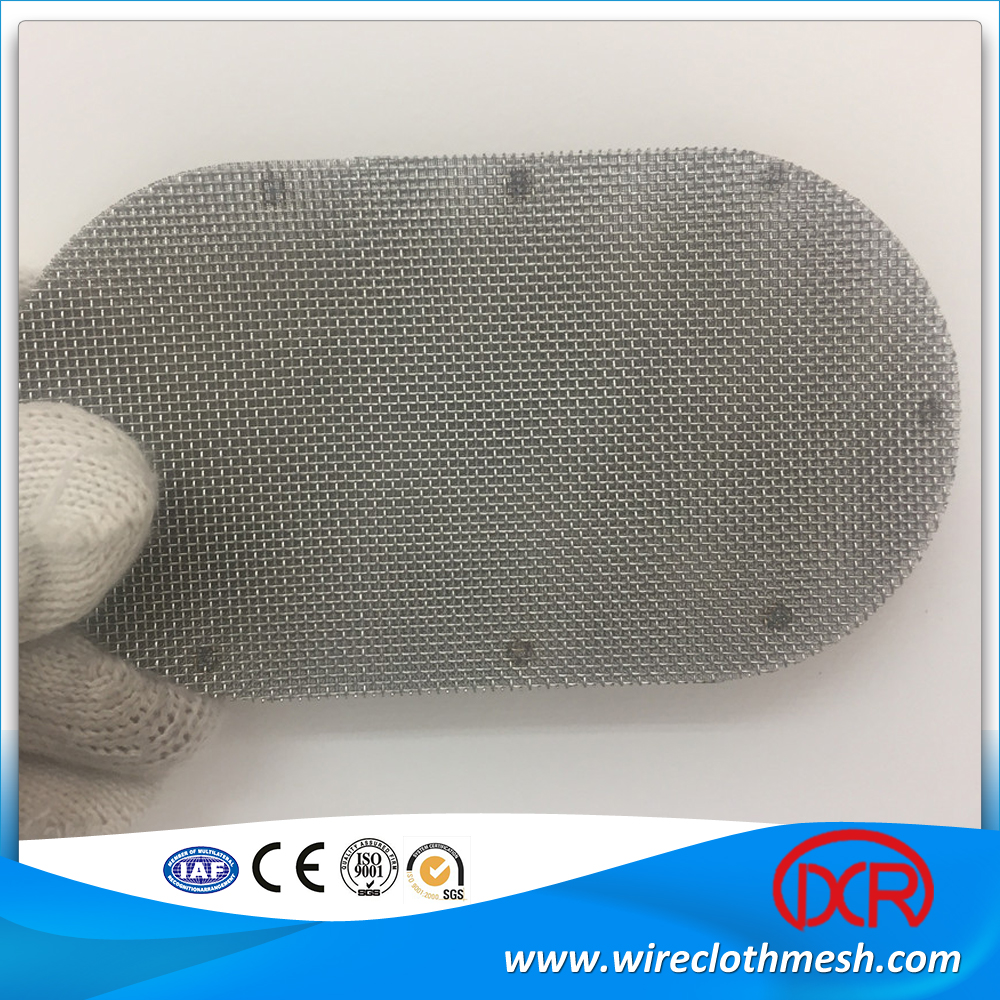

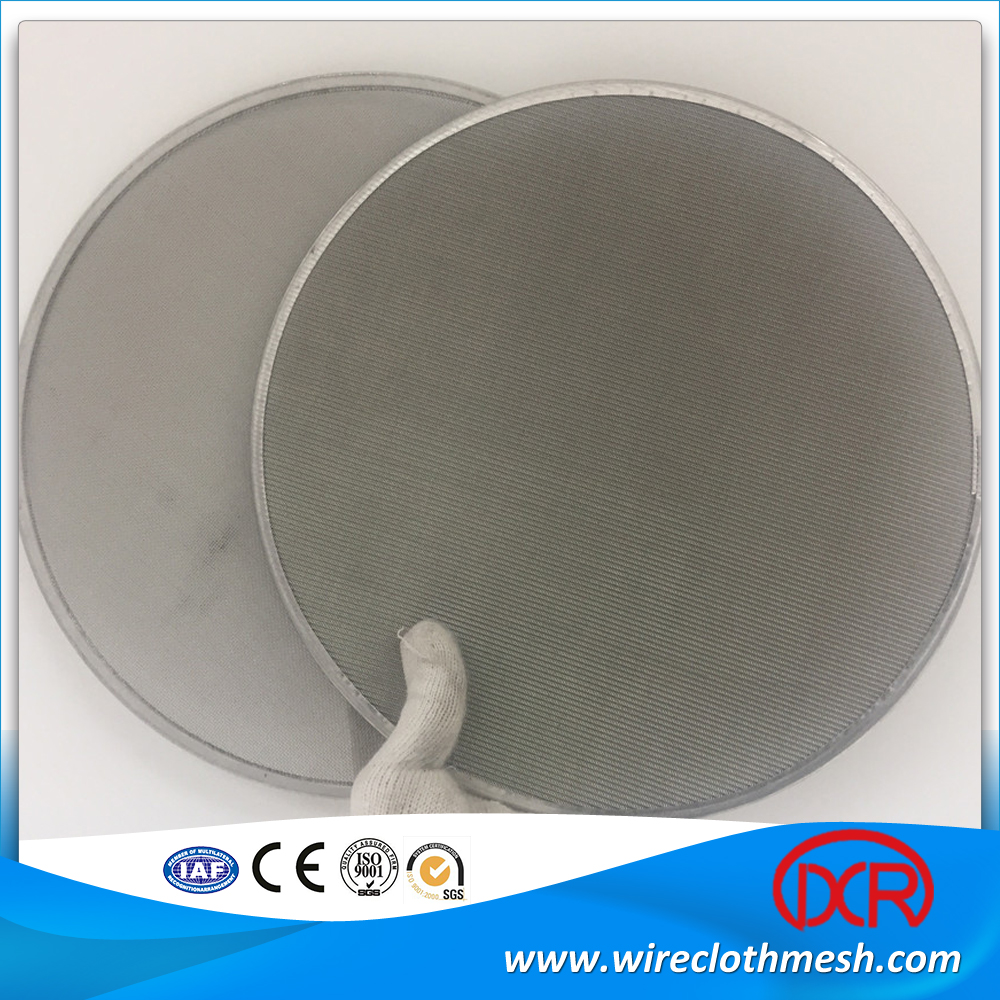

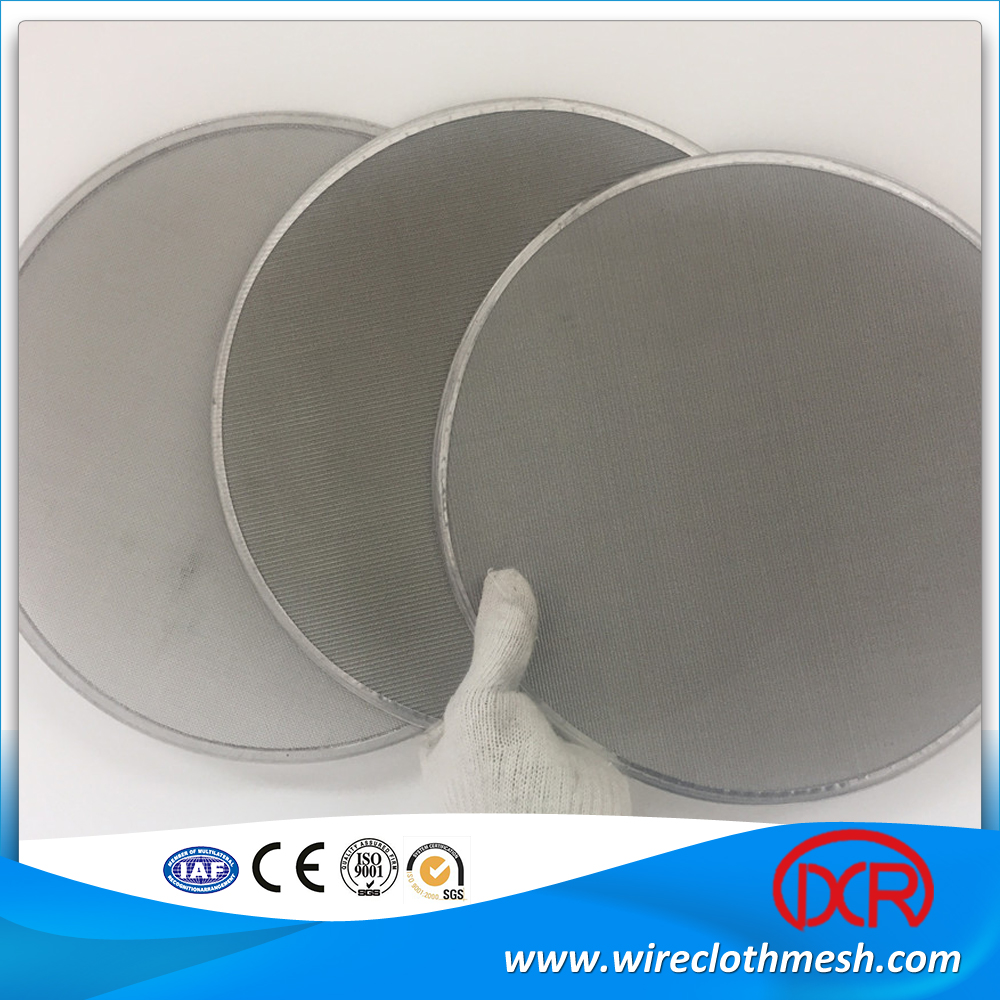

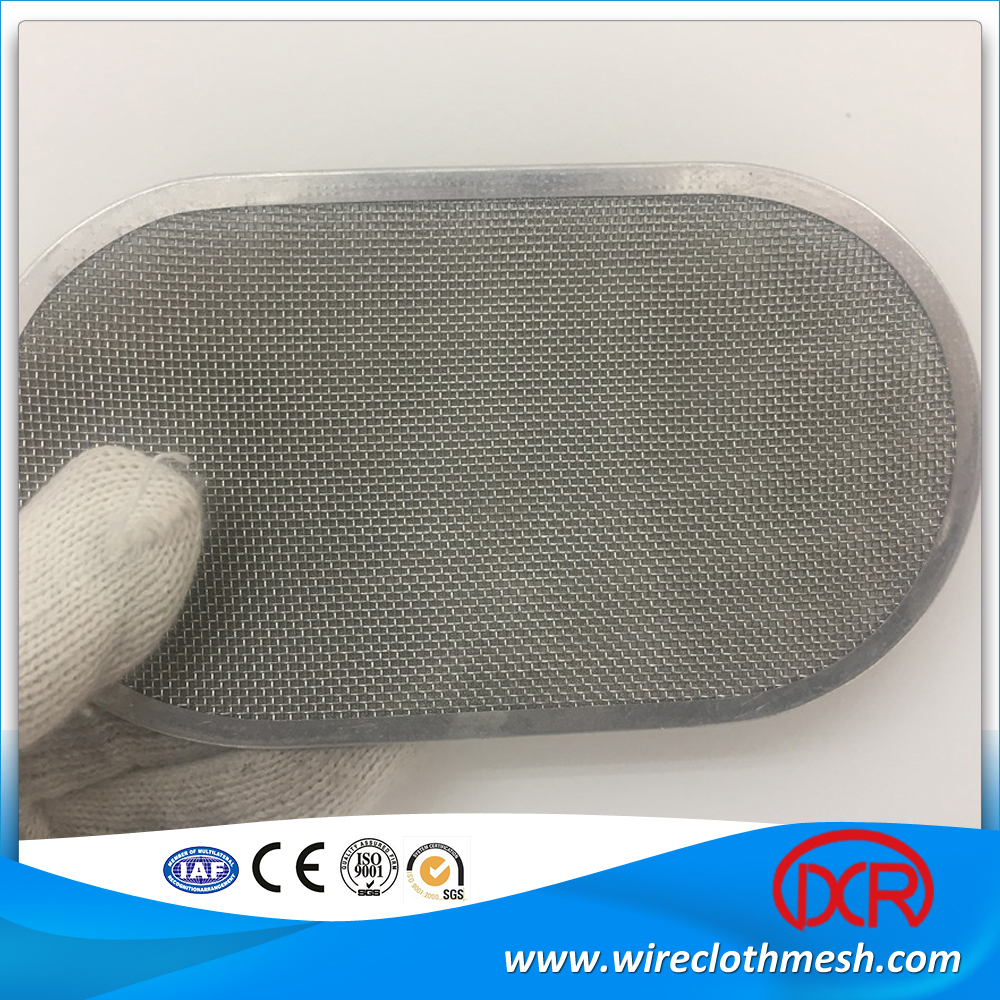

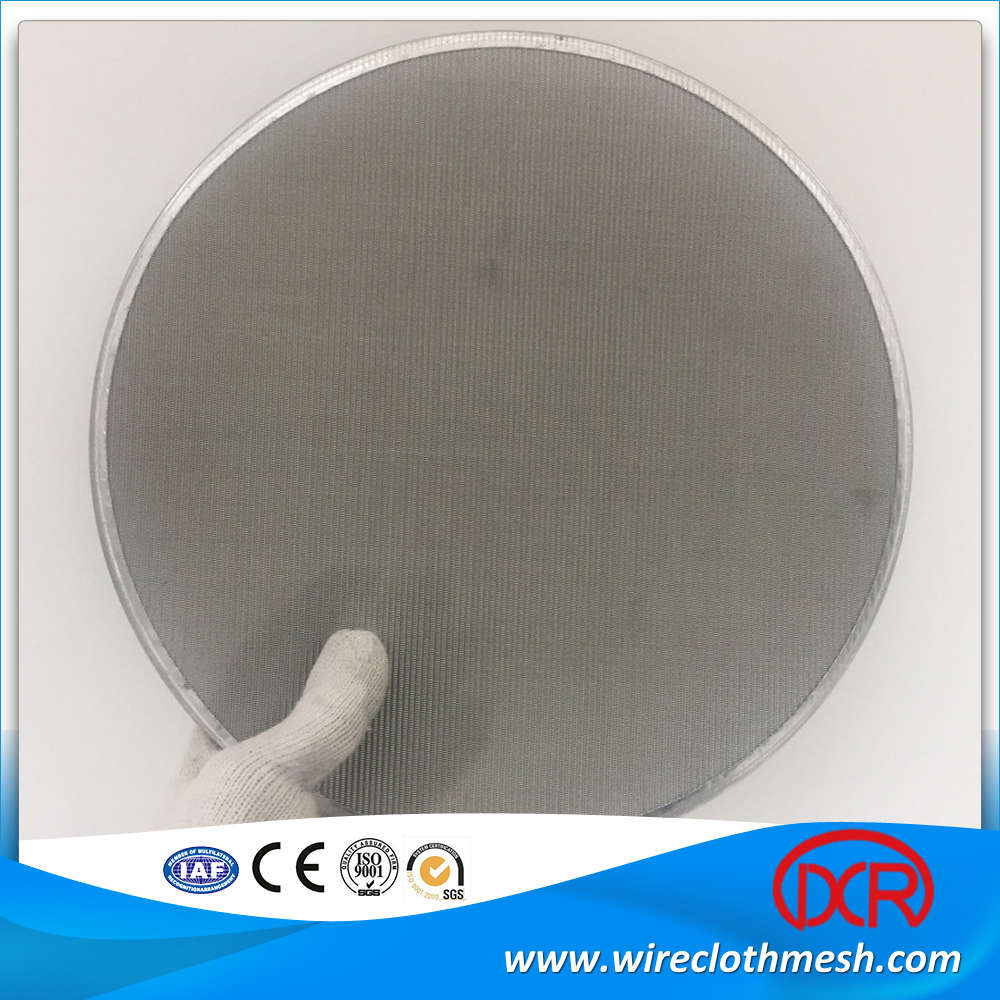

200 Micron Screen Filter Disc Mesh

Product Shape

rectangle,square,round,oval,circular,rectangular,cap,waist and abnormity



Structure

Single layer,double layer and multi-layers



Process Technique

spot welded,edge covering and sintered



Material

stainless steel mesh,galvanized wire mesh,copper wire mesh,dutch weave wire mesh,black wire mesh,perforated metal mesh etc.



Edge Material

stainless steel sheet,copper sheet,galvanized sheet,aluminum sheet,rubber ect



Out diameter

usually 5-600mm



Application

Wire mesh filter disc is mainly used in distillation, absorption, evaporation and filtration process of rubber, plastic industry, the screening of grain and oil, petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipbuilding and other industries. Wire mesh filter disc also can be used as air filter for car.

Specification List of Smoking Pipe Screen
Mesh/Inch	Wire Gauge(SWG)	Aperture in mm
30mesh x 30mesh	34	0.61
40mesh x 40mesh	36	0.44
50mesh x 50mesh	38	0.36
60mesh x 60mesh	40	0.3
80mesh x 80mesh	42	0.21
100mesh x 100mesh	44	0.172
120mesh x 120mesh	44	0.13
150mesh x 150mesh	46	0.108
160mesh x 160mesh	46	0.097
180mesh x 180mesh	47	0.09
200mesh x 200mesh	47	0.077
250mesh x 250mesh	48	0.061
280mesh x 280mesh	49	0.06
300mesh x 300mesh	49	0.054
350mesh x 350mesh	49	0.042
400mesh x 400mesh	50	0.0385

Features

• Our meshes mainly include wide range of fine products,including SS wire mesh for oil sand control screen,paper-making ss wire mesh,ss dutch weave filter cloth,wire mesh for battery,nickel wire mesh,bolting cloth,etc.
• It also includes normal size woven wire mesh of stainless steel.
• Mesh range for ss wire mesh is from 1mesh to 2800mesh,wire diameter between 0.02mm to 8mm is available;the width can reach 6m.
