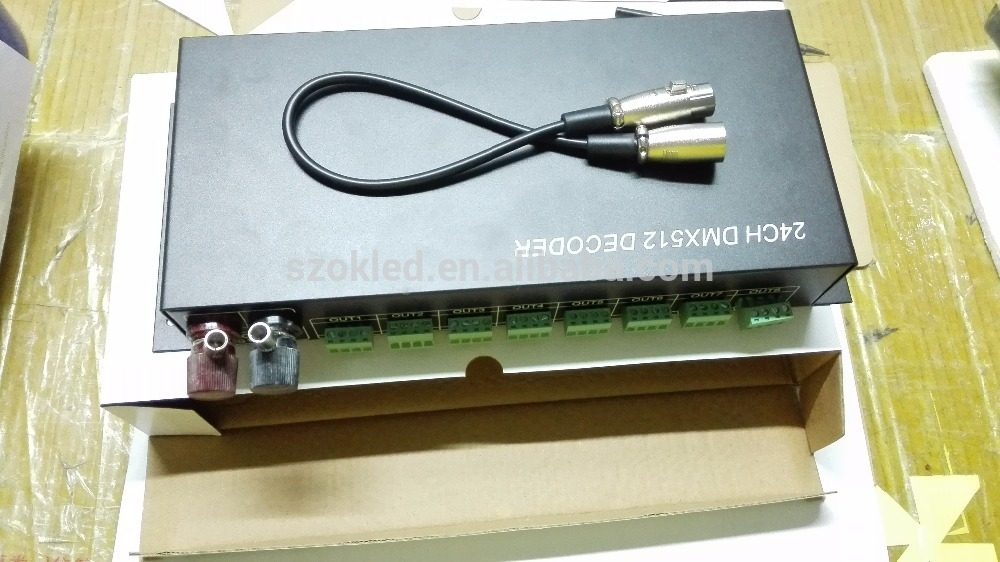

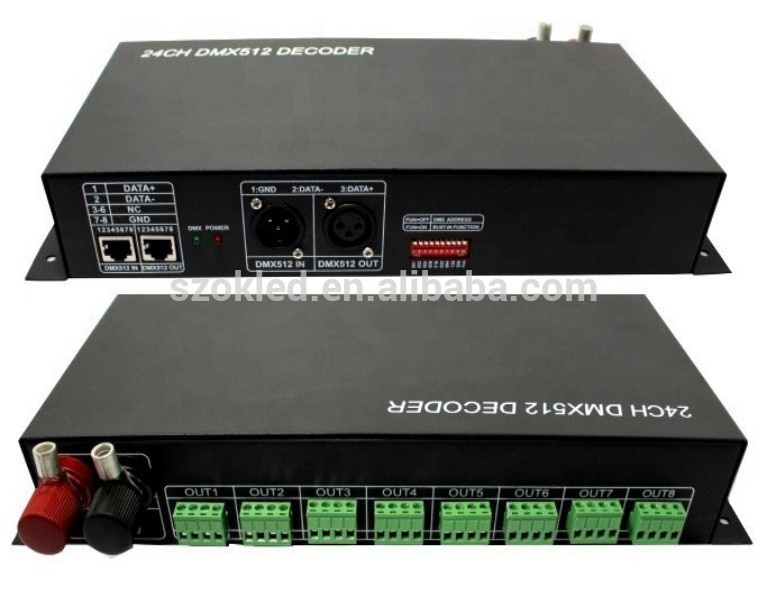

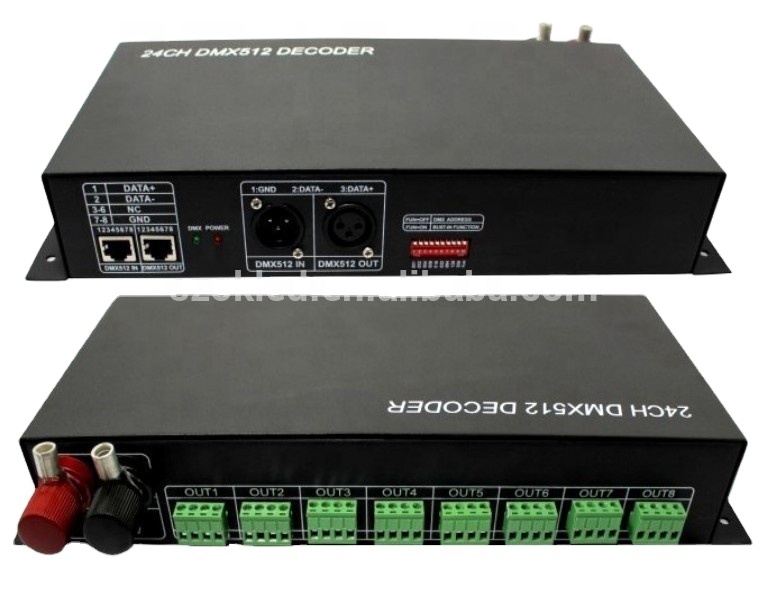

24 Channels Constant Controller

LN-DMXTCON-24CH-LV

?

The decoder adopt the advanced micro-computer control technology and converted the DMX512 digital signal widely used in international to the analog control signal. 1~24 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

?

Technical Parameters

1. Work temperature: 0-60°C

2. Supply voltage: DC, +12~24V

3. External dimension: 340*142*57 mm

4. Packing size: 350*180*65 mm

5. Net weight: 1.5kg ? ? ? ? ? ?

6. Gross weight: 1.6kg

7. Decoding channel: at most 24 channel ? ? ? ?

8. Connection mode: can choose common anode, common cathode

9. No-load current consumption: <0.25A(12V);<0.30A(24V)

10. Control signal input: DMX-512 standard digital control signals

11. Output signal:0~24V at most,3A isolation driver output

12. Output power:12V:<864W, 24V:<1728W

?

?

External Dimension

?

Direction for use

?

DMX address code settings

When no DMX signal access, the default power-on LED displays "S -", press the "Menu" button, will display the current DMX address code.Press Up or Down modify the DMX address code (001-512).

?

Static color choices

DMX address code changes in the mode, press the Menu button again, select the items that enter the static mode.A total of 20 static mode, label from C01-C20, can be Up or Down switch.

?

Gradient mode selection

Static mode, press the Menu button to select the items that enter the gradient mode.A total of 9 gradient mode, label from the F01-F09, through the Up or Down keys to switch.In this mode, press the Menu button for 3 seconds long, gradual speed changes into the state.Speed grade gradient was the fastest from the 01 ~ 99,01, 99, was the slowest.Press the Menu button again to confirm the changes and return.

?

DMX mode selection

When the digital display "S -", press the Up or Down button to select the appropriate DMX mode (S1x, S2x, S3x independent, Sx0 and Sx1 two opposites, the two can only be one), press the Menu button confirm and exit.DMX DMX signal when there are lights flashing access, DMX signal is off (or switch signal line is allocated to the host state), lights out.

?

S10: PORT with console ports of all lamps on the overall control (power-on default state).
S11: PROT console port on different light on the independent control.

?

Example: while select S30 mode (master off) and S20 models, and address code is 1, select the S10 model, the control station 1 to 3 channel RGB control of all ports PORT dimming.If you choose to S11, are 1 to 3 channel control RGB dimming port PORT1, 4 to 6 channel dimmer control PORT2 port RGB, and so on.

?

S20: RGB 3-channel dimmer (power-on default state).
S21: In this mode all the way out, DMX console to take 5 channels.If the address code is 1, then 1 to 3 channels for the RGB independent dimming, the fourth channel is the overall dimming RGB, 5-channel control the rate of change in tone color strobe.

?

S30: Master Off (power-on default state).Select the state, it can receive DMX signals.
S31: Master Open.Select the state, DMX control is turned off, the controller is disabled to receive DMX signals.While "Master" lights on.

?

?
