1 / 3
Basic Info
| Model No. | FD-160H-038 |
|---|---|
| Brand Name | FAHOLD |
| Output Type | Single |
| Warranty | >2 Years |
| Output Power | 101 - 200W |
| Input Voltage | Full Range |
| Connection Mode | Parallel Switching Power Supply |
Product description
Details

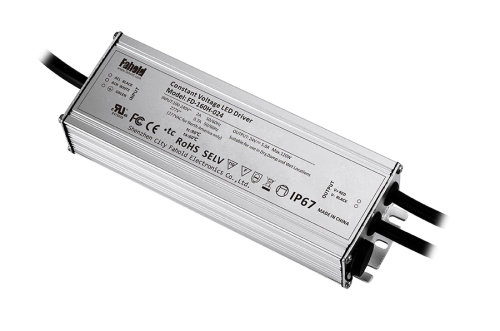

FD-160H-038, is made for LED Street lighting applications to operate general outdoor Lighting Solution. Constant voltage Flicker free 0-10V/PWM/RX dimming, with wattage range of 80W , wide voltage output of IP67 waterproof design with UL,FCC,CE certifications. The units is fit for LED Street lights & Canopy lights. Other standard features of the range including 100-277V , protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.
Standard features of the LED lighting driver includes short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV, EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547 and so on.
Product Specs:
Output voltage:38V
Max. Output wattage: 160W
Max. Output Current: 5000mA
Dimensions:216x66x38mm
Efficiency:93%
Electronic Led Dimmer
Encironment/IP Rating: outdoor/IP67
Flicker free
Max. Input voltage:277V
Certificate:UL,FCC,CE
