The antenna can be mounted on the roof of a vehicle or fixed structure.

The antenna meets or exceeds a variety of environmental ruggedization specifications for transportation applications.

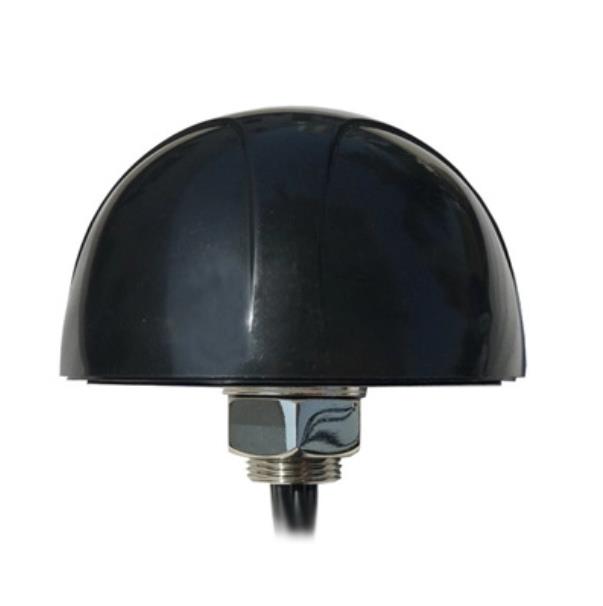

This antenna is an omni-directional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications.

The cables are low loss allowing for lengths of up to 10 meters , critical for buses, trains and other commercial transport applications.

Specification of 3 in 1 Screw-Mount 4G/3G/2G/WiFi/L1/L5 Antenna MIMO LTE

Electrical
GPS Part: Dielectric Antenna
Frequency Range 1575.42MHz±3 MHz/1602-1610MHz
Polarization Type RHCP
Gain 5dBi
V.S.W.R <2.0
Impedance 50?
LNA
LNA Gain 28±2dB Typical
Noise Figure 1.5dB
Ex-band Attenuation 12dB@CF+50MHz/16dB@CF-50MHz
V.S.W.R ＜2.0
Voltage 2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
Current Consumption(mA) 11 Max
Impedance 50?
DC current 5-15mA
WIFI Part: Frequency range 2400-2500MHz, 4900-5850MHz
V.S.W.R ＜2.0
Gain 6/8dBi
Polarization Linear
Impendance 50Ω
LTE Part: Frequency range 698-960MHz, 1710-2170MHz, 2300-2700MHz
V.S.W.R 3Max
Gain 3/5/6/7dBi
Polarization Vertical
Impendance 50Ω
Mechanical
Housing Black
Cable GPS:RG174   LTE&WIFI:RG58
Length 3m standard, fully customizable
Connector SMA(M) standard, fully customizable
Environmental
Operation Temperature -40℃~+85℃
Humidity 65%-95%RH
Waterproof IP67
Antenna Radome Material ABS
Mount way Screw
Antenna Dimension Ф143.5×80mm
Weight 1.2KG
RoHS Compliant YES

Now the price of 4gx mimo antenna is reasonable, if you have needs to buy 4g lte mimo outdoor antenna and 4g lte mimo indoor antenna, please contact us.
