Brief Introduction:
This machine is computer control. And just can done the test with the constant speed loading. It is can used just after made the machine smoothly and level. It is mainly used for rock, concrete, cement products, hollow bricks, fly ash bricks, refractory materials, engineering materials, stone, rubber bearing compressive strength test and other building materials.
It is a necessary testing machine for the highway, railways, bridge, building materials and other laboratory.

Features:
1> The machine uses precision sensors and computer control, can storage, access and print the test report automatically.
2> The machine uses rotary screw to adjust the compression space, it is greatly accelerate the progress of the trial.
3> The machine can design the report format according to unit requirements.
Technical specifications:

Max. Test force	3000 KN
Compression test space	400mm
Accuracy for the test force	≤±1%
Compression flat size	370mm*370mm
Piston stroke	50mm
Distance between Columns	330mm
Working temperature	5℃-35℃
Overload protection	ultra-full 2% of the scale
Motor power	750W
Working power	230V 50HZ
Weight	1800kgs
Dimension	900mm×500mm×1500mm

Standard delivery:

1> Frame           1

2> Cabinet         1

3> software         1

4> Computer         1

5> printer            1

6> Power and control lines      1

7> User manual               1

8> Computer             1

9> Printer               1

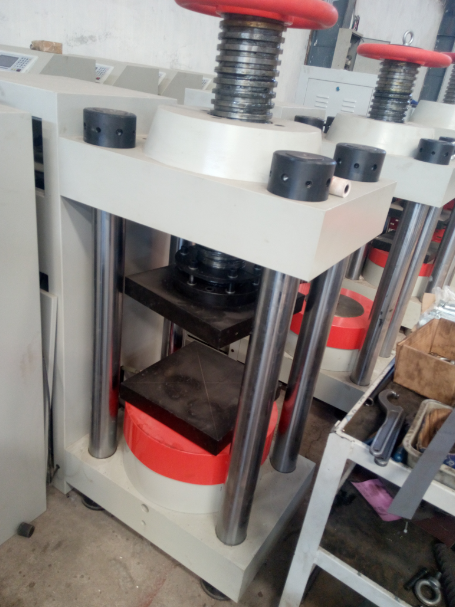

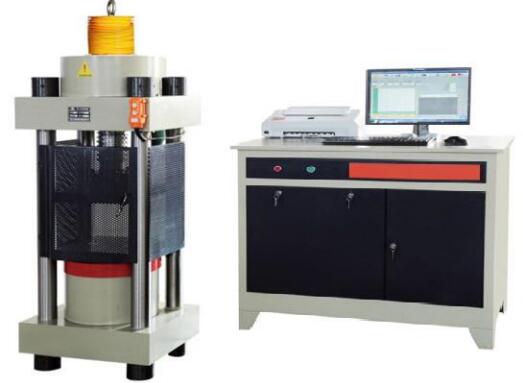

Machine Photo:
