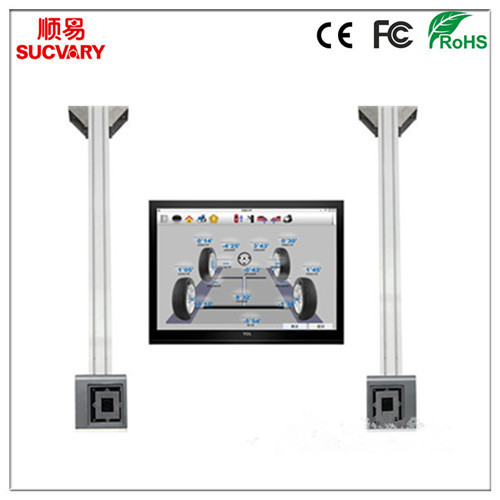

3D wheel alignment system supply is for scissors lift wheel alignment. This 3D wheel alignment can be installed from ceiling and does not need a beam to hold two sensor boxes. 3D wheel alignment system supply does not need to be calibrate regularly. 3D wheel alignment system supply is one time calibrate in factory for a life time.

Advantages of 3D Wheel Alignment System Supply:

1.  DIY 3D wheel alignment can save space with different installation patterns.

2.   Cloud 3D wheel alignment has 3 cameras, the reference plane is car body, so  Cloud 3D wheel alignment can measure almost all kinds of vehicles.

3.   Cloud 3D wheel alignment supports varied operation platforms, point to point transmission by WiFi can shied interference.

4.   Supported by powerful cloud service,

Wifi Wheel Alignment

can connect to IPAD, cell phone, computer and the Internet, supporting remote shunting operation and data upgrade.

5.   Four targets are crash resistant and can be exchanged. Fix wheel  claws without taking apart wheel hub cover.

6.    Measurement range is wide, and 3 cameras Wheel Alignment can also test wheel deviation besides all traditional parameters.

7.   The optional one point wheel clamps can be installed within four seconds.





Measurement range and accuracy of 3D Wheel Alignment System Supply

References	Accuracy	Measurement range
Camber	±0.01°	±8°
Caster	±0.03°	±19°
K.P.I	±0.02°	±19°
Toe	±0.01°	±2°
Rear Wheel Thrust Angle	±0.02°	±2°
Rear Axle Deviation	±0.02°	±2°
Track width difference	±0.02°	±2°
Front Setback	±0.02°	±2°
Rear Setback	±0.02°	±2°
Track width	±0.64cm	＜265cm
Wheelbase	±0.64cm	＜533cm

3D Wheel Alignment System Supply Installation Without  Calibration



Case of 3D Wheel Alignment System Supply:
