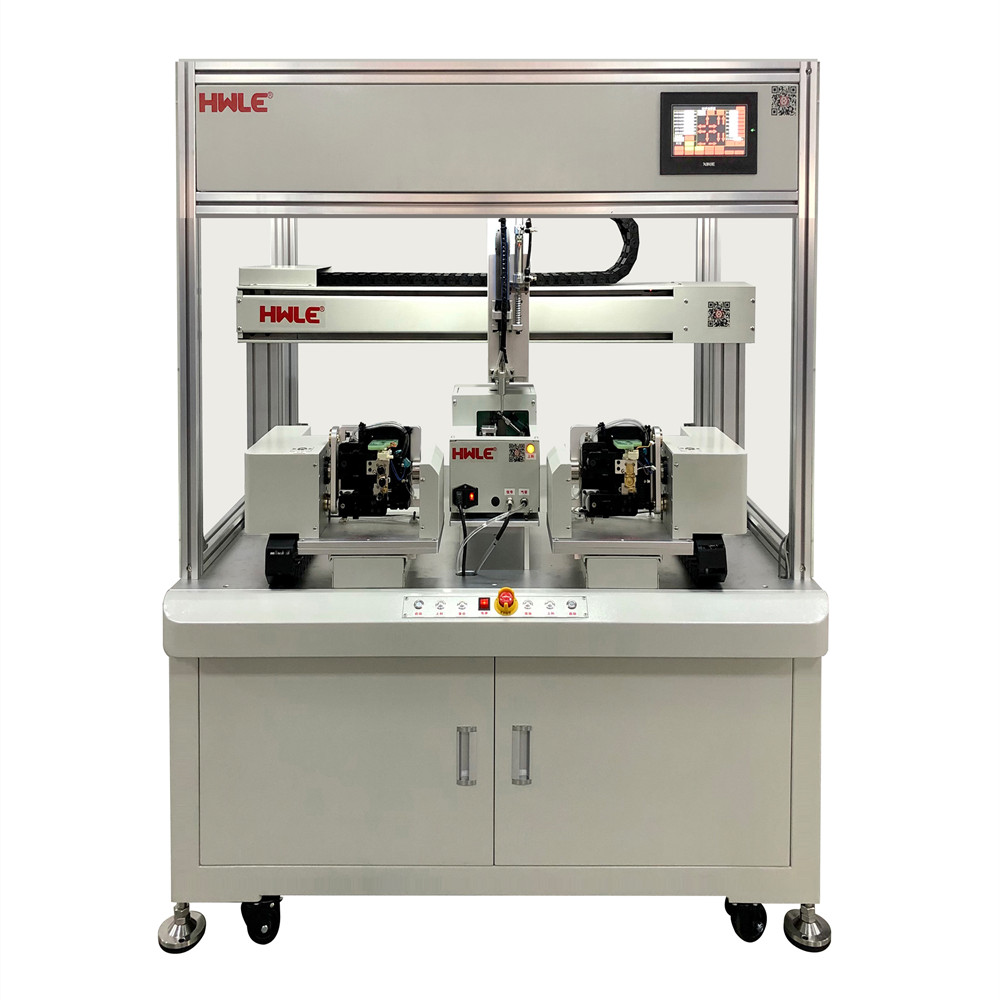

4-axis Robot Automatic Lock Screw Machine

$6800.00 ~ $10800.00 / Set/Sets

Get Latest Price

You might also like

Linear Pneumatic Automatic Six-axis Screw Tightening Machine

1 Set/Sets (MOQ)

Six-axis Automatic Screw And Washer Assembling Machine

1 Set/Sets (MOQ)

Automatic Screw Locking Machine For Smartphone Assemblying

1 Set/Sets (MOQ)

CE Robotic Standard Automatic Locking Screw Machine

1 Set/Sets (MOQ)

Robot Automatic Screw Locking Machine Guangdong

1 Set/Sets (MOQ)

Robot Automatic Multi Function Locking Screw Machine

1 Set/Sets (MOQ)

Huizhou Automatic Screw Fastener Robot

1 Set/Sets (MOQ)

Automatic Robotic Screw Machine For Wooden

1 Set/Sets (MOQ)

3-axis Automatic Intelligent Robot Screw Machine

1 Set/Sets (MOQ)

High Precision Robot Fully Automatic Screw Tight Machine

$6800.00

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name	HWLE
Applicable industry	Manufacturing Plant
Out-of-warranty service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Video factory inspection	Provided
Mechanical test report	Provided
Core component warranty period	1 Year
Core components	Plc, Motor, Pressure Vessel
Function 1	Automatic locking screws, nuts, sleeves, rivets
Screwdriver	Electric screwdriver; Servo screwdriver
Tightening speed	1.5-2.5s/screw
Stuck rate	Less than 0.1%
Running accuracy	1000mm/sec ±0.02mm/axis
Control method	PLC+HMI Industrial computer +Display
Suitable products	At least 20 groups
place of origin	China
status	New
Function 2	Automatic assembling gaskets, washers
Integrated function	MES+CCD; Torque detection + Sliding teeth + floating lock + leak lock alarm and prompt

Parameters of Automatic Locking Screw Machine RFQ

Product description

The Features of Automatic Lock Screw Machine
1. The Robot Automatic Lock Screw Machine is mainly composed of automatic screw feeder, XYZ coordinate axis, screw locking mechanism and electrical control system etc. So it is also know as coordinate automatic screw tighten machine.
2. If use the automatic screw fastening machine, when changing the product, you can directly replace the jig and switch to the corresponding program to start production, at least suitable for 20 group of products with same screws.
3. The time for a single screw locking is about 1.5s-2.5s if use the robot automatic locking screw machine.
4. The automatic 4-axis robot automatic lock screw machine has two tightening stations, can work continuously and stably, with low failure rate, and adapt to the needs of large-scale production.
4 Axis Automatic Rotation Screw Locking Machine

Parameters of Automatic Locking Screw Machine

The Parameters Of Servo Automatic Locking Screw Machine
Applicable specifications: M1.0-20mm, L2.0-90mm
Tightening: Screws, nuts, sleeves, rivets, plugs, gask

RFQ

1. Can all screws be locked and paid by automatic screwing machine?
Conventional cross-recessed screws, slotted screws, compo
