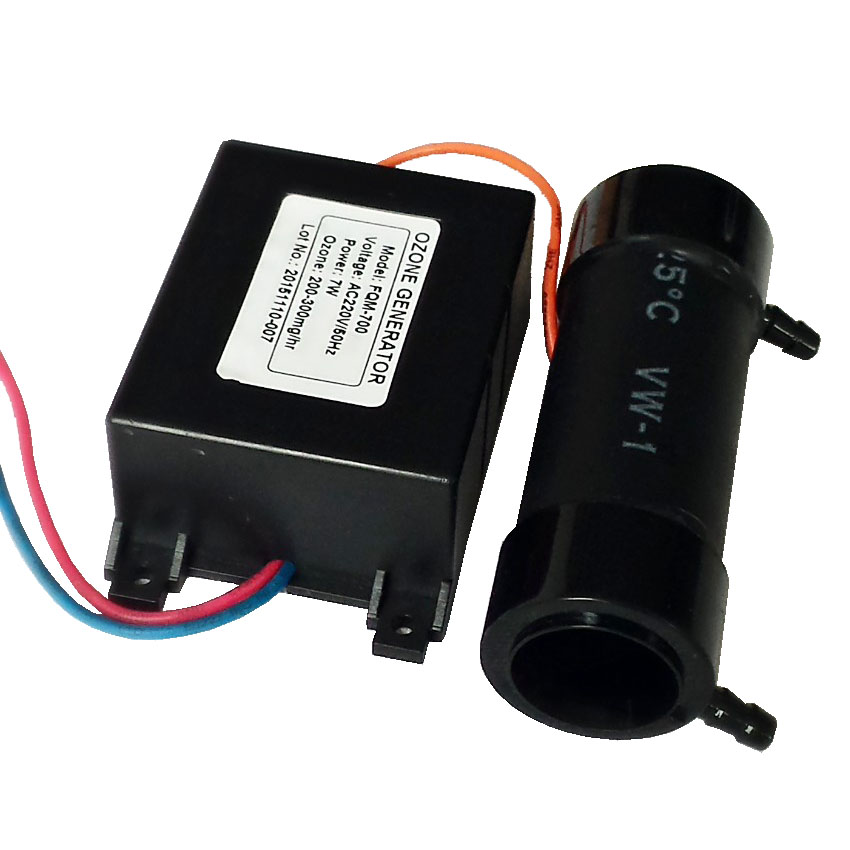

400mg Household Generator Ozone Air Purifier Sterilizing Cabinet Ozone Disinfection Cabinet FQM-700 ?

The FQM-series of ?ozone generator cells use ozone core discharge of invention patent, including the fission design of ozone generator tube and ozone driving circuit, they can provide stable and efficient ozone output, easy to install and maintain.

?

?

Ozone?Output:	200-400mg/hr@air
External?gas?source:	1-5L/min?@air,0.5-2L/min@oxygen
Generating?Method:	Ozone tube
Electrical:	AC220V-AC110V,7W
Outlet?Connection:	6mm?pagoda?joint
Case:	Plastic
Accessories:	Hose+Air?stone(another?purchase)

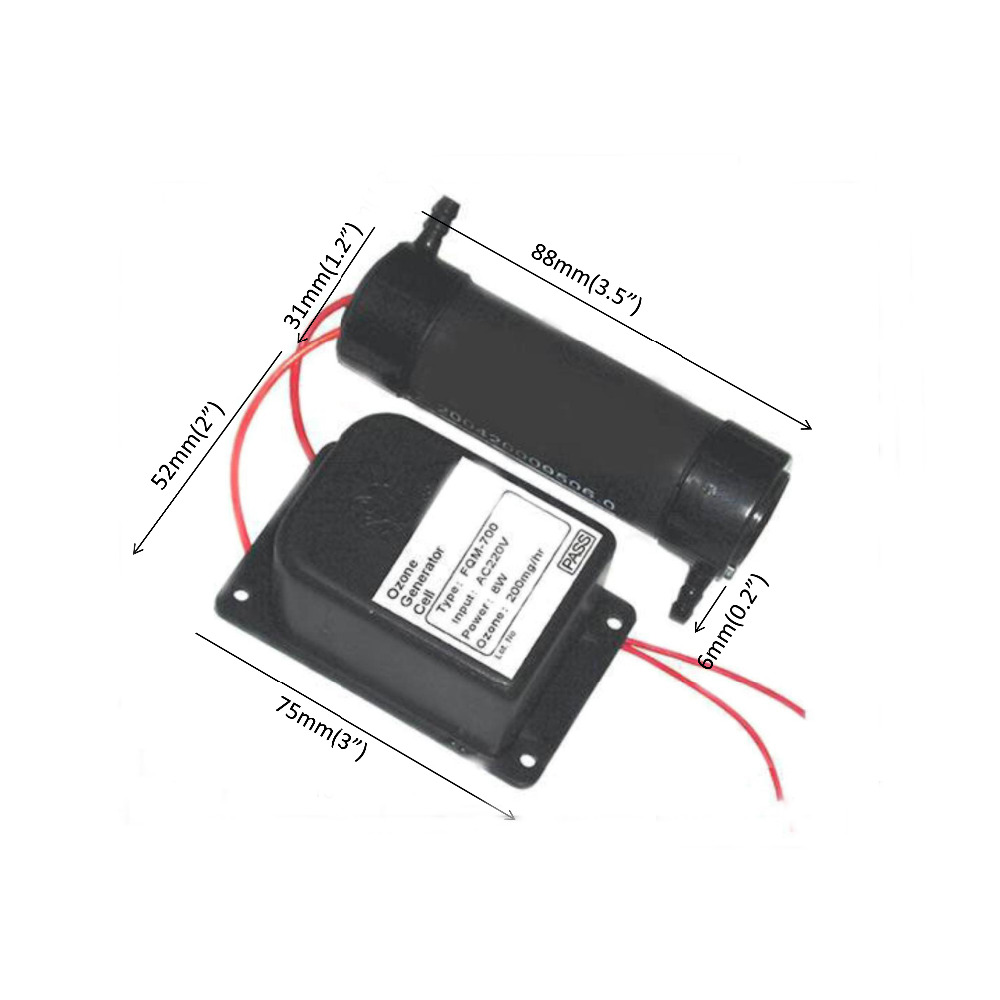

Dimension(L×W×H):	2.5*2.0*1.4?in?(63×52×35?mm)?1.6*1.5*3.5in(40*38*88mm)
Installation?Dim:	6.1*1.2?in?(156*30mm)?5.2in(132mm)

?

?

Benefit

• Eliminates odors
• Freshens stale air
• Destroys airborne microbes
• Drinking water purification
• Safe, quiet and energy efficient
• Easy to maintain
• Patent pending

?

?

Feature

• Invention patent ZL200410079317.5
• Widely used in large quantities
• Reliable quality
• Stable& efficient output
• Low noise
• Long working life

?

?

Application

• Washing machine, dishwasher, water machine, water purification machines;
• coin-operated sale water, fruit and vegetable detoxification machines, aquatic animals;
• The spa machine, surfing bathtub, slimmer.Medical apparatus and instruments;
• Air purifier, disinfection cabinet,?refrigerator, dryer, shoe ark;?
• Wardrobe, beauty equipment, oxygen machine,?toilet, incubator, car.

?

?

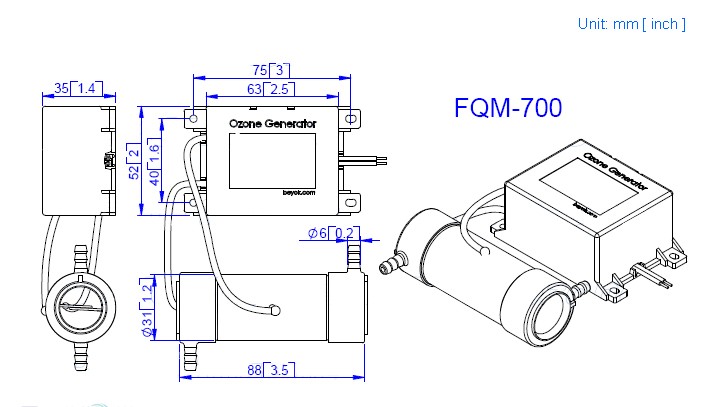

SIZE

?

?

?

?

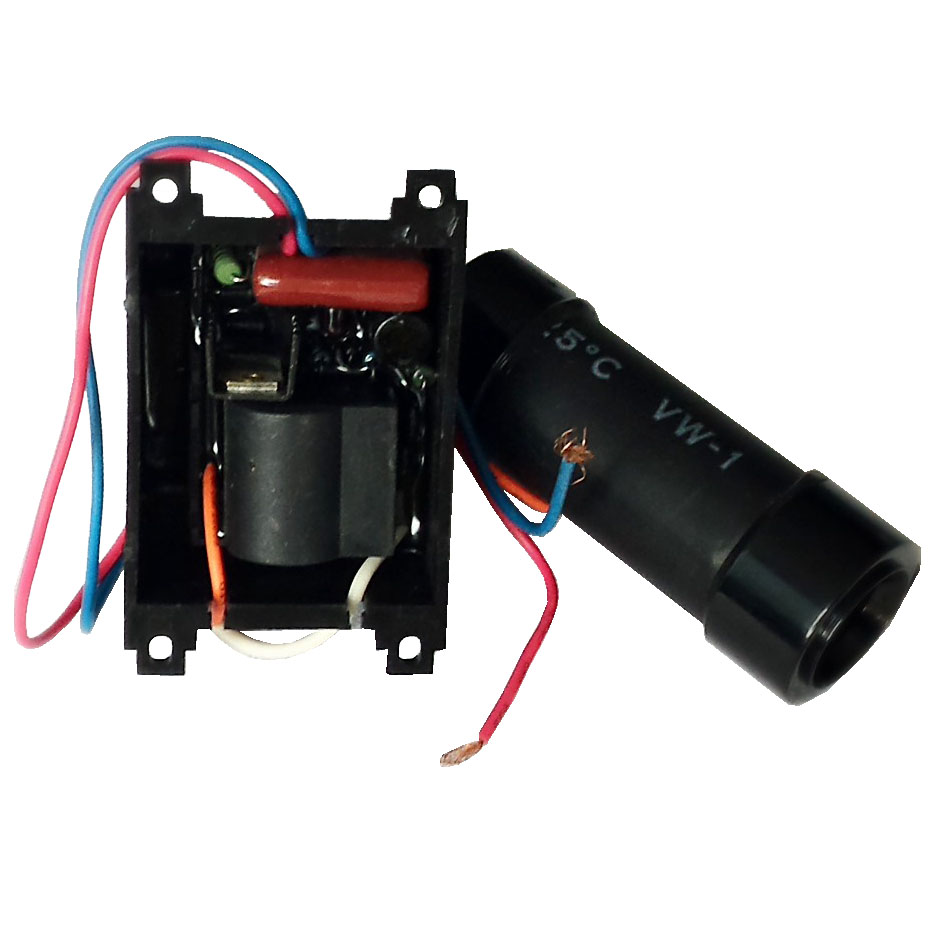

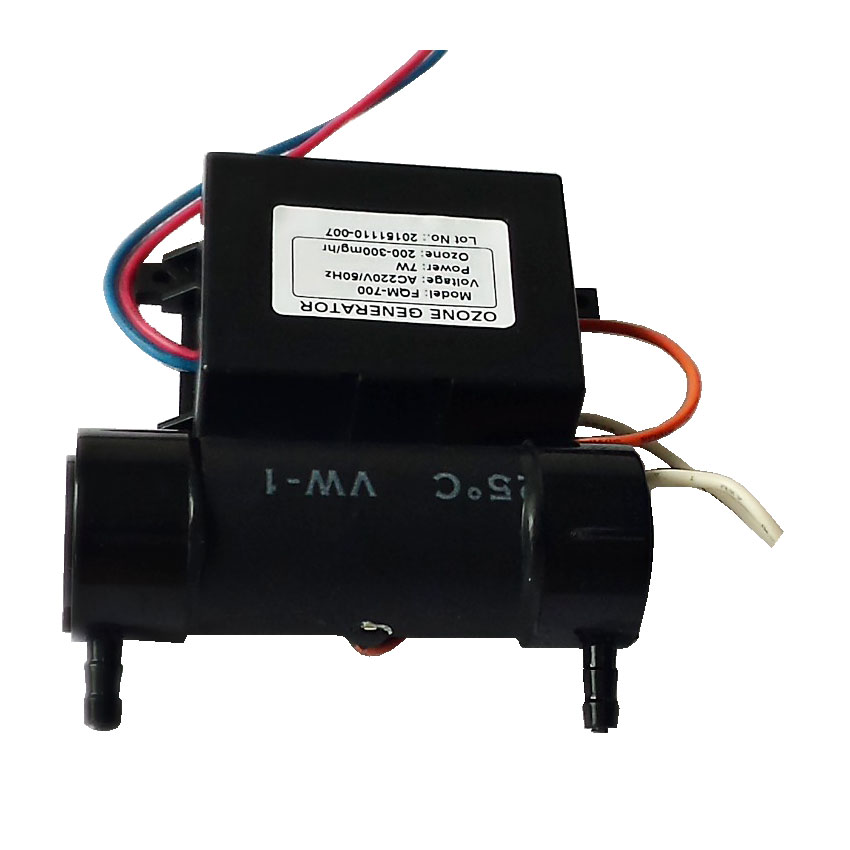

Picture display

?

?
