APM Technologies is programmable power supply manufacturer, latest DC power supply system cover from 80V to 2250V. Power range is extendable to 180KW for single cabinet. Custom master slave system could extend to 576KW via master-slave configuration. APM technologies product line includes programmable Power Supplies. AC Power Supplies, DC Electronic load and coming new DC power supplies. Kindly check below electronic load introduction:

Connecting the cabinet

1. The cabinets can be connected in parallel in order to increase output power.

◆ Maximum 16 units 3U height same model DC power supplies or 6U height same model DC power supplies can be connected via the bus.

◆ 16 units each with a power of 18kW are connected together to a 288kW system.

◆ 16 units each with a power of 36kW are connected together to a 576kW system.

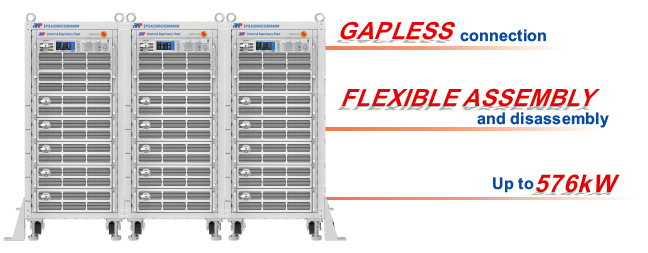

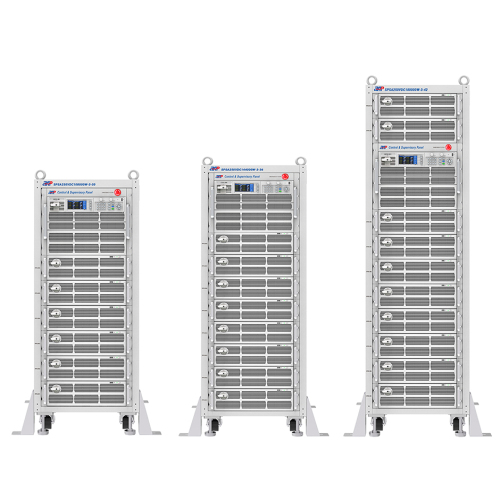

2. Different height cabinets can be connected in parallel.

◆ Use parallel bars to simplify the connection between multiple rack cabinets.

◆ Realized the gapless connection between multiple rack cabinets.

---

System

Master-slave system configuration page.

---

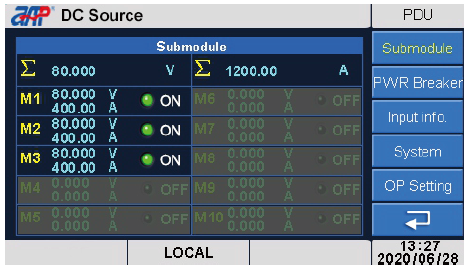

Submodule

DC output parameters reading page.

---

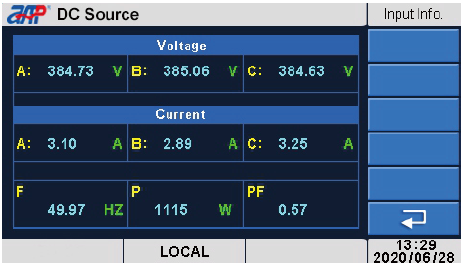

Input Info.

AC input parameters measurement page.

---

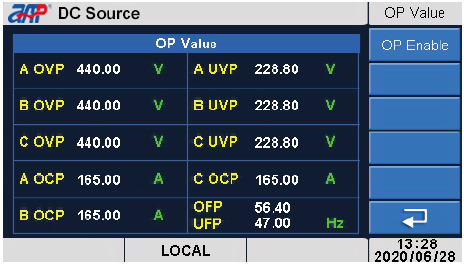

OP Value

AC input protection parameters setting page.
