60GHz Integrated Algorithm Ranging Module V-LD1: A High-Precision Solution for Liquid Level and Gauge Field Measurement
$99.00
≥1 piece
$89.00
≥100 piece
$79.00
≥1000 piece
Options:
- V-LD1
Basic Info
| Type | Millimeter wave radar sensor |
|---|---|
| Series | Millimeter wave radar sensor |
| Features | Distance measurement and velocity measurement |
| Mounting Type | radar sensor |
| Description | Millimeter wave integrated radar, Millimeter wave radar sensor |
Product description

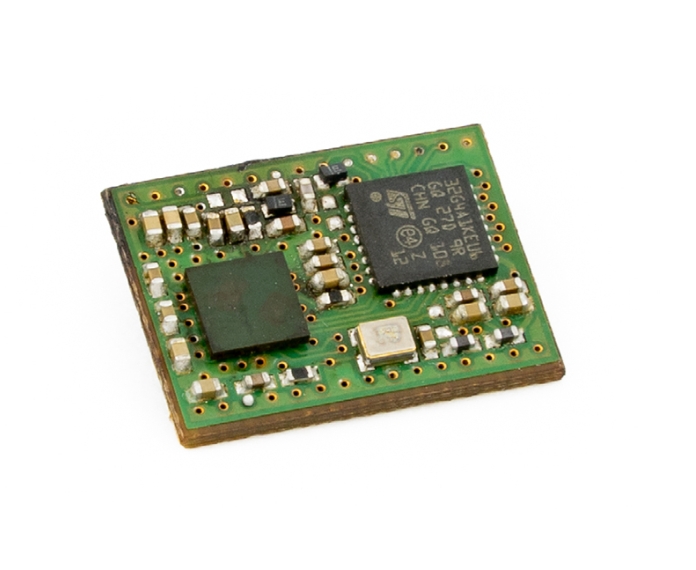

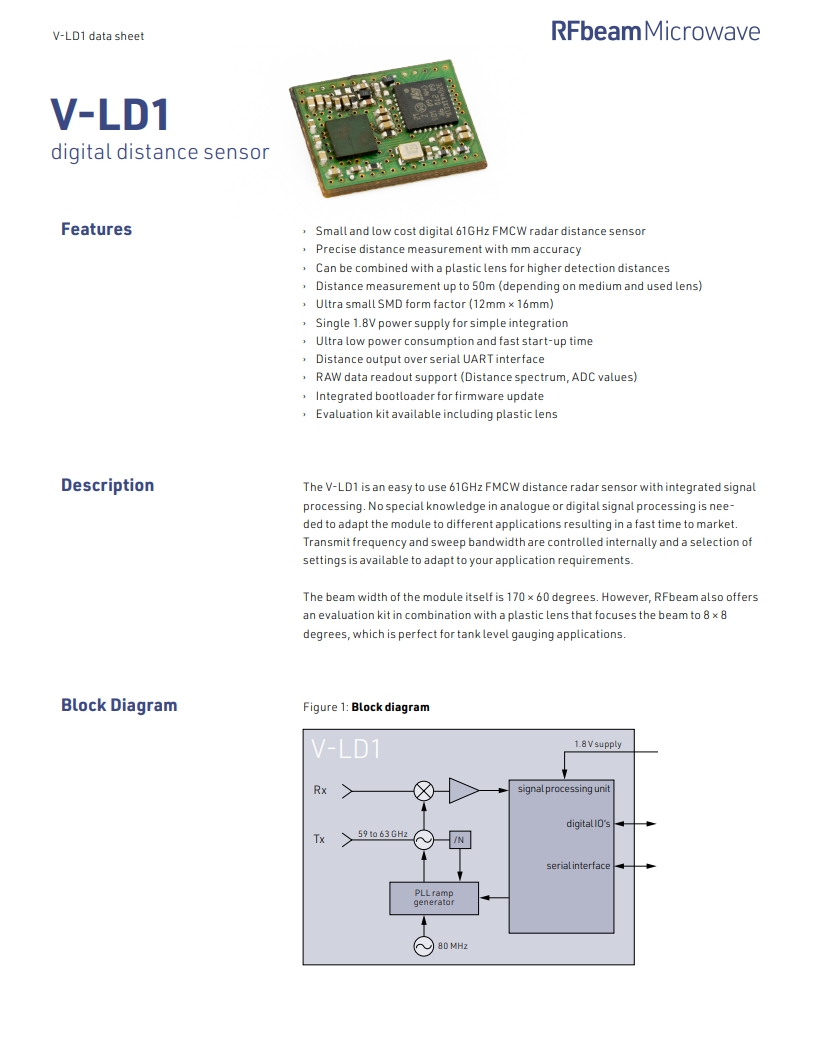

Rfbeam has launched a 60GHz integrated algorithm ranging module V-LD1, which is mainly used in the field of level and level meters, up to 50 meters
? Small low-cost digital 61GHz FMCW radar range sensor
? Accurate distance measurement with an accuracy of millimeters
? Can be used in combination with plastic lenses to achieve higher detection distances
? Distance measurements up to 50m (depending on medium and lens used)

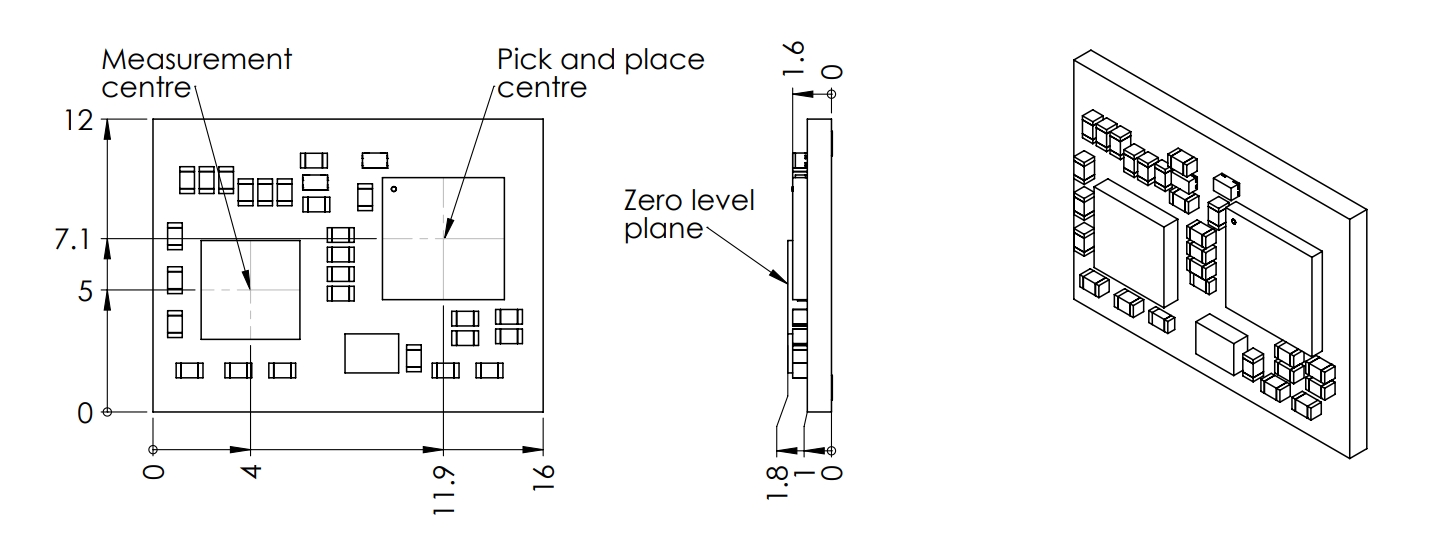

? Subminiature SMD Dimensions (12mm x 16mm)
? Single 1.8V power supply for simple integration
? Ultra-low power consumption and fast startup time
? Output distance via serial UART interface
?RAW data readout support (range spectrum, ADC value)
? Integrated boot loader for firmware updates

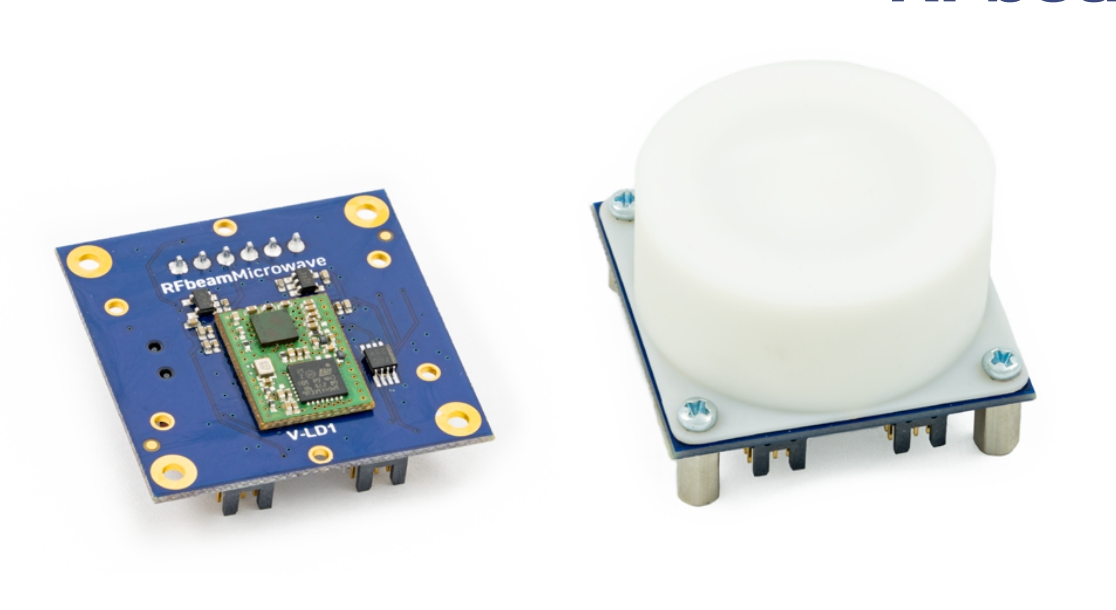

? Provide evaluation kits, including plastic lenses
?
