Details

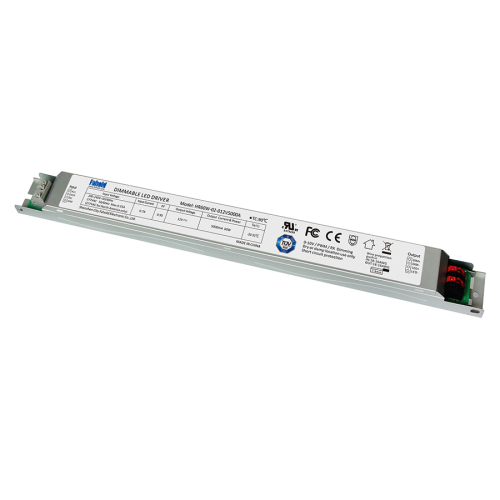

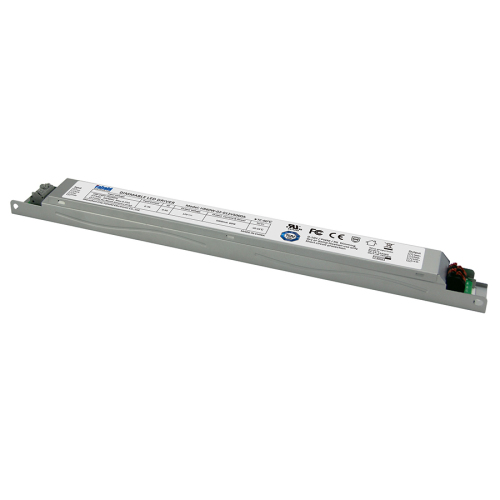

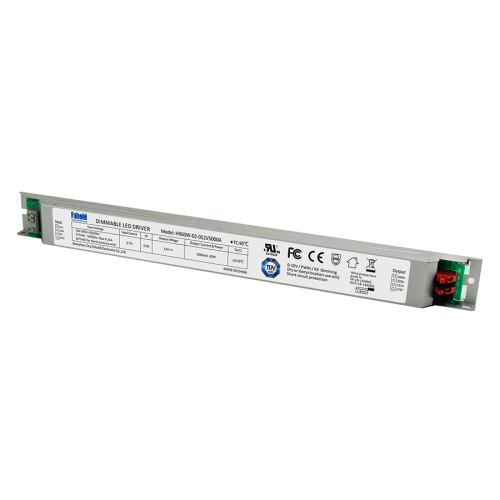

HR60W-02-12, designed specifically for indoor use and commercial applications(Linear light, linear high bay,troffer, track light), to operate general Linear Lighting Fixtures. Flicker free 0-10V dimming LED Driver 60W 5000mA(High efficiency linear driver), with wattage range of 60W ,UL,FCC,CE compliant, wide voltage output of non waterproof design. The units are suitable for Linear lighting. Other standard features of the range including 100-277V , protections against short circuit, over load and thermal to 110 °C, across the whole surface of the unit.

Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet TUV,  EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547.

Features & Benefits

· High PFC

· Long slim shape

  UL listed power led driver

· Single channel output, output current level selectable.

· Wide range of input voltage 100VAC ~ 277VAC

· High efficiency up to 90%

· Built-in active PFC function

· 100% output  dimming signal input, can be used as normal power supply

· Protections: Short circuit,over load, over voltage & over temperature protections

· Suitable for indoor LED lighting application

•  OEM & ODM are welcome.
•   Sample fee: negotiable, sample can be supplied in 5 days.
•   High quality, complete kinds, good stability, strong practicability.
•   Good after-sales service & point to point technical supports.
•   Energy saving, long using life.
•  Compatible with systems of Crestron, Philips, Osram, Lutron, Dynalite, Clipsal, LDS, ABB, Schneider, Leviton, JUNG, Berker, Be Lichtregler, etc.
•   Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.

Product Specs:

Output voltage:12V

Max. Output wattage: 60W

Max. Output Current: 5000mA

Dimensions:346x30x20mm

Efficiency:88%

Electronic Led Dimmer

Encironment/IP Rating: indoor/IP20

Flicker free

Max. Input voltage:277V

Certificate:UL,FCC,CE



H60W-02-12, Linear Led Constant Voltage Driver, Flicker free 0-10V dimming, linear lighting solutions, Desigen for high lumen Linear lights, linear high bays.  Energy saving driver. Its housing was made out of Iron,  independent design for the output connection structure, suitable for Europe market and North American market
