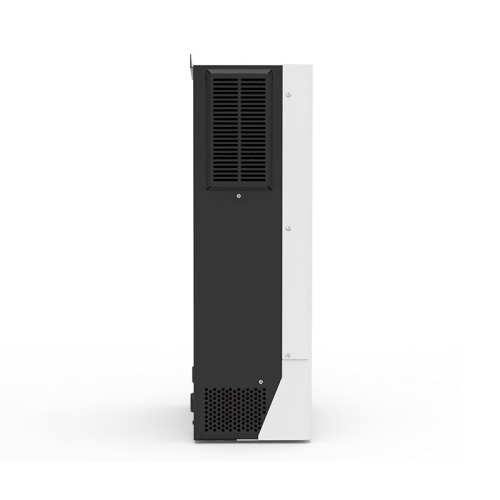

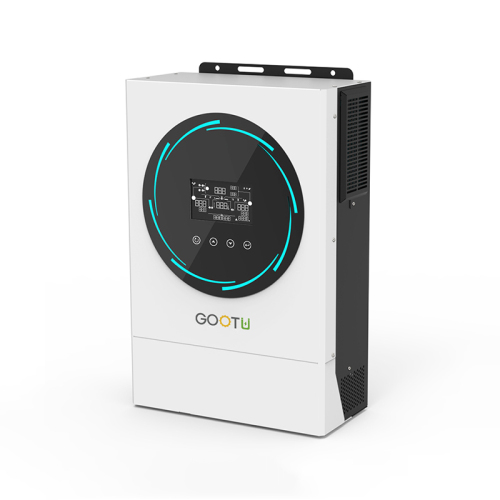

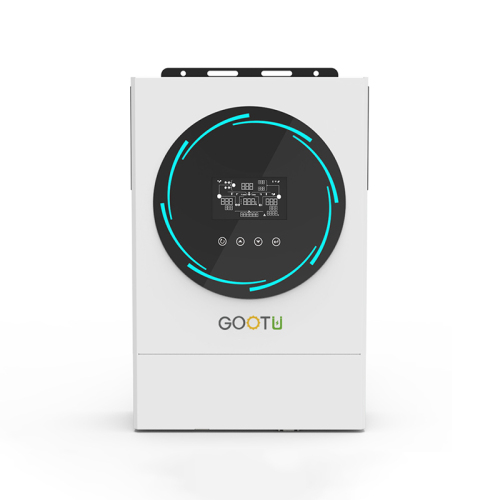

6KW Hybrid Solar Inverter
Basic Info
| Model No. | JSN-H4860E120P |
|---|
Product description

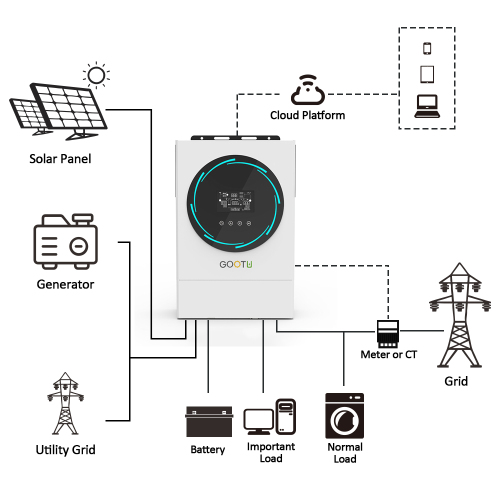

The JSK-H4860E120P is an all in one solar inverter and it is the perfect go-to solution for off-grid, on grid, backup power for homes, small business, that can change the direct current in the solar battery to alternating current. This grid tie hybrid inverter series weighs less so that it makes installation flexible, and it can configure quickly into a compact, wall-mounted system. The JSK-H4860E120P?hybrid grid tie solar inverter can be the best solution for a variety of different solar systems.
?
Data Sheet
|
Model No.
|
JSK-H4860E120P
|
|
Basical information
|
|
|
Max. PV Input Power
|
6000W
|
|
Rated AC Output Power
|
6000W
|
|
Grid-Tie Operation
|
|
|
PV Input (DC)
|
|
|
Nominal DC Volt/Max DC Voltage
|
360VDC/500VDC
|
|
Start-up Voltage/Initial Feeding Voltage
|
120VDC
|
|
MPPT Voltage Range
|
120-450VDC
|
|
No. of MPPT Tracker/Max. Input Current
|
1/27A
|
|
Grid Output (AC)
|
|
|
Nominal Output Volt
|
230Vac, Single Phase (dual AC output)
|
|
Output Voltage Range
|
184V-265Vac or 195-253V (Selectable)
|
|
Nominal Output Current
|
26.0A
|
|
Power Factor
|
>0.9
|
|
Efficiency
|
|
|
Max. Conversion Efficiency (DC/AC)
|
96%
|
|
Off-Grid Operation
|
|
|
AC Input (AC)
|
|
|
AC Start-up Voltage/Auto Restart Volt.
|
120Vac-140Vac/180Vac
|
|
Acceptable Input Voltage Range
|
90-280Vac or 170-280Vac
|
|
Max. AC Input Current
|
40A
|
|
PV Input (DC)
|
|
|
Max. DC Voltage
|
500VDC
|
|
MPPT Voltage Range
|
120-450VDC
|
|
No. of MPPT Tracker/Max. Input Current
|
1/27A
|
|
Grid Tie Mode
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac, Single Phase
|
|
Feed-in Voltage Range
|
184V-265Vac
|
|
Max Efficiency DC/AC
|
>95%
|
|
Battery Mode Output
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac (dual AC output)
|
|
DC output
|
1pc*12Vdc/10A Max
|
|
Waveform
|
Pure sine wave
|
|
Efficiency(DC to AC)
|
93%
|
|
Hybrid Operation
|
|
|
PV Input (DC)
|
|
|
Nominal DC Volt/Max DC Voltage
|
360VDC/500VDC
|
|
Start-up Voltage/Initial Feeding Voltage
|
120VDC
|
|
MPPT Voltage Range
|
120-450VDC
|
|
No. of MPPT Tracker/Max. Input Current
|
1/27A
|
|
Grid Output (AC)
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac, Single Phase (dual AC output)
|
|
Output Voltage Range
|
184V-265Vac or 195-253V (Selectable)
|
|
Nominal Output Current
|
26.0A
|
|
AC Input (AC)
|
|
|
AC Start-up Voltage/Auto Restart Volt.
|
120Vac-140Vac/180Vac
|
|
Acceptable Input Voltage Range
|
90-280Vac or 170-280Vac
|
|
Max. AC Input Current
|
40A
|
|
Battery Mode Output
|
|
|
Nominal Output Volt
|
220Vac/230Vac/240Vac (dual AC output)
|
|
DC output
|
1pc*12Vdc/10A Max
|
|
Waveform
|
Pure sine wave
|
|
Efficiency(DC to AC)
|
93%
|
|
Battery & Charger
|
|
|
Battery Type Supported
|
Lead Acid/VRLA/AGM/GEL/Flooded/Tubular/LiFePO4
|
|
Nominal Battery Voltage
|
48Vdc
|
|
Max Solar Charge Current
|
120A
|
|
Max AC Charge Current
|
120A
|
|
Max Total Charge Current
|
120A
|
|
General
|
|
|
Physical
|
|
|
Products Dimension,D X W X H (mm)
|
456*303*148
|
|
Product Net Weight(kgs)
|
12
|
|
Packing Dimension,D X W X H (mm)
|
535mm*382*mm*224mm,1PC/CTN
|
|
Gross Weight(kgs)
|
13.5
|
|
Parallel functions Optional
|
Yes, optional, max 9pcs
|
|
Communication Interface
|
RS232,USB,RS485,WIFI
|
|
Environment
|
|
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
Operating Temperature
|
-10℃ to 50℃
|
|
Storage Temperature
|
-15℃ to 60℃
|
|
* Product specifications are subject to change without further notice
|
|
