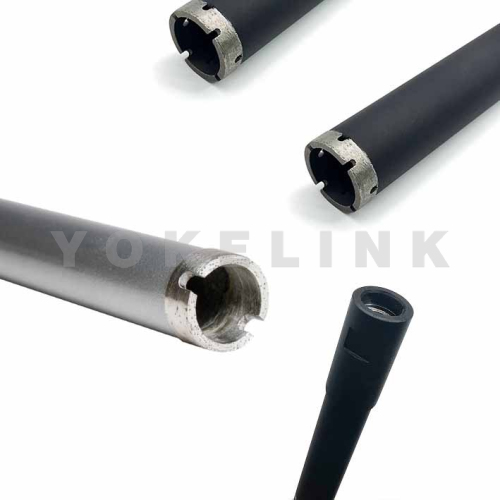

Our high quality segment makes our core drill working very efficient. In the meantime the complete barrel guarantee a good concentricity. We have different type of core bit as right side picture shown.
Wet Diamond Core Bit Features:
Heavy reinforcement concrete, Standard concrete and brick wall

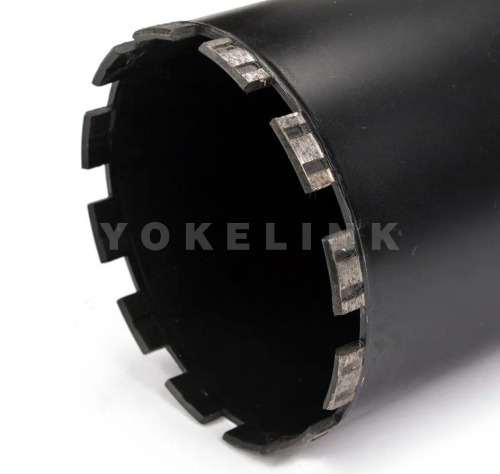

Segment on the core bits can be Normal type, Turbo Type, Roof type, Mesh type and Shark type.
The length and thread can be provided upon request.
Machinery: Hand held drill, drilling machine.Wet use.
We can manufacture diamond core drill bits according to customers required sizes.
Wet Diamond Core Bit Common Specifications
| Diameter (Inch) |
Diameter (mm) |
Effective Length |
Segments |
Segments Qty |
Thread |
| 5/8'' |
16mm |
14'' |
Ring |
5/8″UNC-11 |
| 3/4'' |
20mm |
14'' |
Ring |
5/8″UNC-11 |
| 7/8'' |
22mm |
14'' |
Ring |
5/8″UNC-11 |
| 1'' |
25mm |
14'' |
Ring |
5/8″UNC-11 |
| 1-1/8'' |
28mm |
14'' |
Ring |
5/8″UNC-11 |
| 1-1/4'' |
32mm |
14'' |
Ring |
5/8″UNC-11 |
| 1-3/8'' |
35mm |
14'' |
Ring |
5/8″UNC-11 |
| 2''~16'' |
52mm~408mm |
14'' |
24 x 3.5 x 10 |
5~25 |
1-1/4″UNC-7 |
Note: From 2'' to 16'', If you need more details please contact us
Buy Wet Diamond Core Drill Bits From Orginal Factory
Yokelink wet diamond core drill bits are designed specifically for construction use, offering exceptional durability and performance on tough materials like reinforced concrete, asphalt, and stone. Engineered for precision, they ensure clean, accurate cuts essential for professional construction projects. Their advanced water cooling system reduces heat buildup, enabling faster drilling and prolonging the lifespan of the tool, even under heavy-duty use. With customizable options to suit specific construction requirements and a reputation for quality and reliability,
Yokelink provides a cost-effective solution that meets the demands of modern construction professionals. Feel free to contact us!
