8 Ton hydraulic power cable pulling winch

Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground.

They can complete the tasks of heavy-lifting and dragging such as erecting the wire.

Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting.

Based on so many advantages, this Powered winch is popular with the electric workers.

5T Engine Powered Winch

Model	Rated Output	Traction Speed	Original Power	Weight
LZ-5A	18KN	9.8m/min	Diesel Engine	160kg
	50KN	4.5m/min
LZ-5B	18KN	9.8m/min	Gasoline Engine	140kg
	50KN	4.5m/min
LZ-5C	18KN	9.8m/min	Motor	150kg
	50KN	4.5m/min

8T Engine Powered Winch

Model	Rated Output	Traction Speed	Original Power	Weight
LZ-8A	40KN	15m/min	Diesel Engine	180kg
	80KN	9m/min
LZ-8B	40KN	15m/min	Gasoline Engine	165kg
	80KN	9m/min
LZ-8C	40KN	15m/min	Motor	170kg
	80KN	9m/min

Engine Powered Winch Features

1. Reasonable structure

2. Small volume

3. Light weight

4. Strong power

5. Nimble operation

6. Convenient transporting.



Engine Powered Winch Operation Methods

Before turning on the machine, you must turn on the clutch first and put the racker for crosspiece - changing in the zero position.

When moving the crosspiece, you should be quick. Otherwise the brake won`t work well. When turning on the machine, you shouldn`t work too fiercely.

When changing the crosspiece position, you must turn on the clutch. Otherwise the gear will be damaged. After that, you should check whether the changing job is well done. Make sure you haven`t changed two crosspieces in one time.

If there is any difficulty during the process of changing crosspiece position, you shouldn`t try to complete the job forcefully. Instead you should use the hand installment to help you complete the job. Concrete procedure: using the spanner to move the hand installment to a position with a certain angle, then you can change the crosspiece position smoothly.

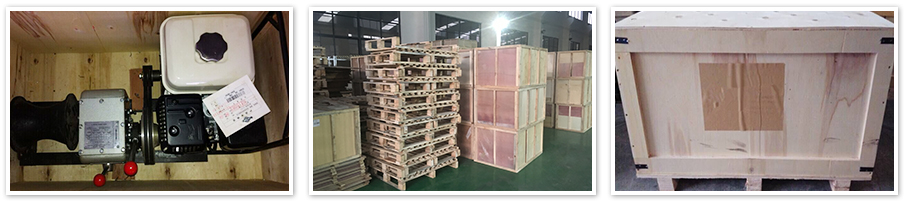

Engine Powered Winch Packing
