8000L 4x2 Refuse Compactor Vehicles
$15880.00
~ $21650.00
/ Bag/Bags
Get Latest Price
You might also like
Basic Info
| Model No. | 8000 litres |
|---|---|
| Brand Name | Xagong Chusheng |
| Load Capacity | 1-10t |
| Drive Wheel | 4×2 |
| Engine Capacity | 6-8L |
| Seats | ≤5 |
| Horsepower | 150-250hp |
Show More
Product description
We are one of the renowned manufacturers and suppliers of Refuse Compactor Vehicles, which is provided with the 4x2 chassis like Dongfeng, SINOTRUK, Foton etc. The Refuse Compactor Vehicles adopt double direction compression techniques, Relatively smaller space between scraper and loading device can let garbage more sufficiently into the body.
Main feature
1. Different chassises for customer to choose, like Dongfeng, FAW, Foton etc.
2. In accordance with local DOT rules and regulations
3. The compaction ratio (volumetric) varies between 3:1 to 6:1 according to the characteristic of the garbage.
4. Top, hydrant, and reservoir filling capability
Garbage Truck Body
Volume: 8,000 litres
Material: Q235/Q345/Carbon steel/stainless steel
Equipment: Hermetic dustbin, hydraulic system and operating system
Thickness: 4mm-10mm
Uploading cyclic time: ＜60s
Loading cyclic time: ≤30s
Lifting capacity of turnover machanism: ≥800KG
Chassis Parameter
Chassis Type: DFL1160BX1V
Engine Type: ISD210 50
Curb weight: 9100 kg
Loading Weight: 6505 kg
Total Weight: 15800 kg
Approach angle/Departure angle: 20/15°
Tire Size: 9.00R20 16PR,10.00-20 16PR
Wheelbase: 4200 mm
External Dimensions(Length*Width*Height): 8650*2490*3300 mm
Maximum Speed: 98 km/h
Hydraulic system:
PTO: according to the transmission
Gear pump: Wuxi InterPump
Working Pressure: 24 MPa
Rear loading garbage compactor
Garbage compression system: slide plate mechanism; scraper blade mechanism
Working time for finish one cycle: 35s
Hopper lifting system:
Oil cylinger be installed the two-way hydraulic lock to ensure trash box operate safely when lifting

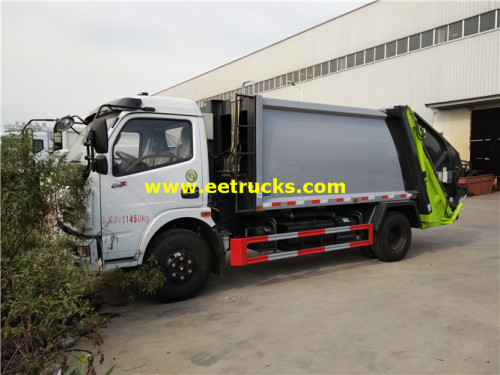

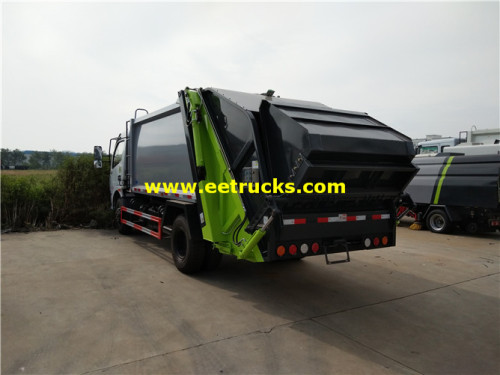

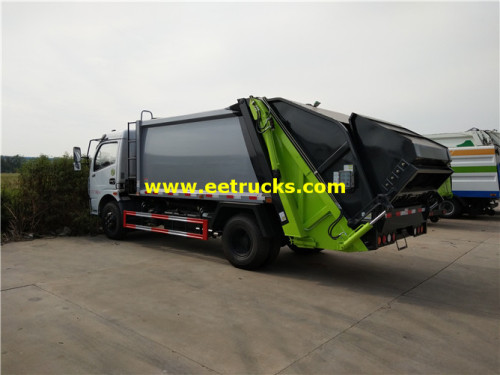

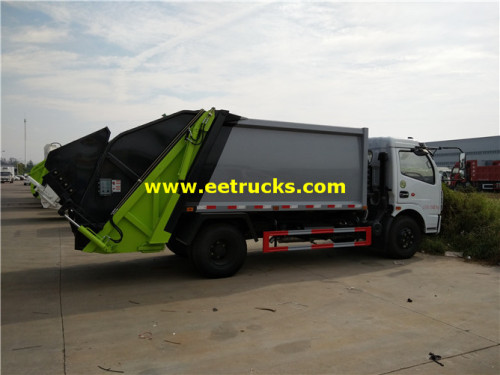

Pictures of Refuse Compactor Vehicles:
Backup alarm
DOT lights, reflectors and mud flaps
Emergency reflectors supplied
Fire extinguisher
Related Products:
There are kinds of production lines and technical staff in our company, we can also manufacture the following products:
1. LPG Tank Trucks
2. LPG Tank Trailers
3. LPG Skid Mounted Station
4. LPG Gas Cylinder Filling Trucks
5. Truck Cranes
6. Fuel Tank Trucks
We Xiagong Chusheng Special Purpose Vehicle Co.Ltd. is the leader vehicle manufacturer and exporter in China, CSC TRUCK can research and develop independently. We specializes in manufacturing pressure vessels, LPG Storage Tanks, LPG Tank Trucks, heavy duty trucks, dump trucks, tractors and cement mixers,fuel tanker truck, trailers & special vehicles.
Xiagong Chusheng is a lineup of Sealed Garbage Dump Trucks for the safe and efficient collection of waste. The advanced level of features for loading, compacting and transportation are sure to meet your needs.
Frequently Asked Question
1. How about your product quality?
All our suppliers have passed the SGS,BV, and CONTECNA qualification certification, the quality is 100% guaranteed.
2. How about your company's service, especially after-sale service?
Xiagong Chusheng has been in this field for nearly 20 years and has strong production and distribution capability,we can satisfy your demand within 3-7 days.We always do our best to solve all the problems and put our customer's interests in the first place.
3. I want to be your agent in my country , is that ok?
It's ok, If your quantity is big, we will consider. For the first time 50 units is ok.
