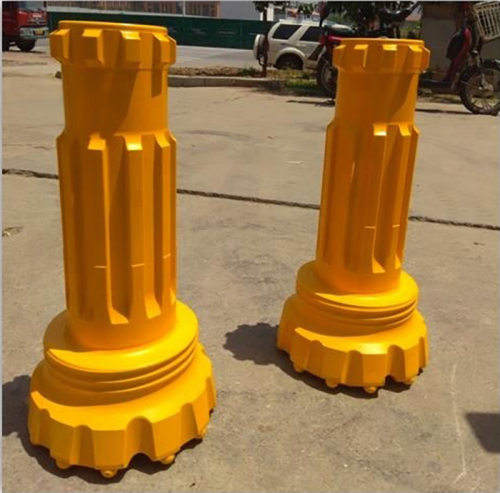

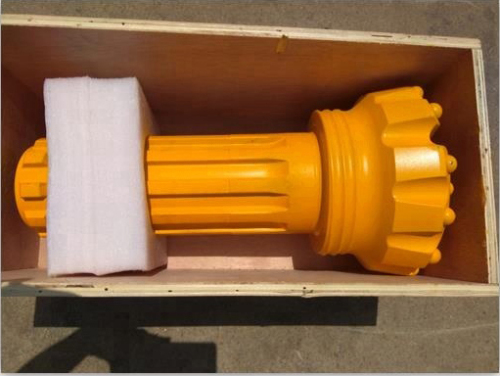

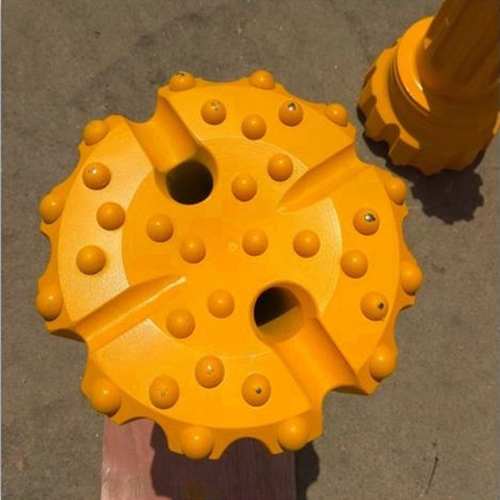

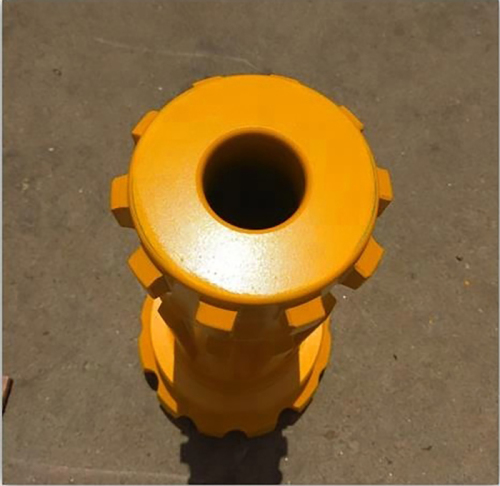

800mm DTH hammer drilling button bits

Name: 800mm DTH hammer drilling button bits
Brand: Henan YK Prospecting Machinery Co., Ltd
Rating: 4.5 (13 reviews)

$300.00

≥1 Set/Sets

Get Latest Price

You might also like

Concentric casing drilling system overburden ring drill bit

1 Set/Sets (MOQ)

Concentric casing drilling hammer bits high air pressure

1 Set/Sets (MOQ)

rock carbide mining drill bit top hammer DTH

1 Set/Sets (MOQ)

Top hammer casing system drilling tools

1 Set/Sets (MOQ)

High Air Pressure Dth Hammer for Mine Impactor

1 Piece/Pieces (MOQ)

High Air Pressure 50A Pneumatic Rock Breaker

1 Piece/Pieces (MOQ)

High Pressure 5 Inch DTH Hammer Drill Bits

1 Piece/Pieces (MOQ)

Dth Hammer Drill Impactor High Air Pressure Sale

1 Piece/Pieces (MOQ)

90A Low Air Pressure Mining Drilling Borehole Button

1 Piece/Pieces (MOQ)

High Air Pressure 4DTH Hammer Button Bits

1 Piece/Pieces (MOQ)

Basic Info

Model No.	YKBH-06
Brand Name	YikYui
Usage	Water Well
Power Type	Diesel
Condition	New
Applicable industry	Energy &Amp; Mining, Food &Amp; Beverage Factory
Where to provide local services (in which countries are there overseas service outlets)	Viet Nam, Thailand, Philippines, Algeria, Uzbekistan, Nigeria, Colombia
status	New
Types of	Rotary Drilling Rig
Engine type	Diesel
place of origin	China
Core components	Bearing, Engine, Gearbox

Product description

Large diameter DTH drill bit for DTH hammer 70mm 600mm 800mm 900mm all hole diameter

Drilling hammer and Impactor for Pakistan,Impact Drill,Drilling Hammer for Iran,Iraq,Electric Hammer,Rotary Hammer Drill

DTH Button Bits: YikYui is in the position to offer a comprehensive range of DTH drill bits with all diameters of the current prevailing manufacturers’ hammer shank designs to match various drilling applications. All our DTH drill bits are also CAD designed, CNC manufactured for perfect bits body, and multiple heat-treated to enhance hardness, surface-compressed for fatigue resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions.

Moreover, all these bits are also made from high quality alloy steels and fitted with premium quality tungsten carbide tips for superior penetration rate.

	Hammer Size
	2”~3.5”
	4”~8”
	10”~32”
Hammer Shank Style
BR, AHD, Cop, Mission...
Mincon, Numa, QL, TD...
SD, DHD, XL, ACD, Mach...
	Face Design Flat, Concave, Convex

PRODUCT SPECIFICATION

Hammer Size	Hammer Shank Style	Bit Diameter		Face Design	Insert Shapes
		mm	inch

2	BR1	64~76	2 1/2 ~ 3	FF, CV	S, P, B, C
2.5	BR2, Minroc 2, AHD25	76~90	3 ~ 3 1/2	FF, CV	S, P, B, C
3.5	BR 3, Minroc 3, Mach33/303, DHD3.5, TD35, XL3, Mission 30, COP32, Secoroc3, COP34	85~105	3 3/8 ~ 4 1/8	FF, CV	S, P, B, C
4	DHD340A/DHD4, COP44, Secoroc4/44, Numa4, Mincon 4, SD4(A34-15), QL40, Mission 40, COP42, Mach 40/44, Dominator 400, XL4	105~130	4 1/8 ~ 5	FF, CV, CC	S, P, B, C
5	DHD350R, COP54, Secoroc5/54, Mach 50, SD5(A43-15), BR5V, COP54 Gold, QL50, TD50/55, HP50/55, Patriot 50, Mission 50/55, COP52, XL5/5.5	137~165	5 3/8 ~ 6 1/2	FF, CV, CC	S, P, B, C
6	DHD360, DHD6/6.5, SF6, COP64, Secoroc 6, Challenger/Patriot 6, XL61/PD61, Mach 60, COP64 Gold, QL60, SD6(A53-15)/PD6, ADEC-6M, TD60/65/70, HP60/HP65, Mission 60/60W/65, COP62, XL6	152~203	6 ~ 8	FF, CV, CC	S, P, B, C
8	DHD380, COP84, Secoroc 84, Mach 80, Challenger/Patriot 80, SD8(63-15), XL8, QL80, Mission 80/85	203~305	8 ~ 12	FF, CV, CC	S, P, B
10	SD10, Numa100	241~356	9 1/2 ~ 14	FF, CC	S
12	DHD112, XL12, Mach132, Mach120, SD12(A100-15), NUMA120, NUMA125	305~419	12 ~ 16 1/2	FF, CC	S
14	ACD145	381~470	15 ~ 18 1/2	FF, CC	S
18	ACD185	445~660	17 1/2 ~ 26	FF, CC	S
20	ACD205	495~711	19 1/2 ~ 28	FF, CC	S
24	ACD245	711~990	28 ~ 39	FF, CC	S
32	ACD325	720~1118	28 1/2 ~ 44	FF, CC	S

Specification Notice

Notes:

Face Design:

FF=Flat Front,

CV=Convex,

CC=Concave;

Button Configurations:

S=Hemi-spherical (Round),

P=Parabolic.

How to order?

Shank Type + Diameter + Face Design + Button

Configuration

For brochure and more product information, please leave us a message.

To Chose the Right Products

When selecting the applicable bit for optimum performance and you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life. YikYui commonly has three basic bits head designs: Flat Face, Convex and Concave. These are designed for specific applications for all rock types, hardness’s and conditions:
