We believe expanding or adding field devices should be quite simple. Therefore we develop multifunctional and software configurable I/O modules and provide numerous basic I/O modules with different channels, signal voltage and fieldbus connections.

You can choose and combine your needed type of connection:

• Central, using local I/O bus of CPU module.
• Up to ten I/O modules can be connected to the CPU.
• Decentralized periphery via fieldbus between CPU module and remote I/O modules.
• For each fieldbus slave, up to ten I/O modules can be connected.
• Multifunctional approach: some modules cover a broad range of requirements, e.g. AI531 with 8 types of different signals in one module.

Analog	Number of I/Os	Features
AI523	16AI	V, mA, Pt100, Pt1000, Ni1000
AX521	4AI 4AO	V, mA, Pt100, Pt1000, Ni1000
AX522	8AI 8AO	V, mA, Pt100, Pt1000, Ni1000
AO523	16AO
AI531	8AI	V, mA, Pt100, Pt1000, Ni1000, Thermocouple

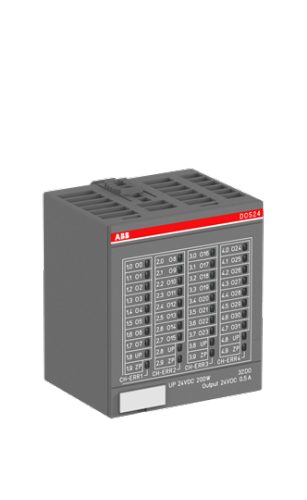

DO524

General Information

• Extended Product Type:DO524

• Product ID:1SAP240700R0001

• ABB Type Designation:DO524

• EAN:4013614482717

• Catalog Description:DO524:S500,Dig.Out.Mod.32DO-Transistor

• Long Description:DO524:S500,Digital Output Module 32DO, DO-Transistor:24VDC/0.5A,1-wire

Additional Information

• ABB Type Designation:DO524

• CN8:85389091

• CSA Certificate:1SAA960000-1712

• Country of Origin:Germany (DE)

• Customs Tariff Number:85389091

• Declaration of Conformity - CE:1SAD938503-0165

• Declaration of Conformity - KCC:1SAA960001-4801

• EAN:4013614482717

• EPLAN Catalog Tree:Electrical engineering / PLC / PLC output card digital

• Environmental Information:1SAA960009-2405

• GOST Certificate:1SAA962000-2703

• Gross Weight:0.2 kg

• Invoice Description:DO524:S500,Dig.Out.Mod.32DO-Transistor

• Made To Order:No

• Minimum Order Quantity:1 piece

• Order Multiple:1 piece

• Product Main Type:DO524

• Product Name:Distributed Automation I/Os

• Product Net Height:76 mm

• Product Net Length:62 mm

• Product Net Weight:0.11 kg

• Product Net Width:67.5 mm

• Product Type:PLC-AC500

• Quote Only:No

• RoHS Date:1110

• RoHS Information:1SAA960006-4410

• RoHS Status:Following EU Directive 2002/95/EC August 18, 2005 and amendment

• Selling Unit of Measure:piece

• Short Description:DO524:S500,Dig.Out.Mod.32DO-Transistor

• Stocked At (Warehouses):Central Stock Europe
  SGIND002EXPU
  CNYKAEXPU

• UL Certificate:1SAA960000-1612

• WEEE B2C / B2B:Business To Business

• WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)

• cUL Certificate:1SAA960000-1712

• cULus Certificate:1SAA960000-1712
