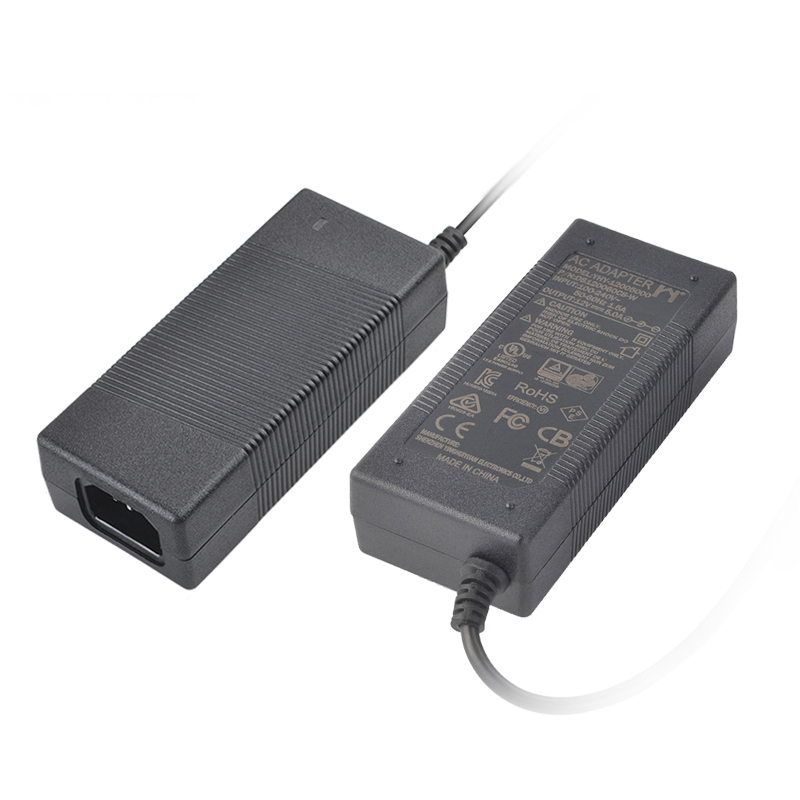

Ac Dc Power Adapter 12V 5Amp
Color:
- Black
Socket standard:
- Universal
Basic Info
| Model No. | YHY-12005000 |
|---|---|
| Brand Name | YHYadapter |
| Type | Electric |
| Function | charging |
| Brand Name | YHY |
| Model Number | YHY-12605000 |
| Input Voltage | 100V-240V |
Product description
UL CUL VI 100-240v Ac Dc Power Adapter 12V 5Amp
12vdc 5amp ac adaptor switching power adapter, wide AC input voltage to DC 12V 5A. AC/DC 12v 5a Desktop Power Adapter,model No. YHY-12005000 use for ITE and Industry
Detailed Images
| NO. | Items | Specification |
| Input Characteristics | Input voltage | 100-240V~, 50/60Hz |
| Min. Input current | 0.5A | |
| Output Characteristics | Max. Output Voltage | As below list |
| Max. Output Current | As below list | |
| Battery Capacity | 10000mAh Min | |
| Efficiency | 80% Min | |
| Power Indication | LED=Green: Fully charged | |
| LED=Red: In charging | ||
| Charging Supervision and Protection Mechanism | Over Voltage Protection | YES |
| Output Reverse Protection | YES | |
| CC CV | YES | |
| Envrionment | Operation Temperature | 32-140F |
| Operation Humidity | 20-85% | |
| Storage Temperature | 40-80F | |
| Storage Humidity | 10-95% | |
| Mechanical | Dimension | --- |
| AC Inlet | C6 / C8 / C14 / Two Cord | |
| Weight | 110G | |
| Output Cable | 1.2m 2464 20AWG | |
| Connector | 5.5x2.1mm (Customizable ) | |
| Charge Instruction | ||
| 1. Make sure your AC supply source is 100-240V and your battery pack match with the battery requirement. | ||
| 2. Connect the charger to the AC outlet. LED=Green: it means power on and no battery connected. | ||
| 3. Connect DC output to battery pack terminals. LED turn into red. It means in charging. | ||
| 4. When LED turns Green, the battery pack is fully charged. You can charge next battery pack or switch off the power. | ||
| Notice | ||
| 1. Make sure your battery voltage match with your charger. | ||
| 2. Always place the charger in well-ventilated, dry environment and indoor use only. | ||
| 3. Never charge other type batteries except Li-ION/Polymer. | ||
| 4. Subject to change without prior notice, please contact us for the latest information. | ||
| 5. Indoor used only, never expose the charger to water such as rain and splash. | ||
| 6. Make sure good ventilation is provided when charger operation. Never place the charger near radiator, heat register or similar heat source when in charging. | ||
Products Description
12V5A constant voltage switching power supply adapter, wide AC input voltage to DC 12V 5A. AC/DC 12v 5a Desktop Power Adapter,model No. YHY-12005000 use for ITE and Industry
? Low ripple, SCP，OVP，OCP，OTP. No noticeable transformer noise or distortion when YHY 12v 5amp adapter works,and 94v-0 fire proof shell to ensure safe for use.

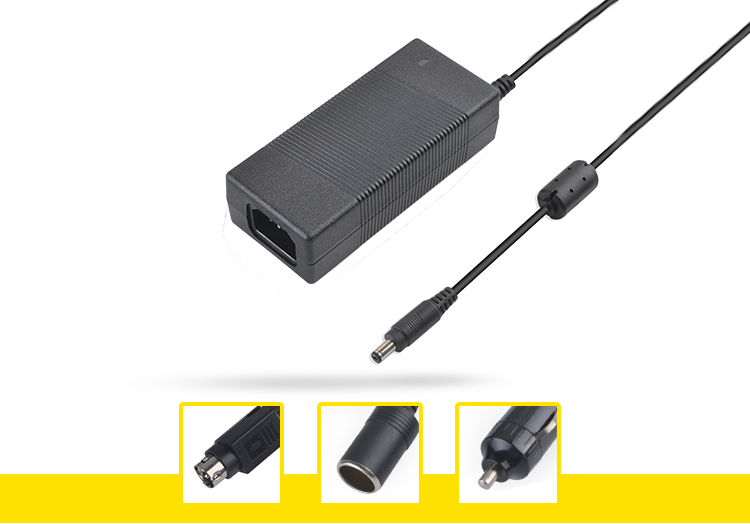

? We support semi-custom service , customized DC cable length, Dc connector are available
? We provide 3 years warranty
? Black and white color available
? Support custom nameplates, laser nameplate
? Energy efficient and stable 12V DC power supply
? Factory direct supply, fast respond within 12 hours after received your inquire/RFQ
