Introduction:

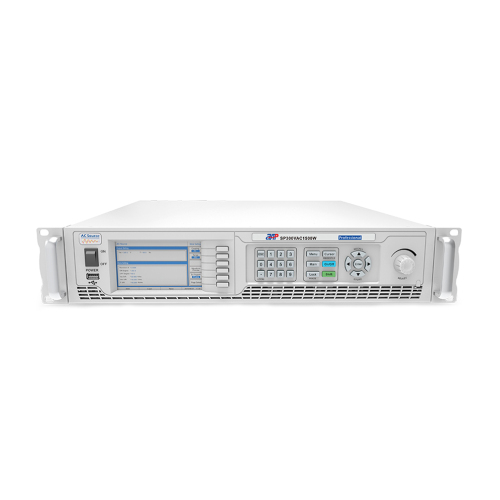

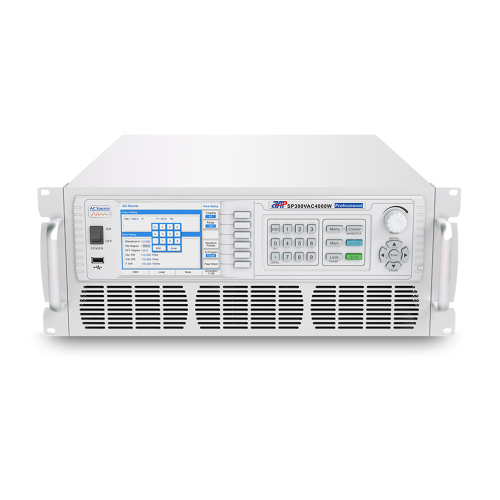

Why choose APM AC power supply products? The maximum power of sp300vac 5000W can reach 5000W, and the DC voltage output can reach 300VAC. Sp300vac 5000W is a programmable laboratory power supply. It is a high-precision programmable AC power supply with switch mode and single channel output. It adopts high-speed DSP + CPLD control, high-frequency PWM power supply technology and active PFC design to realize stable AC and DC output. It has high power density, high reliability, high precision, touch screen and manual key operation interface. It can simulate the normal or abnormal input of electrical equipment and meet the test requirements. To meet the power electronics, motor, lighting, avionics, automotive electronics R & D quality assurance laboratory validation, as well as factory production line production test validation.besides,you can search this keyword to find us:How to Buy  Power.Ac Dc programable Power Up.Ac Dc Power Adapter Symbols

model table：

Product Features:

◆ Large color touch screen with intuitive interface, easy to operate

◆ Features AC, DC, AC+DC output modes, AC+DC output mode for voltage DC offset simulation

◆ Turn on, turn off phase angle control, 0-359.9°

◆ Output frequency: 15-1200Hz, programmable slew rate setting for changing voltage and frequency

◆ High output current crest factor which is ideal for inrush current testing

◆ Built-in power meter function, can real-time measure 15 electrical parameters such as RMS voltage, current, power, apparent power and etc. This series AC source can measure up to 40 orders of the voltage or current harmonics. Support LIST/PULSE/STEP modes to simulate all kinds of power line disturbance conditions

◆ Triac Dimmer function for dimming/governor simulation function

◆ weep function for efficiency testing and shows voltage and frequency value at max power

◆ Multiple current range to make current measurement more accurate

◆ Front panel USB interface supports CSV format to import waveform

◆ OCP/OVP/OPP/OTP/reverse current protection/short circuit protection

◆ Programmable voltage and current limit, support CC mode

◆ Support up to 2 units in series, 4 units in parallel

◆ Support three phase power output, can simulate three phase unbalanced output

◆ Support external analog input control and TTL electrical level output

◆ Two versions to meet the cost performance and different applications

Application Area:

? Aerospace and Defense

? Automotive and energy

? Communication and Education

? Semiconductor
? Industries
