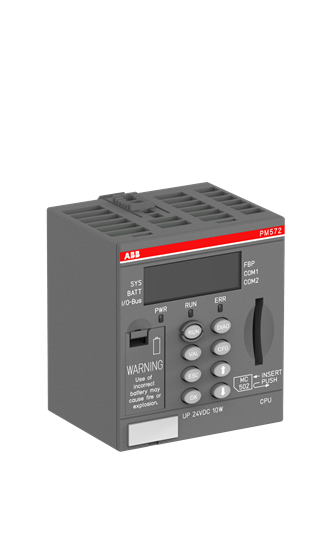

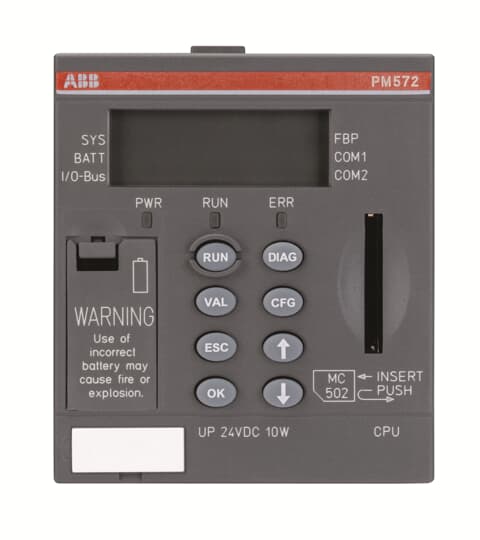

General Information

• Extended Product Type:PM572

• Product ID:1SAP130200R0200

• ABB Type Designation:PM572

• EAN:4016779711517

• Catalog Description:PM572:AC500,Prog.Logic Controller 128kB

• Long Description:PM572:AC500,Prog.Logic Controller 128kB, 24VDC,2xRS232/485,FBP,SD-Card Slot LCD Display

Additional Information

• ABB Type Designation:PM572

• ABS Certificate:1SAA960002-0106

• Ambient Air Temperature:Operation 0 ... +60 °C
  Storage -40 ... +70 °C

• BV Certificate:1SAA960003-0204

• CN8:85389091

• CS31-Bus:1

• CSA Certificate:1SAA960000-1712

• Communication:Serial interfaces for communication and programming

• Communication Interface:Serial/FiedlBusPlug

• Communication Speed:Speed for 1000 instructions of Logic = 0.05 0.06 ms
  Speed for 1000 instructions of Word = 0.05 0.09 ms
  Speed for 1000 instructions of Floating-point = 0.5 0.70 ms

• Country of Origin:Germany (DE)

• Customs Tariff Number:85371091

• DNV Certificate:1SAA960002-0306

• Declaration of Conformity - C-Tick:1SAA960000-3302

• Declaration of Conformity - CE:1SAD938504-0161

• Declaration of Conformity - KCC:1SAA960001-4801

• Degree of Protection:IP20

• Display Type:LCD

• EAN:4016779711517

• EPLAN Catalog Tree:Electrical engineering / PLC / General

• Environmental Information:1SAA960007-2406

• GL Certificate:1SAA960004-0409

• GOST Certificate:1SAA962000-2703

• Gross Weight:0.2 kg

• I/O Option:CPU with Local IO - on I/O-Bus

• Invoice Description:PM572:AC500,Prog.Logic Controller 128kB

• LR Certificate:1SAA960002-0506

• Made To Order:No

• Maximum Number of Analog I/Os:160 AI, 160 AO local max. 10 extension modules

• Maximum Number of Digital I/Os:320 DI, 240 DO/DC local max. 10 extension modules

• Maximum Operating Altitude Permissible:2000 m

• Memory Size User Data:128 kB

• Memory Size User Program:128 kB

• Memory Type User Data:Flash EPROM

• Memory Type User Program:Flash EPROM, non-volatile RAM, SD Card

• Minimum Order Quantity:1 piece

• Mounting Position:Horizontal, Vertical possible with derating

• Mounting on DIN Rail:TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

• Number of Display Lines:1

• Number of Function Keys:8

• Number of LEDs:3

• Order Multiple:1 piece

• Power Supply:24 V DC

• Primary Voltage:24 V DC

• Product Depth:72 mm

• Product Main Type:PM572

• Product Name:Distributed Automation PLCs

• Product Net Height:76 mm

• Product Net Length:62 mm

• Product Net Weight:0.14 kg

• Product Net Width:67.5 mm

• Product Type:PLC-AC500

• Programming Software:Automation Builder

• Quote Only:No

• RINA Certificate:1SAA960003-0807

• RMRS Certificate:1SAA960001-0706

• Real-time Clock:Yes

• RoHS Date:1430

• RoHS Information:1SAA960005-4410

• RoHS Status:Following EU Directive 2002/95/EC August 18, 2005 and amendment

• Secondary Current:0.2 A

• Selling Unit of Measure:piece

• Serial Port 1 Type:RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII, CS31 Master

• Serial Port 2 Type:RS232 / RS485 configurable, Programing, Modbus Master or slave, ASCII

• Short Description:PM572:AC500,Prog.Logic Controller 128kB

• Stocked At (Warehouses):Central Stock Europe
  SGIND002EXPU
  CNYKAEXPU

• Supply Voltage:24 V DC

• UL Certificate:1SAA960000-1612

• WEEE B2C / B2B:Business To Business

• WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)

• cUL Certificate:1SAA960000-1712

• cULus Certificate:1SAA960000-1712
