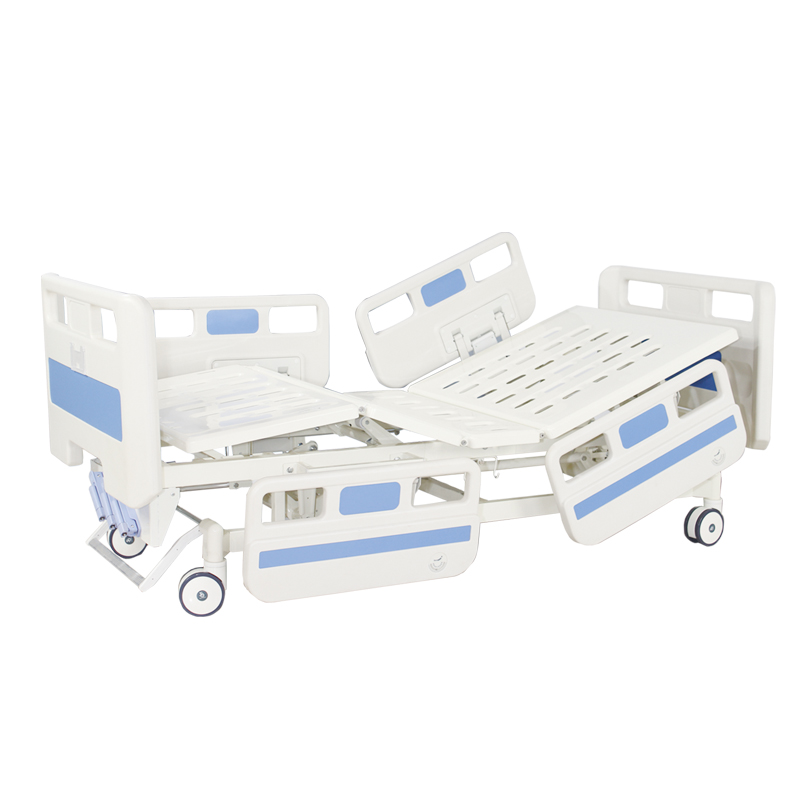

Adjustable three-function manual hosptial nursing care bed with ABS side rails

Introduction:

Adjustable three-function manual hosptial nursing care bed with ABS side rails with ABS Bed Head is a medical bed specially designed for hospitalized patients or others in need of some form of health care. Adjustable three-function manual hosptial nursing care bed with ABS side rails have special features both for the comfort and well-being of the patient and for the convenience of health care workers.

The features of Adjustable three-function manual hosptial nursing care bed with ABS side rails include adjustable height for the entire bed, the head, and the feet, adjustable side rails, and 3 crank to easy operate both the bed and other nearby devices.

Adjustable three-function manual hosptial nursing care bed with ABS side rails are used not only in hospitals, but in other health care facilities and settings, such as nursing homes, assisted living facilities, outpatient clinics, and in home health care.

Parameters

◆ Size:                                                                               2120*980*500mm

◆ Mattress platform:                                                                  1900*900mm

◆ Safe work load:                                                                               260kgs

◆ Hight adjustments:                                                                  460 - 650mm

◆ Back-rest adjustments:                                                                0-75°(±10)

◆ Knee-rest adjustments:                                                               0-30°(±10)

Configuration

◆ Crank:                                                                                            3 pcs

◆ Hand control unit                                                                              1pcs

◆ 125mm castors, central brake system                                                 4 pcs

◆ ABS side rails                                                                                   4 pcs

◆ ABS head & foot board                                                                     2 pcs

◆ Mattress platform                                                                      4 sections

◆ IV pole                                                                                            1 pcs

◆ IV pole sockets                                                                                4 pcs

◆ Draniage hook                                                                                 2 pcs

Optional

◆ HPL mattress platform

◆ X-ray cassette holder

◆ Movable dining table

◆ Cabinet

Important Quality Control
* Mordern design.Use new and strong inserted ABS fire-proof panel avoid off.
* Easy to be cleaned and installed
* With UL/ROHS/EN Standard. Noise Under 50dB, With Lifetime 20,000Times Movement.
* Baosteel from Fortune Global 500
* Environmental plastic can be sterilized in 100°C,tensile upto 30MPa
* Solid bed base made of 5.0mm stamped rotating plate
* 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact
* Panasonic Robotic ensure 360° full smooth wedlding
