Advanced Triangular Pen Positioning Printer

Get Latest Price

Basic Info

Model No.	PH005
Brand Name

Product description

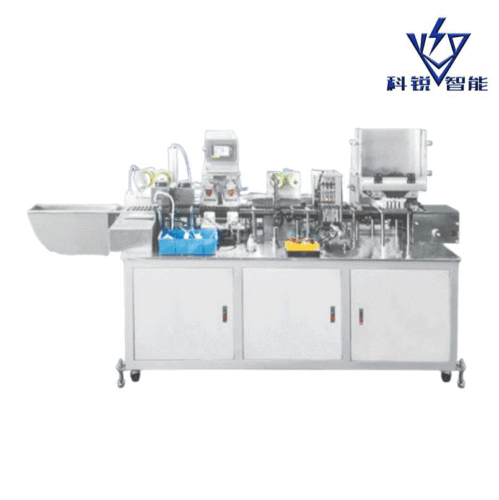

The triangular pen positioning pad printing machine (one out of four) is a high-efficiency device in the heat transfer series specifically designed for triangular pen barrel printing. With its four-station synchronous operation design, it has become a core equipment for pen manufacturing enterprises to increase production capacity and is widely used in surface pattern printing of triangular pen ballpoint pens, marker pens, watercolor pens and other products. ?

The equipment is equipped with a bionic positioning fixture specially developed for triangular pen holders. Through a three-point snap-fit fixed structure, it can precisely hold triangular pen holders of different specifications (diameter 5-12mm, length 100-180mm). Combined with a high-definition visual recognition system, it can automatically capture the reference line of the pen holder's edge, and the positioning error is controlled within ±0.03mm. Ensure the symmetry of the pattern in the center of the triangular surface. Its unique one-out-four-printing unit layout can simultaneously complete single-color or two-color overprinting of four pen holders, with a single-hour production capacity of 3,000 to 4,000 pens, which is more than three times higher than that of single-station equipment. ?

In terms of technical performance, the equipment adopts a food-grade ink transmission system. The adhesion of the printed patterns complies with the EU EN71 standard and can withstand alcohol wiping and high and low temperature tests. The transfer pressure (50-200N) and printing speed (10-30 times per minute) can both be precisely adjusted through the 10-inch touch screen, and it is compatible with various pen barrel materials such as ABS, PS, and PP. In addition, the equipment is equipped with an automatic ink supply and residual ink recovery device, increasing the ink utilization rate to over 90% and significantly reducing the cost of consumables. ?

Whether it is mass-producing triangular pens printed with brand logos or customizing student pens with cartoon patterns, this pad printing machine can meet the large-scale production needs of pen enterprises with stable four-station synchronous operation, precise triangular positioning technology and efficient production capacity output, helping products form a differentiated competitive advantage in appearance details.
