OptiPlex 5090 Technical Specifications
|
|
Processors
|
Tower, Small Form Factor: 10th Generation? Core? i5-10400, 12MB Cache, 6 Core, 12 Treads, 2.9GHz to 4.3GHz, 65W 10th Generation Core? i5-10500, 12MB Cache, 6 Core, 12 Treads, 3.1GHz to 4.5GHz, 65W 10th Generation Core? i5-10600, 12MB Cache, 6 Core, 12 Treads, 3.3GHz to 4.8GHz, 65W 10th Generation Core? i7-10700, 16MB Cache, 8 Core, 16 Treads, 2.9GHz to 4.8GHz, 65W 10th Generation Pentium? Gold G6405, 4 MB Cache, 2 Core, 4 Threads, Up to 4.1 GHz, 58 W 10th Generation Pentium? Gold G6505, 4 MB Cache, 2 Core, 4 Threads, Up to 4.2 GHz, 58 W 10th Generation Core? i3-10105, 6 MB Cache, 4 Core, 8 Threads, 3.7 GHz to 4.4 GHz, 65 W 10th Generation Core? i3-10305, 8 MB Cache, 4 Core, 8 Threads, 3.8 GHz to 4.5 GHz, 65 W 10th Generation Core? i5-10505, 12 MB Cache, 6 Core, 12 Threads, 3.2 GHz to 4.6 GHz, 65 W 11th Generation Core? i5-11400, 12 MB Cache, 6 Core, 12 Threads, 2.6 GHz to 4.4 GHz, 65 W 11th Generation Core? i5-11500, 12 MB Cache, 6 Core, 12 Threads, 2.7 GHz to 4.6 GHz, 65 W 11th Generation Core? i5-11600, 12 MB Cache, 6 Core, 12 Threads, 2.8 GHz to 4.8 GHz, 65 W 11th Generation Core? i7-11700, 16 MB Cache, 8 Core, 16 Threads, 2.5 GHz to 4.9 GHz, 65 W
|
|
Chipset
|
?Q570 Chipset
|
|
Video Card
|
Tower: UHD Graphics 610 for 10th Generation Pentium? Gold G6405 processors UHD Graphics 630 for 10th Generation Pentium? Gold G6505 and 10th Generation? Core? i3/i5/i7 processors UHD Graphics 730 for 11th Generation Core? i5-11400 processors UHD Graphics 750 for 11th Generation Core? i5/i7 processors GeForce? GTX 1660 Super?, 6 GB, GDDR6 (optional) Radeon? RX640, 4 GB, GDDR5 (optional) Radeon? 550, 2GB, GDDR5 (optional) Radeon? 540, 1GB, GDDR5 (optional)
|
|
Memory
|
Tower: 4 GB, 1 x 4 GB, DDR4, 2666 MHz for Pentium and 10th Generation Intel Core i3/i5, 2933 MHz for 10th Generation Core i7, 3200 MHz for 11th Generation Core i5/i7 processors 8 GB, 1 x 8 GB, DDR4, 2666 MHz for Pentium and 10th Generation Core i3/i5, 2933 MHz for 10th Generation Core i7, 3200 MHz for 11th Generation Intel Core i5/i7 processors 8 GB, 2 x 4 GB, DDR4, 2666 MHz forPentium and 10th Generation Core i3/i5, 2933 MHz for 10th Generation Core i7, 3200 MHz for 11th Generation Core i5/i7 processors
16 GB, 1 x 16 GB, DDR4, 2666 MHz for Pentium and 10th Generation? Core i3/i5, 2933 MHz for 10th Generation Core i7, 3200 MHz for 11th Generation Core i5/i7 processors 16 GB, 2 x 8 GB, DDR4, 2666 MHz for Pentium and 10th Generation Core i3/i5, 2933 MHz for 10th Generation Corei7, 3200 MHz for 11th Generation Core i5/i7 processors 16 GB, 4 x 4 GB, DDR4, 2666 MHz for Pentium and 10th Generation Core i3/i5, 2933 MHz for 10th Generation Corei7, 3200 MHz for 11th Generation Core i5/i7 processors 32 GB, 1 x 32 GB, DDR4, 2666 MHz for Pentium and 10th Generation Core i3/i5, 2933 MHz for 10th Generation Corei7, 3200 MHz for 11th Generation Core i5/i7 processors 32 GB, 2 x 16 GB, DDR4, 2666 MHz for Pentium and 10th Generation Core i3/i5, 2933 MHz for 10th Generation Core i7, 3200 MHz for 11th Generation Core i5/i7 processors 32 GB, 4 x 8 GB, DDR4, 2666 MHz for Intel Pentium and 10th Generation Intel Core i3/i5, 2933 MHz for 10th Generation Intel Corei7, 3200 MHz for 11th Generation Intel Core i5/i7 processors 64 GB, 2 x 32 GB, DDR4, 2666 MHz for Pentium and 10th Generation Core i3/i5, 2933 MHz for 10th Generation Corei7, 3200 MHz for 11th Generation Core i5/i7 processors 64 GB, 4 x 16 GB, DDR4, 2666 MHz for Pentium and 10th Generation Core i3/i5, 2933 MHz for 10th Generation Corei7, 3200 MHz for 11th Generation Core i5/i7 processors 128 GB, 4 x 32 GB, DDR4, 2666 MHz for Pentium and 10th Generation Core i3/i5, 2933 MHz for 10th Generation Corei7 and 11th Generation Core i5/i7 processors Note: The Memory speed varies by different type of DPC (DIMM per Channel) installation.
|
|

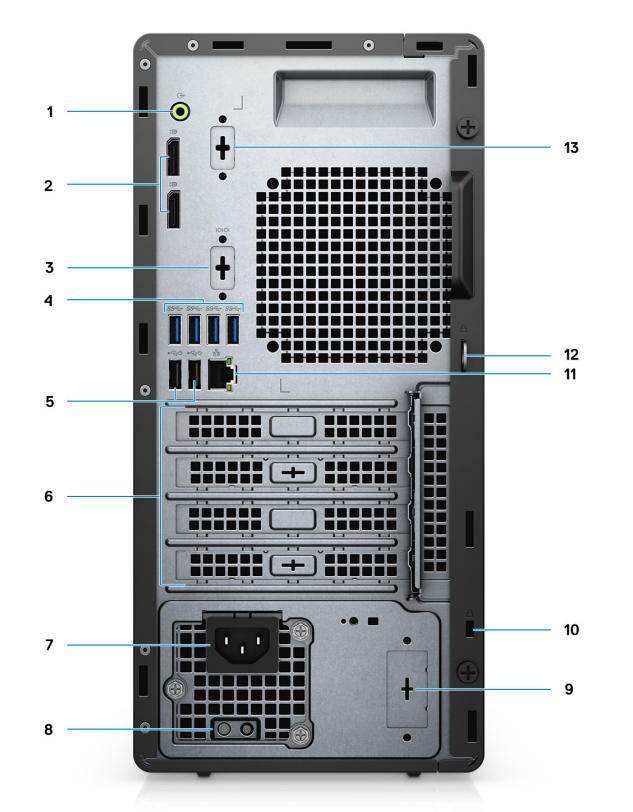

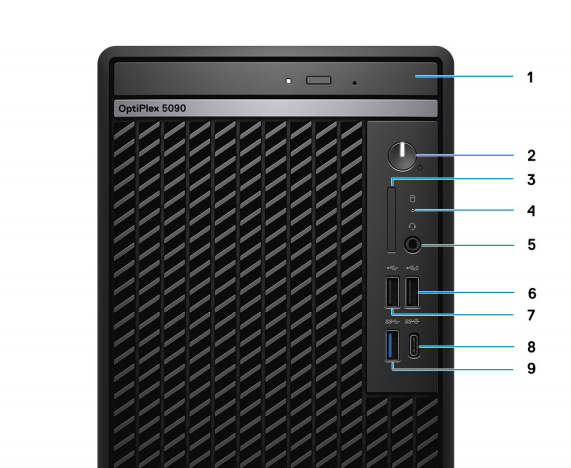

Ports
|
Tower: Front: 2 USB 2.0 ports 1 USB 3.2 Gen 1 Type-A port 1 USB 3.2 Gen 2 Type-C? port 1 Universal Audio Jack Rear: 2 USB 2.0 ports with Smart Power On 4 USB 3.2 Gen 1 Type-A port 1 RJ45 Ethernet port 1 re-tasking Line out/Line in audio port 2 DisplayPort 1.4 ports 1 VGA Port/DisplayPort 1.4 Port/HD 2.0b Port/ USB 3.2 Gen2 Type-C? Port with Alt-mode (optional) 1 Serial and 2 PS2 slot (optional)
|
|
Optical Drive
|
Tower: 8x DVD-ROM 8x DVD+/-RW
|
|
Slots
|
Tower: 1 SD-card slot (optional) 1 full-height Gen 4 PCIe x16 slot 1 full-height Gen 4 PCIe x4 slot openend 2 full-height PCIe x1 slots 1 M.2 2230 slot?? 1 M.2 2230/2280 slot for SSD 4 SATA slots for 2.5-inch HDD/SSD, and slim Optical Drive
|
|
Primary Hard Drive
|
Tower: 2.5-inch, 500 GB, 5400 RPM, SATA HDD 2.5-inch, 1 TB, 5400 RPM, SATA HDD 2.5-inch, 2 TB, 5400 RPM, SATA HDD 2.5-inch, 500 GB, 7200 RPM, SATA HDD 2.5-inch, 1 TB, 7200 RPM, SATA HDD 2.5-inch, 500 GB, 7200 RPM, SATA, HDD, Self-Encrypting, Opal 2.0, FIPS 3.5-inch, 500 GB, 7200 RPM, SATA, HDD 3.5-inch, 1 TB, 7200 RPM, SATA, HDD 3.5-inch, 2 TB, 7200 RPM, SATA, HDD 3.5-inch, 4 TB, 5400 RPM, SATA, HDD M.2 2230, 128 GB, PCIe NVMe Gen3 x4, Class 35 SSD M.2 2230, 256 GB, PCIe NVMe Gen3 x4, Class 35 SSD M.2 2230, 512 GB, PCIe NVMe Gen3 x4, Class 35 SSD M.2 2280, 256 GB, PCIe NVMe Gen3 x4, Class 40 SSD M.2 2280, 512 GB, PCIe NVMe Gen3 x4, Class 40 SSD M.2 2280, 1 TB, PCIe NVMe Gen3 x4, Class 40 SSD M.2 2280, 2 TB, PCIe NVMe Gen4 x4, Class 40 SSD M.2 2280, 256 GB, PCIe NVMe Gen3 x4, Class 40 SSD, self-encrypting drive M.2 2280, 512 GB, PCIe NVMe Gen3 x4, Class 40 SSD, self-encrypting drive M.2 2280, 1 TB, PCIe NVMe Gen3 x4, Class 40 SSD, self-encrypting drive
|
|
Power
|
?Tower: 260 W typical 85% Efficient PSU, 80 Plus Bronze 300 W typical 92% Efficient PSU, 80 Plus Platinum 360 W typical 92% Efficient PSU, 80 Plus Platinum
|
