AM-320240L8TNQW-C0H is a 3.5 inch diagonal a-Si TFT-LCD display screen product from AMPIRE, with a built-in WLED backlight, without backlight driver, without touch screen. This Ampire TFT-LCD is a 3.5 inch with Consumer Lcd Display, it have LCD Controller, Backlight Cable and Tft Color Screen. On the basis of latest version datasheet 20110329 which was released out on 3 29 2011, AM-320240L8TNQW-C0H supports display?320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.08(W)×52.56(H) mm, outline size of 77.8(W)×64.5(H)×6.15(D) mm, viewing area size of 73.7(W)×55.3(H) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, AM-320240L8TNQW-C0H can provides 500 cd/m2 display brightness 300:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 25 (Typ.)(Tr+Td) ms., thus presenting a palette of 65K/262K colors, also with performance of color gamut 57% (NTSC). This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. AM-320240L8TNQW-C0H utilizes 16-bit 8080 parallel as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

We are able to offer AD board for this display to support VGA video input.

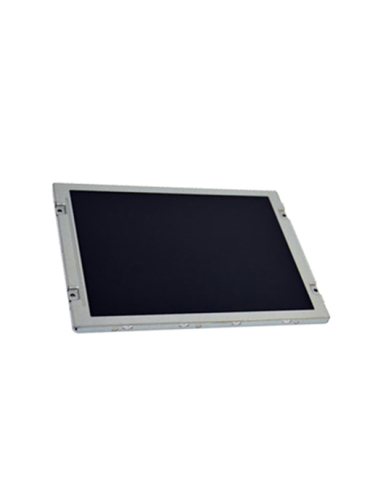

Product Picture:
