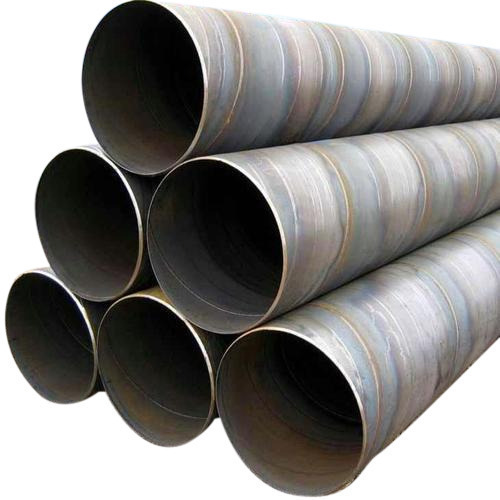

API 5L Oil Line Pipe Pipe Steel Pipe
API 5L Oil Line Pipe Pipe Steel Pipe
API 5L Oil Line Pipe Pipe Steel Pipe
API 5L Oil Line Pipe Pipe Steel Pipe
API 5L Oil Line Pipe Pipe Steel Pipe
API 5L Oil Line Pipe Pipe Steel Pipe

Video

1 / 6

API 5L Oil Line Pipe Pipe Steel Pipe

Options:

  • Φ400×6
  • Φ500×8
  • Φ500×10
  • Φ600×10
Get Latest Price

Basic Info

Model No.
Brand Name CHANGYI
standard Astm, Jis, Api, Din, Bs, Gb
Material 10#-45#, A53-A369, Q195-Q345, St35-St52
Section shape Round
place of origin China
application Fluid Pipe, Oil Pipe, Structure Pipe
Production Process Saw
Certification Bsi, Ce, Ul, Api
Special tube Api Pipe
Whether alloy Non-Alloy
tolerance ±1%
Category Spiral Welded Pipe, Welded Steel Pipe
Processing Service Welding, Cutting, Punching
Outer Diameter 219.1mm
Thickness 3.2 - 30 mm
Length Customized
Surface Treatment Black painting
Oiled or Non-oiled: Slightly Oiled
usage Low pressure liquid, water, gas, oil, piling pipe
MOQ 10 Tons
Secondary Or Not Non-secondary
Invoicing by actual weight
Delivery Time 15-21 days
Show More

Product description


API 5L generally refers to line pipe--API 5L line pipe, the line pipe is to transport the oil, steam and water extracted from the ground to the oil and gas industry enterprises through the line pipe. The line pipe includes seamless pipe and welded steel pipe. The ends have flat ends, threaded ends and socket ends; the connection methods are welding, coupling connection, socket connection, etc. With the development of pipeline steel plate technology and the progress of welded pipe forming and welding technology, the application scope of welded pipes for pipelines is gradually expanding, especially the advantages of welded pipes in the range of large diameter group spacing are more obvious. It occupies a leading position in the field of line pipes, and the varieties include onshore line pipes and subsea line pipes.
The production of API5L line pipe adopts the micro-alloying heat treatment process. The production cost of stainless steel seamless pipe is obviously higher than that of welded pipe, and with the increase of steel grade, such as the limit on carbon equivalent of steel grade line pipe above X80, the production cost of seamless steel pipe is significantly higher than that of welded pipe. Conventional processes are difficult to meet user requirements; all 12Cr1mov alloy pipe manufacturers are carrying out scientific research work to improve the corrosion resistance of their line pipes and to maintain stable performance in low temperature and high temperature environments.

1




Product Name

Pipeline Steel Pipe

Standard

ASTM、API、DIN、GB、JIS、bs

Material

Carbon Steel

Technology

Hot Rolled ,Cold Rolled,SSAW

Tolerance

Control with in the standard, OD:+/-1%, WT:+/-5%

Chemical Composition

C:≤0.25
Mn:≤0.95
P:≤0.05
S:≤0.06
Cr:≤0.4
Cu:≤0.4

Mechanical Property

σb/MPa≥:330
σs/MPa≥:205
δ5(%)≥:24

Application

Fluid transportation, machining and manufacturing of mechanical parts

Payment Terms

1.FOB 30%T/T,70% Before shipment
2.CIF 30% Pre-payment , Balance must be paid before  shipment
 3.Irrevocable 100% L/C at sight

Third Party Inspection

SGS ,BV, MTC

Advantages

1.Short delivery time

2.Quality assurance

3.Competitive price,

4.Free Sample

Delivery Time

Within 25 days after receipt of advance payment

2

chanpinzhanshi


H107fbbed66e542a39c36ee8c494504cbT

3

11

4

33

5

baozhuang11

6

Q: Are you a manufacturer?
A: Yes, we are steel pipe manufacturer, we have our own factory, located in Shandong, China.

Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we can accept BV, SGS third inspection .
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So we can give the best offer.
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
