ASTM 321 Square Structural Welded Stainless Steel ERW Pipe
?
Product Description
ASTM 321 Square Structural Welded ERW Pipe is a square electric resistance welded (ERW) pipe made from 321 stainless steel. 321 is a heat-resistant, titanium-stabilized austenitic alloy known for its good corrosion resistance and high-temperature strength. It is used in a variety of structural applications, including fencing, scaffolding, and general fabrication, and is favored for its strength, corrosion resistance, and toughness at both high and low temperatures.
?
Material Properties (321 Stainless Steel)
Stabilized Alloy: Titanium alloy is stabilized to prevent carbide precipitation, providing resistance to intergranular corrosion.
High-Temperature Strength: Maintains excellent strength and toughness at high temperatures.
Corrosion Resistance: Provides good overall corrosion resistance.
Low-Temperature Toughness: Maintains strength and toughness even at extremely low temperatures.
?
Fabrication Process (ERW)

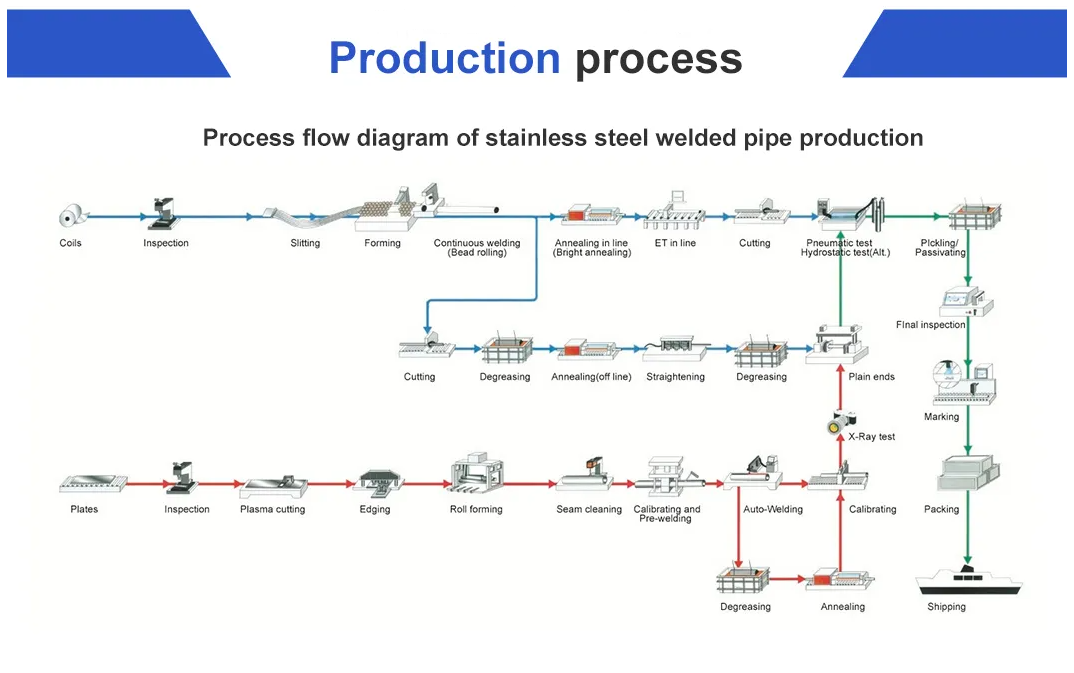

Electric Resistance Welding: Continuous steel strip is formed into a pipe and joined by passing an electric current through the weld.
Advantages: ERW pipe is known for its uniform thickness, strength, and performance in high-pressure applications.
?
Structural Applications
Construction: Used for fencing, scaffolding, and other general construction applications.
High-Temperature Service: Suitable for high-temperature applications such as furnace components and exhaust systems.
Versatile Fabrication: Its excellent properties make it a versatile choice for a wide variety of fabricated components.
?
Key Features
Shape: Square, providing a flat surface to meet a variety of structural and design needs.
Standard: ASTM A312, General Specification for High-Temperature Stainless Steel Pipe. Grade: 321, selected for its high temperature and corrosion resistance.
?
|
Standard
|
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,
GB13296 |
|
|
Material
|
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,
202 |
|
|
Surface
|
Polishing,annealing,pickling,bright
|
|
|
Type
|
hot rolled and cold rolled
|
|
|
stainless steel round pipe/tube
|
||
|
Size
|
Wall thickness
|
1mm-150mm(SCH10-XXS)
|
|
Outer diameter
|
6mm-2500mm (3/8"-100")
|
|
|
Delivery time
|
Prompt delivery or as the order quantity.
|
|
|
Package
|
Standard export seaworthy package,or as required.
|
|
|
Application |

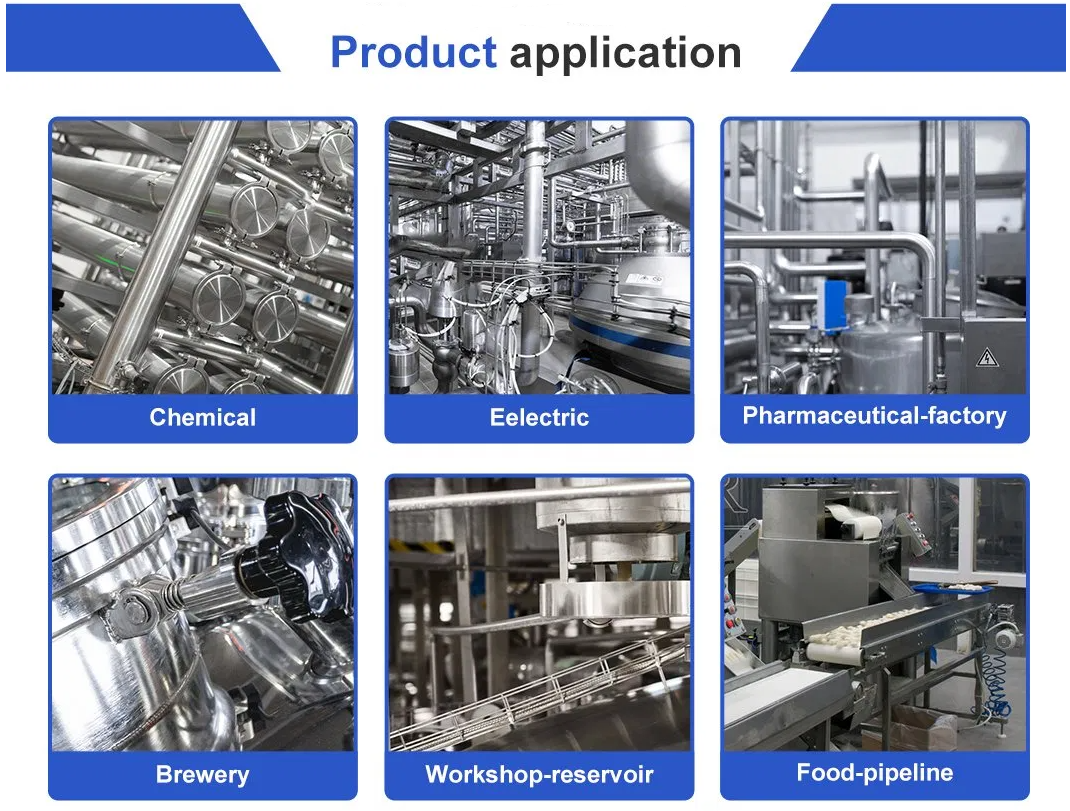

Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper
making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required. |
|
|
Contact
|
If you have any questions,please feel free to contact me.
|
|
|
Container size |
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
|

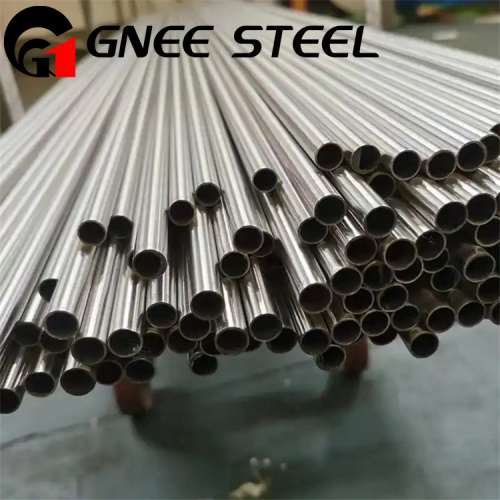

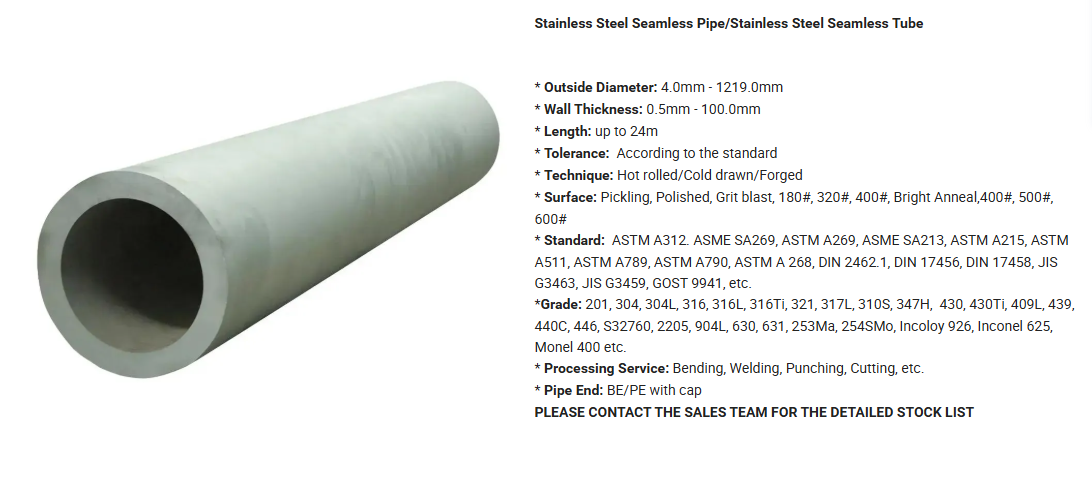

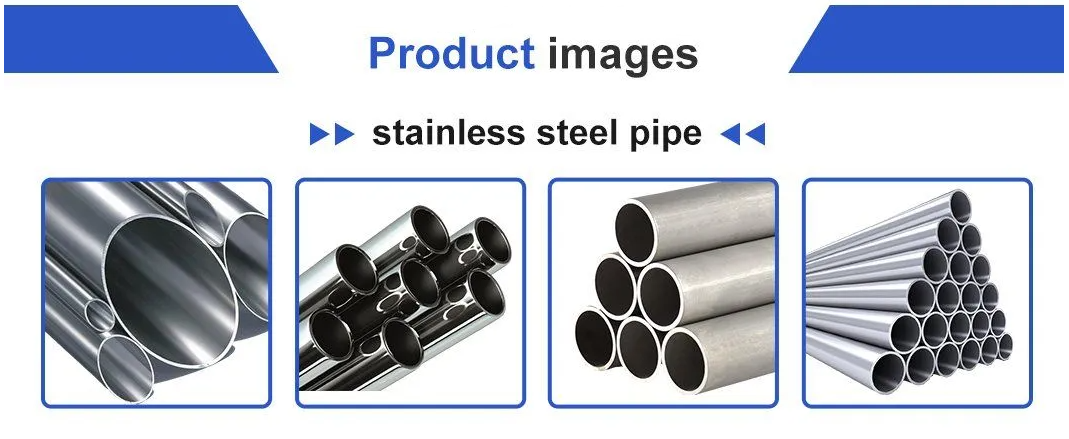

Stainless steel pipe is a hollow, long steel section primarily used for industrial pipelines and mechanical components in the petroleum, chemical, medical, food, construction, and instrumentation industries.
Seamless pipe outer diameters range from 6 mm to 762 mm, with wall thicknesses from 0.5 mm to 70 mm.
Annual production is 35,000 tons.
This type of stainless steel pipe offers the following characteristics:
High quality: Smooth, bright, and clean surface.
Precise dimensional tolerances: Precise measurements ensure consistent performance.
High strength: Durable and reliable. High corrosion resistance: Ensures long-lasting performance even in harsh environments.
?

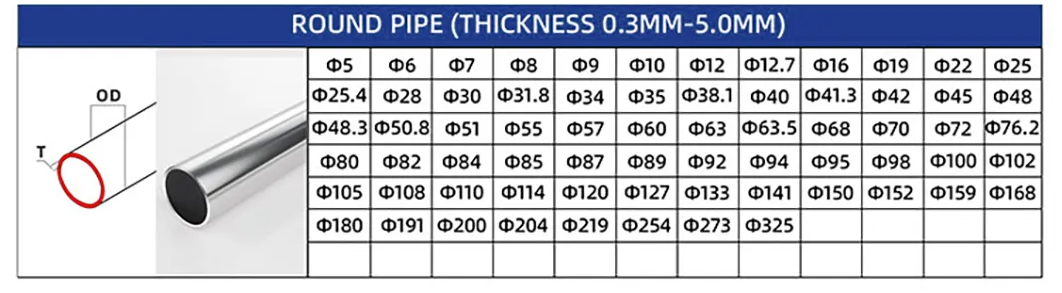

Common round tube sizes (thickness 0.3mm-5.0mm):?Φ5, Φ6, Φ7, Φ8, Φ9, Φ10, Φ12, Φ12.7, Φ16, Φ19, Φ22, Φ25, Φ25.4, Φ28, Φ30, Φ31.8, Φ34, Φ35, Φ38.1, Φ40, Φ41.3, Φ42, Φ45, Φ48, Φ48.3, Φ50.8, Φ51, Φ55, Φ57, Φ60, Φ63, Φ63.5, Φ68, Φ70, Φ72, Φ76.2, Φ80, Φ82 Φ84, Φ85, Φ87, Φ89, Φ92, Φ94, Φ95, Φ98, Φ100, Φ102, Φ105, Φ109, Φ110, Φ114, Φ120, Φ127, Φ133, Φ141, Φ150, Φ152, Φ159, Φ168, Φ180, Φ191, Φ200, Φ204, Φ219, Φ254, Φ273, Φ325,
?

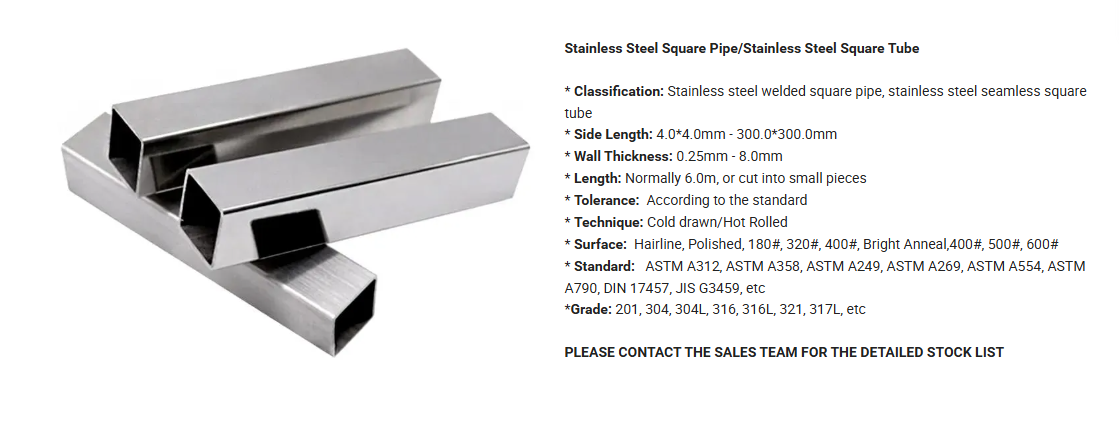

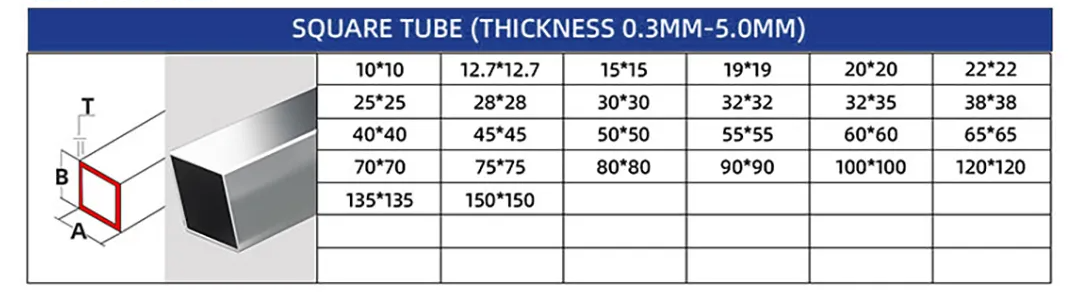

Common sizes of square tubes (thickness 0.3mm-5.0mm)：10*10, 12.7*12.7, 15*15, 19*19, 20*20, 22*22, 25*25, 28*28, 30*30, 32*32, 35*35, 38*38, 40*40, 45*45, 50*50, 55*55, 60*60, 65*65, 70*70, 75*75, 80*80, 90*90, 100*100, 120*120, 135*135, 150*150
?

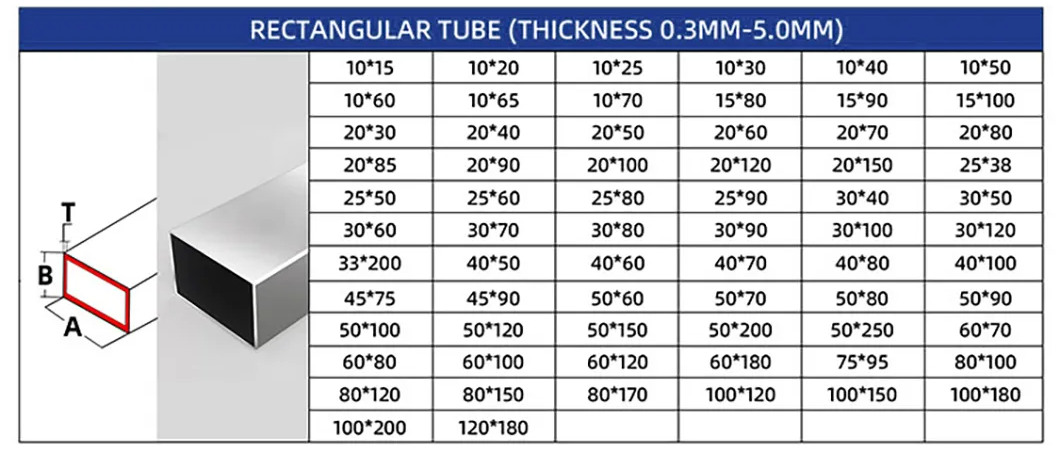

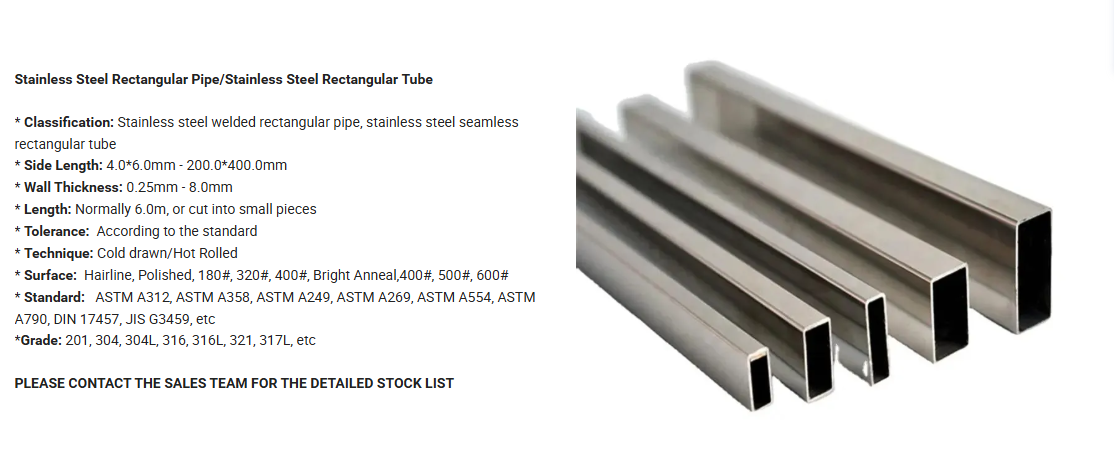

Common Rectangular Tube Sizes (Thickness 0.3mm-5.0mm)：10*15, 10*20, 10*25, 10*30, 10*40, 10*50, 10*60, 10*65, 10*70, 15*80, 15*90, 15*100, 20*30, 20*40, 20*50, 20*60, 20*70, 20*80, 20*85, 20*90, 20*100, 20*120, 20*150, 25*38, 25*50, 25*60, 25*80, 25*90, 30*40, 30*50, 30*60, 30*70, 30*80, 30*90, 30*100, 30*120, 33*200, 40*50, 40*60, 40*70, 40*80, 40*100, 45*75, 45*90, 50*60, 50*70, 50*80, 50*90, 50*100, 50*120, 50*150, 50*200, 50*250, 60*70, 60*80, 60*100, 60*120, 60*180, 75*95, 80*100, 80*120, 80*150, 80*170, 100*120, 100*150, 100*180, 100*200, 120*180
?
| Austenitic Stainless Steel | 201, 301, 304, 305, 310, 314, 316, 321, 347, 370, etc |
| Martensitic Stainless Steel | 410, 414, 416, 416, 420, 431, 440A, 440B, 440C, etc |
| Duplex Stainless Steel | S31803, S32101, S32205, S32304, S32750, etc |
| Ferritic Stainless Steel | 429, 430, 433, 434, 435, 436, 439, etc |
?
| Grade | Chemical?Composition?(%) | |||||||
| c | si | Mn | P | s | Ni | Cr | Mo | |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316Ti | ≤0.08 | ≤0.75 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 19-22 | 24-26 | ? |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 16 .0-1 8.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-1 9.0 | - |
| 405 | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 0.6 | 11.5-14.5 | ? |
| 409 | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 0.6 | 11.5-14.5 | ? |
| 409L | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 0.6 | 11.5-14.5 | ? |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
| 420 | ≤0.05 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 0.75 | 12-14 | 0.5 |
| 430 | ≤0.12 | ≤1.0 | ≤1.0 | ≤0.04 | 0.03 | 0.5 | 16-18 | 0.75 |
| 444 | ≤0.025 | ≤1.0 | ≤1.0 | ≤0.04 | 0.03 | 1 | 17.5-19.5 | 1.75-2.5 |
| 904L | ≤0.02 | ≤1.0 | ≤2.0 | ≤0.045 | 0.035 | 23-28 | 19-23 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.03 | 0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.0 | ≤0.035 | 0.02 | 6.0-8.0 | 24-26 | 3.0-5.0 |
?

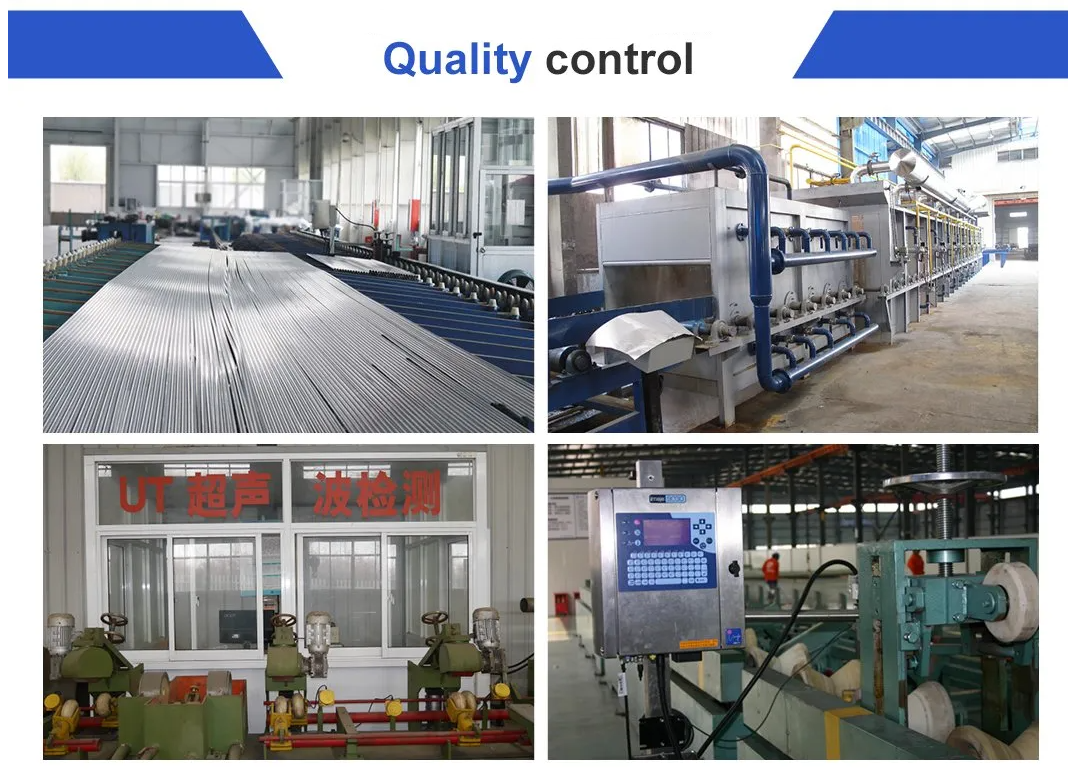

Gnee Steel Stainless Steel Pipe Factory, established in 2008, currently occupies over 35,000 square meters of land dedicated to the production of stainless steel products. We produce 201, 304, and 316 stainless steel pipes. We can produce pipes in a variety of sizes, including round, square, rectangular, and oval, to meet global market demands. Our primary product is stainless steel grooved pipes. We currently operate 162 stainless steel pipe production lines.
?
Our monthly production capacity for welded stainless steel pipes is 5,000 tons. Our stainless steel pipes can be finished in mirror finishes of #600 and #800, and satin finishes of #180, #240, #320, and #400. We also offer color coating and electroplating to achieve various colors.
