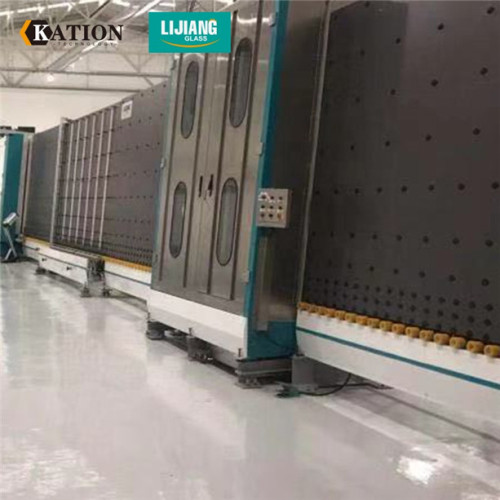

Production overview of  Auto Flat Insulating Low-E Double Glass Machine

Washing section

1.The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.

The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.

2. Noise reduction device

The noise can be controlled below 90 decibels by using nylon gear and sponges.



3. Water heating system

 Adopts air heating system, use soft water to wash glass clearly.

4. Automatically recognize glass thickness

1). There is a universal joint device, when the glass thickness was changed, the wind knife will move forward and backward to adjust the distance so that the relative distance between the wind knife and the glass is constant, so as to avoid damage to the glass due to the changes of the glass thickness.

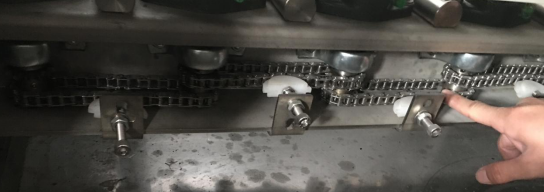

1) . There are chain gears on both sides of the bottom of the glass to actively transfer the glass which can keep a fast speed, not only the large size, small size glass can also be passed quickly.

Inspection section

1.The checking part uses LED tubes to check whether the glass is clean or not.

Main feature:

Automatic detect low-e & high performance glass

Wash online and offline low-e glass, automatically recognizes Low-e film

The air knife can automatically adjust the width according to the glass thickness

Using intelligent intermittent energy-saving working methods

Hierarchical type washing system

Water tank automatic temperature control, water replenishing system

European silencer system&stainless steel drying system

Technical data

Max.glass size（Optional）	2500*3500mm
Min.glass size	280*450mm
Glass thickness	3-15mm
Glass washing speed	2-10m/min
Glass conveyor speed	15m/min
Washing brushes	3 pairs
Water supply	Water consumption:0.5t/h conductivity：40μs/cm
Air supply	Flow: 0.8m/min
Air pressure	≥0.8MPa
Total power	3P 31KW

Electrical parameters

NAME	ORIGIN	BRAND
PLC	Germany	SIEMENS
Low voltage electrical appliance	Germany	SIEMENS
Frequency converter	Germany	SIEMENS
Photoelectric switch	Korea	AUTONICS
Button and indicator light	France	SCHNEIDER
Touch screen	Taiwan	WEINVIEW
Intermediate relay	Japan	OMRON
Transfer motor	Taiwan	LINHAI
Brush motor	China	QINGHUA
Water pump	China	LINGXIAO
Pneumatic Components	Taiwan	AIRTAC
