Automatic CNC Machining Parts Lathe Cutting Lathe Machine
$20450.00
≥1 Set/Sets
Spindle bore:
- 56mm
Maximum turning diameter (mm):
- 360mm
Options:
- Max. cutting legth 500/750mm
- Rail width 284mm
- Spindle nose A2-5,A2-6
- X/Z rapid speed 20/20m/min
Basic Info
| Model No. | LX500 |
|---|---|
| Brand Name | BORUI CNC |
| status | New |
| Types of | Horizontal |
| Maximum turning diameter (mm) | 360 |
| Maximum workpiece length (mm) | 500 |
| Processing capacity | Medium Duty |
Product description

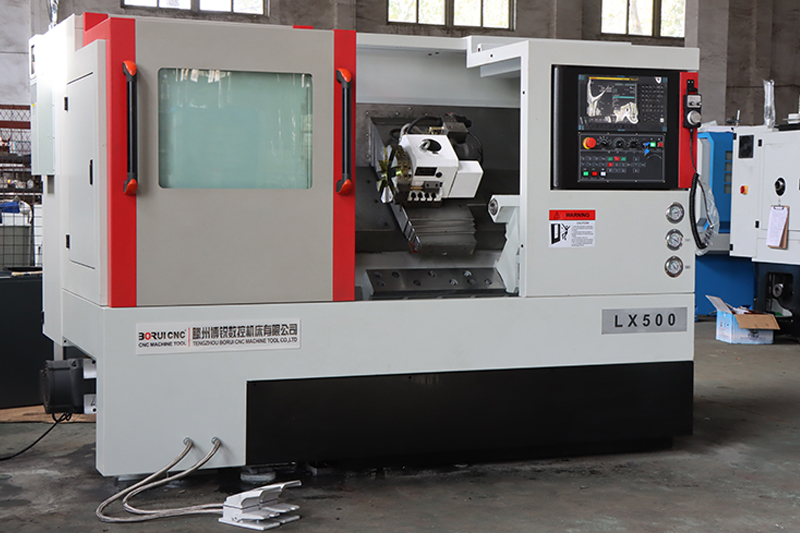

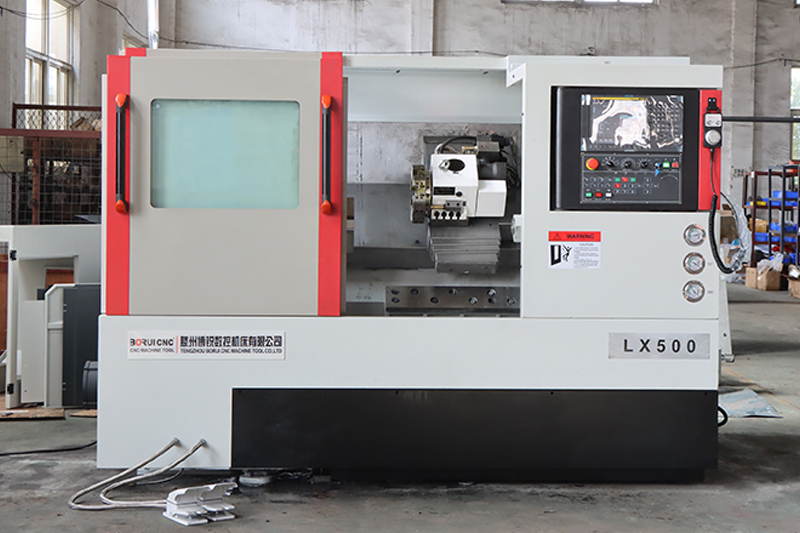

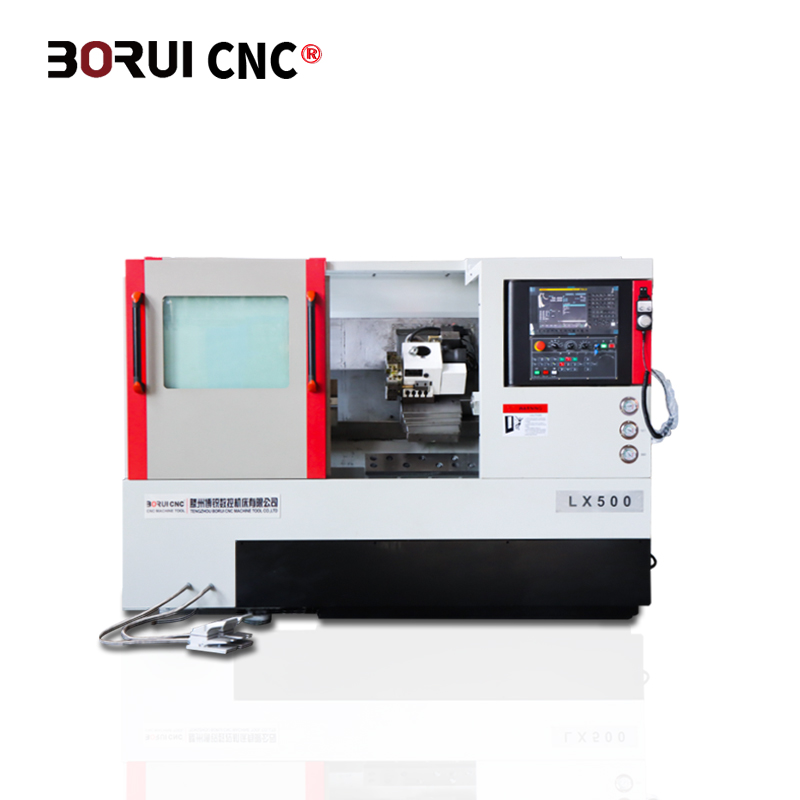

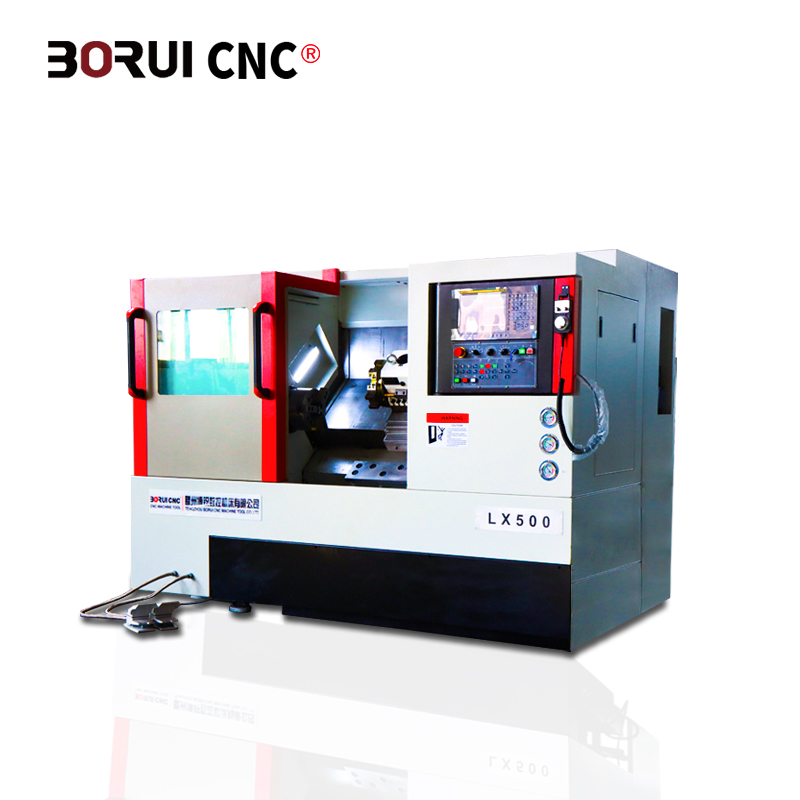

Good quality factory directly CNC Slant Bed Lathe LX500 CNC Lathe Machine
Products Description

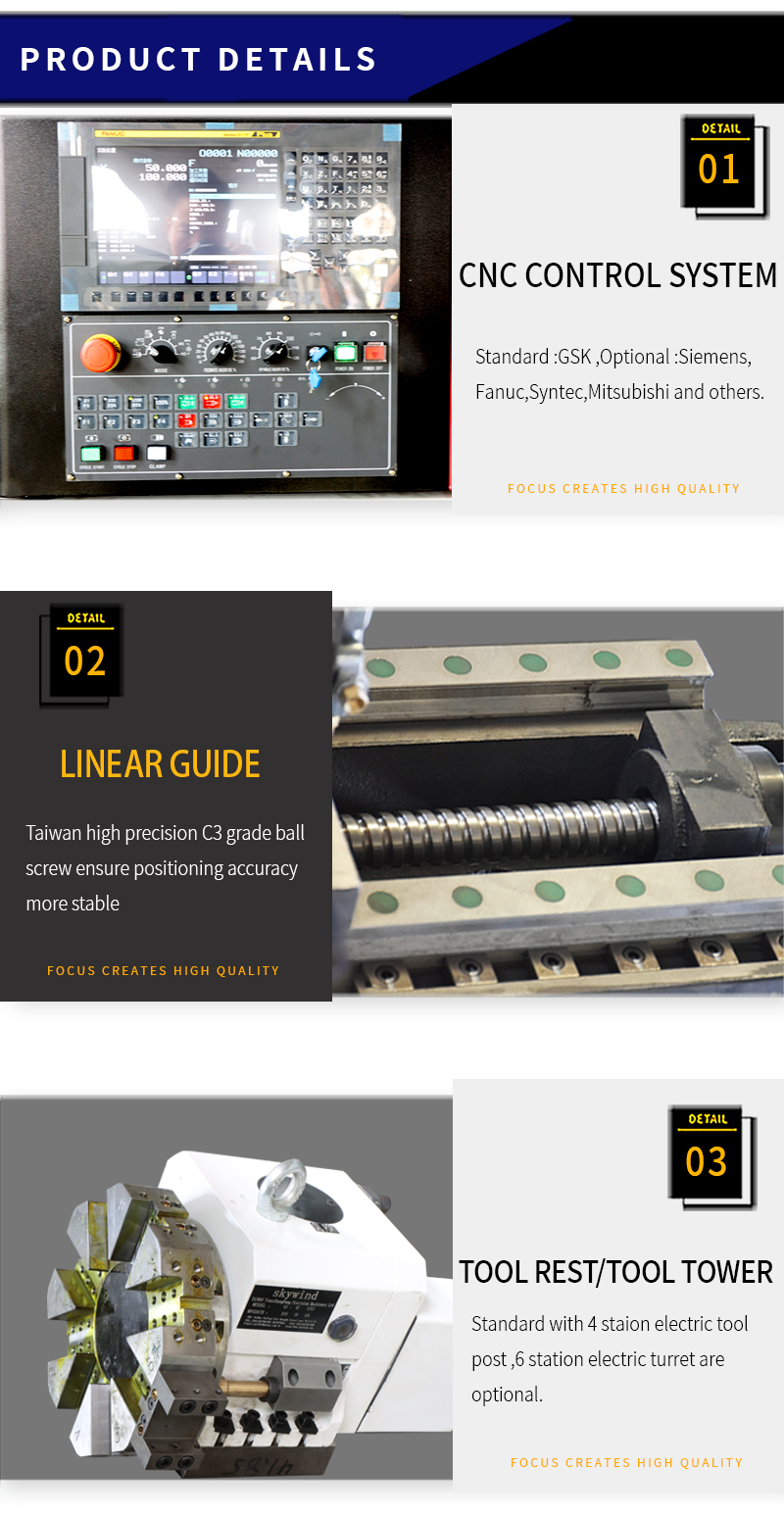

Features:High precision slant CNC lathe with Taiwan screw linear guideway
Monoblock cast iron of the whole machine ensure high rigidity
Technical Parameter
| Model | LX300L | LX400L | LX500L |
| Max. swing oner bed | φ300mm | φ320mm | φ360mm |
| Max. swing over carriage | φ140mm | φ180mm | φ210mm |
| Max. cutting legth | 350mm | 450mm | 500/750mm |
| Rail width | 260mm | 284mm | 284mm |
| Spindle nose | A2-4 | A2-5 | A2-5,A2-6 |
| Spindle bore | φ46mm | φ56mm | φ56mm,(62mm) |
| Taper of spindle bore | 1:20 | 1:20 | 1:20 |
| Chuck | 5" | 6" | 6" , ( 8") |
| Range of spindle speed | 150-6000rpm | 150-4200rpm | 150-4200rpm |
| X axis travel | 150mm | 190mm | 210mm |
| Z axis travel | 350mm | 450/650mm | 500/750mm |
| X/Z rapid speed | 20/20m/min | 20/20m/min | 20/20m/min |
| Hydraulic turret | 8 | 8 | 8 |
| Max. section of tool | 16*16mm | 20*20mm | 20*20mm |
| Stroke of tailstock sleeve | 60mm | 80mm | 80mm |
| Diameter/ Hole of tailstock sleeve | φ40mm/MT3 | φ60mm/MT4 | φ60mm/MT4 |
| Main motor power | 4KW | 4KW/5.5KW | 5.5KW/7.5KW |
| Coolant pump power | 370W | 370W | 370W |
| Overall dimensions L*W*H | 1800*1250*1550mm | 2300*1550*1750mm | 2630/2910*1550*1750mm |
| Packing size L*W*H | 2000*1400*1750mm | 2500*1750*2000mm | 2830/3130*1750*2150mm |
| N.W/G.W | 1750KG/2000KG | 2200KG/2600KG | 2700KG/3000KG |

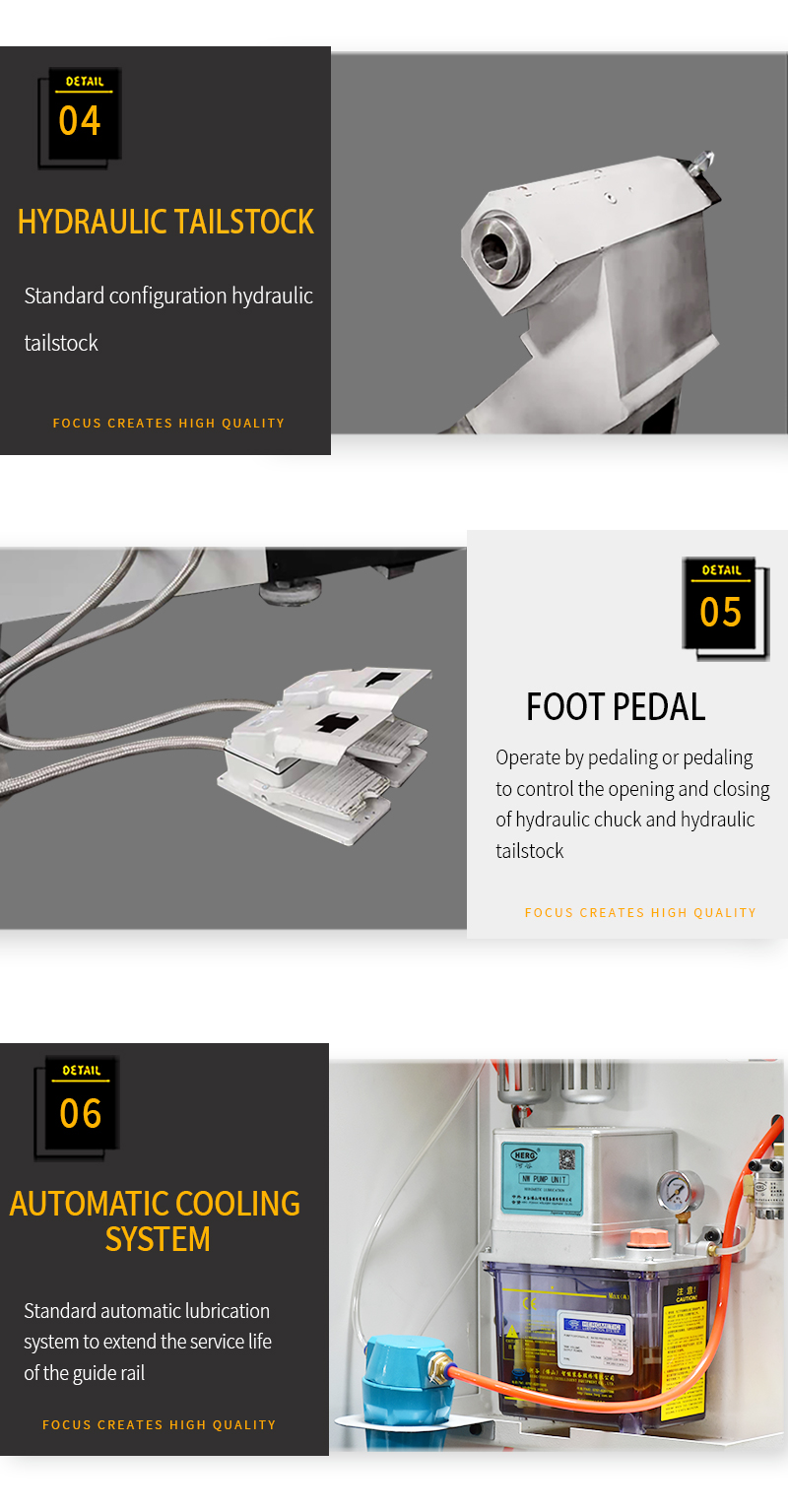

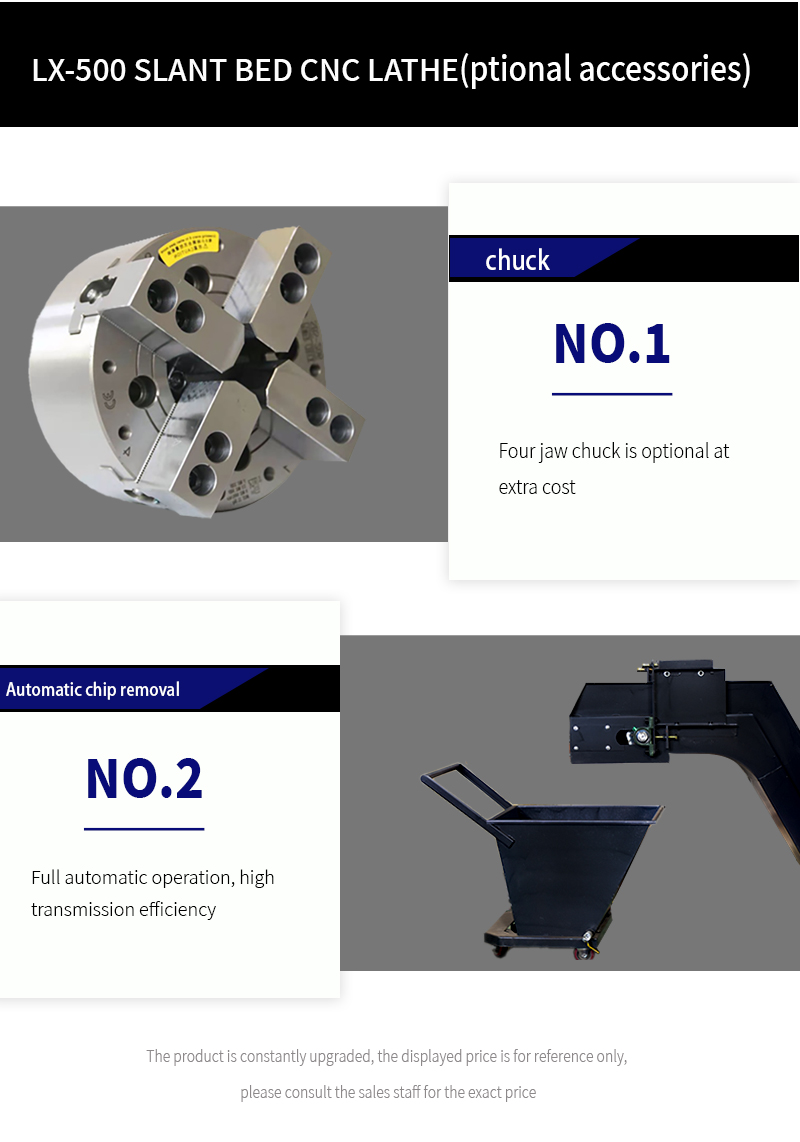

Details Display
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we c
