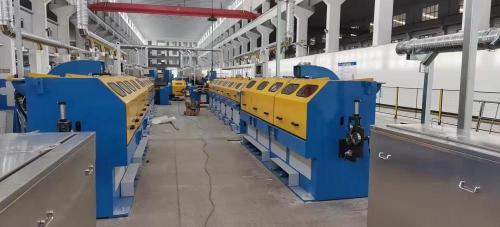

The Flux cored wire drawing machine line as belows

(1) slitting shearing machine: unreeling machine-shearing machine-storage rack-take up machine

(2) steel strip rewinding: pay off→constant tensile rack→Φ800 spool take up

(3) forming and rough drawing machine: spool tension active pay off → constant tensile rack→ultrasonic cleaning machine→rolling speed detection system→ forming into U shape→servo powder adding system→forming→forming and reduce diameter→ LZ6/500 drawing machine →spool take up

(4) finish drawing: spool passive pay off → LZ10/400 reduced diameter→polishing machine →oiling machine→spool take up (different size use the different number of block for finish)

(5)the layer winding machine : about  15-25KG each packing (can design as per clients needs

We,Wanyi Machine factory can provide the whole flux cored wire forming and drawing machine line.

Second  flux-cored wire Production line main processing

Our factory main products are:
1. flux cored welding wire production(forming)machine line
2. CO2 gas shield and submeged arc welding wire production machine line
3. high middle low carbon steel wire drawing machine line
4 stainless steel spring wire and annealed soft wire production machine line
5. nail wire,reticle wire and galvanized wire drawing machine line
6. Portion equipment for steel cord;
7. Various kinds of mating equipment and products, for example various drawing molds, all kinds of welding wires, all type of parts etc.
