Automatic Corn Chips Packing Machine With Nitrogen

1 / 6

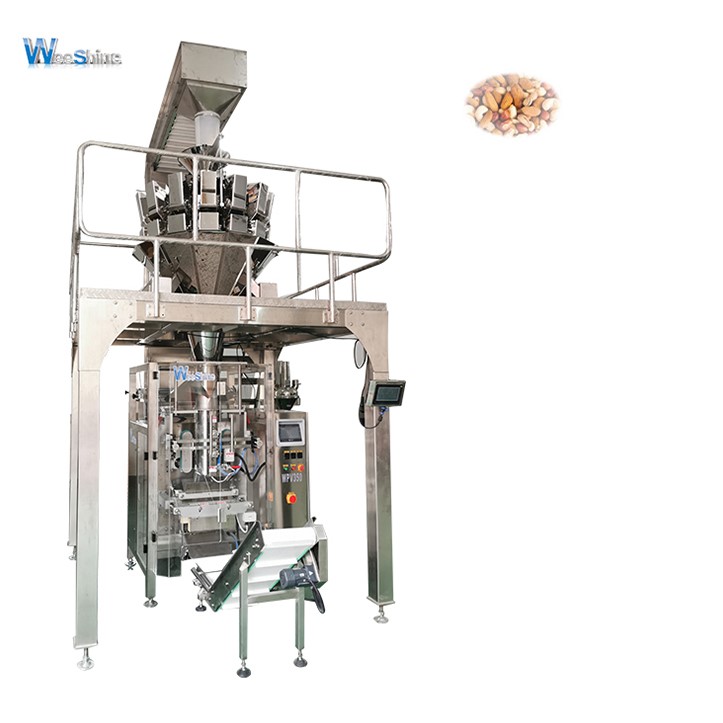

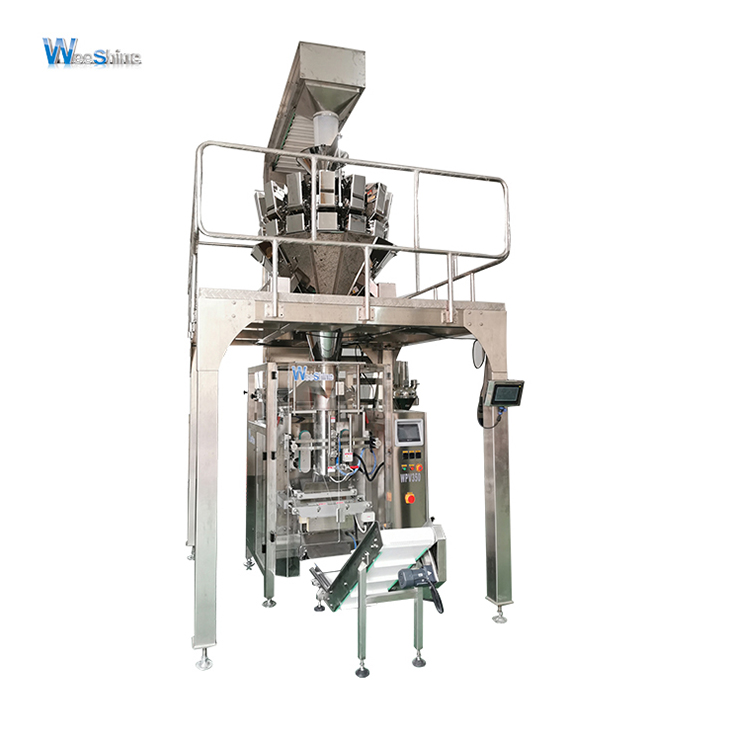

Automatic Corn Chips Packing Machine With Nitrogen

$8000.00 ~ $32000.00 / Set/Sets

power:

AC220V,50-60HZ

Options:

WPV200
WPV250
WPV350
WPV160
WPV160S
WPV200T

Get Latest Price

Basic Info

Model No.
Brand Name
Type	Multi-Function Packaging Machine
Applicable Industries	Food & Beverage Factory, Food Shop, Flour Snack Industry, Snack Factory
After Warranty Service	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service?Location	Philippines, Indonesia, Uae
Showroom Location	France, Philippines, India, Uae
Condition	New
function	Filling, Wrapping, Labeling, Sealing, Packing,Sealing, Bag Forming Filling Sealing And Packaging
application	Food
Packaging Type	Cartons, Cans, Bottles, Stand-Up Pouch, Bags, Film, Foil, Pouch, Pe Bag&Sachet&Chain-Bag, Pillow, Sachet, Pouch,Gusseted,Three Side Seal,Terahedron
Packaging Material	Plastic, Laminated Film,Pe
Automatic Grade	Automatic
Driven Type	Electric, Servo Motor, Pneumatic
Brand Name	Weeshine
Dimension(LWH)	Can Be Customized
After-sales Service Provided	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Warranty	1 Year
Key Selling Points	High Productivity
Marketing type	New Product 2020
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	1 Year
Core components	Motor
Production Capacity	25bag/Min
Bag Size	L:55-470mm W:140-345mm
Film width	320-720mm
Packing speed	15-40bags/Min.
Machine Material	Stainless Steel 304
After-sale Service	Engineers Available To Service Overseas.
Keywords	Vertic Packing Machine,Automatic Chips Packing Machine
Voltage	220v
Place of Origin	Shanghai, China
Certification	Ce&Iso9001

Product description

Products Description

Applications

Weeshine WPV series packing machine suitable for automatically weighing and packaging all kinds of granule, block, strip, sheet and irregular shape material products,such as puffed food, candy, biscuits, quick frozen products, snacks, seeds, nuts, medicines, pet food, hardware items, etc.

Model	WPV200	WPV250	WPV350
Bag size	(L) 80-300mm (W) 80-200mm	(L) 100-370mm (W) 100-250mm	(L) 150-470mm (W) 150-350mm
Film width	Max.420mm	Max.520mm	Max.720mm
Film thickness	0.04-0.10mm	0.04-0.10mm	0.04-0.10mm
Measuring range	Max.1000ml	Max.2000ml	Max.5000ml
Packing speed	20-90 bags/min	20-80 bags/min	10-40 bags/min
Air consumption	0.65Mpa, 0.4m3/min	0.65Mpa, 0.4m3/min	0.65Mpa, 0.6m3/min
Packing material	All laminated film such as PET/PE, PET/AL/PE, Nylon/PE, etc.; PE (confirm when order)
Power supply	220V/380V 50-60Hz	220V/380V 50-60Hz	220V/380V 50-60Hz
Power	2.8 KW	3KW	4 KW
Dimension	L1320 x W1050 x H1750mm	L1520 x W1170 x H1770mm	L1650 x W1400 x H2080mm
Weight	450kg	550kg	800kg

Main Feature

1. PLC and HMI controller, servo motor film driving system, easy to operate and maintain.
2. Advanced photocell tracking system to ensure the cutting position accuracy.
3. Separate circuit boxes for power control and pneumatic control, low noise, good tightness and much more stable for machine working.
4. Finish the procedure of measuring, filling, bagging, gas flushing (exhausting), sealing, cutting and counting automatically.
5. Have error indicating system, helping handle the trouble immediately.
6. The device of gusset bag, linked bag, punching device for optional.

Cominend Parts

Details Images

Application

Company Profile

About Us

1.A manufacturer of automatic packaging machinery and packaging production line, also automatic conveying systems. 2.With a well-educated excellent technician team has more than 16+ years of experience. 3.With our own factory located in Shanghai, can provide OEM, ODM to our quality customers. 4.Workers have rich experience in comissioning and assembly at domestic and abroad. 5.Provide pre-sale and after-sale services for customers all over the world. 6.Our sales markets in Europe, Southeast Asia, Middle East and others more than 50+ countries. 7.Mainly focus on producing automatic packaging and conveyor system for different kinds of granule strip flaky materials. 8.Applications for nuts, chocolates, candies, biscuits, potato chips, dry fruits, seeds, puffed food, quick frozen products, pet food, baby snacks, medicine etc. -and powder products, such as flour, milk, rice, coffee powder, spices, seasonings, detergent powder, sugar, salt etc. 9.Provide customized roll film, premade pouch and cans packaging solutions and all life support. 10.Weeshine's packaging solutions will bring you extraordinary experience, to reach win-win cooperation.

Process&Delivery

FAQ

1. Customer: How do I know the packing machine model is suitable for my product?
Weeshine: Please advise all the below details of your product and we will check for you.

(1.)Product details
(2.).Bag shape
(3.) Bag size for each weight bag: Film width, bag width & bag length
(4.) Filling weight per bag
(5.)Packing film material
(6.) Production capacity per hour.
(7.) Other requirements

2. Customer: How about the delivery time?
Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working days for the small packing machines. It takes longer time for the large-scale machine.

3. Customer: Can you offer some video or pictures of the packing machine?
Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference if you could send some samples to us.

4. Are you factory or trading company?
Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing R&D and production over 16+years.

5. How can we make sure about the machine quality after we make the payment?
Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself before shipping as well.
