Automatic Floor Decking Panel Rolling Forming Machine

Company information:

     We are the manufacturer specialized in various cold forming machines and automatic production lines. Main products are: Roll Forming Machine,Round Gutter Roll Forming Machine, Roller Shutter Door Rolling Forming Machine, Used Door Frame Rolling Forming Machine, Decking Floor Panel Roll Forming Machine, Highway Guardrail Cold Roll Forming Machine

      We have many clients in the world, the United States, Russia, Ukraine, Brazil, Bolivia,Mexico, Thailand,India,Vietnam,Singapore,Kenya,South Africa,and etc

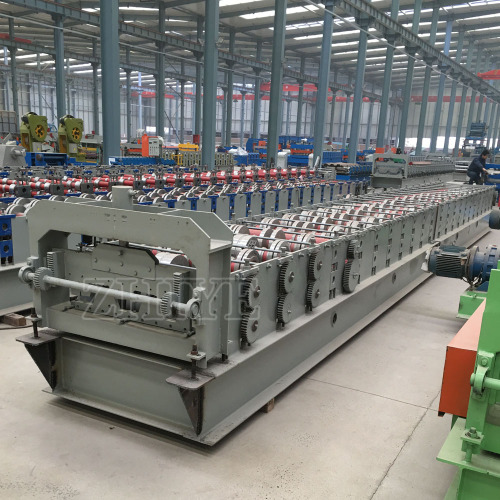

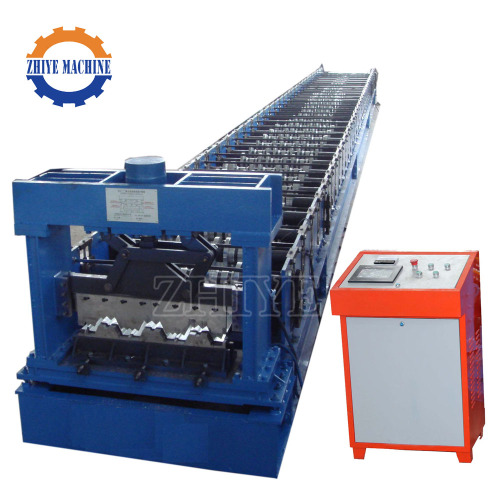

Product Description of  High Quality GI Steel Floor Decker Forming Machine

1.Abstract of the High Quality GI Steel Floor Decker Forming Machine
  Panels produced by this machine are mainly used as the floor decking in Russia. It has features of high wave, high strength, high degree automatically producing, lower cost and so on. This panel is set up with concrete, which has good adhesiveness. This not only can save steel moulding plate, but also can decrease the load capacity of floor decking. Therefore, steel quantity of the whole project is decreased and can save money surely.
2.Features of the High Quality GI Steel Floor Decker Forming Machine
(1)lower cost(2)high efficiency(3)reliable working (4)low energy consumption
3.Components of the High Quality GI Steel Floor Decker Forming Machinee

(1)Feeding platform(2)Automatic shearing system(3)Hydraulic system Computer control system (imported computer)(4)High-precision automatic counter,(5)Productivity: 10-18m/min, 3500 m2/8hs(6)Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel shee

4.Optional components of the High Quality GI Steel Floor Decker Forming Machine

(1)Manual uncoiler frame in different tons(2)Hydraulic automatic uncoiler

5.Working space and man for the High Quality GI Steel Floor Decker Forming Machine

(1)Ground-level land(2) ≥5T overhead travelling crane(3) Space for storing the material(4) Space for laying the machine(5) Road for vehicle moving

roof ridge cap forming machine

The parameters of  the High Quality GI Steel Floor Decker Forming Machine

No.	Item	Characteristic
1.	Processing Material	PPGI,GI
2.	Processing Thickness(mm)	0.6-1.6mm
3.	Main Frame/Middle plate	H400 Steel Beam / 20mm Steel plate
4.	Material of Rollers	45# steel, with hard chrome coated
5.	Diameter of Shaft	100mm
6.	Number of Rollers	26 stand rollers
7.	Production Speed	0-14m/min
8.	Roller Driven	Decelerating Motor+20A Chain Transmission

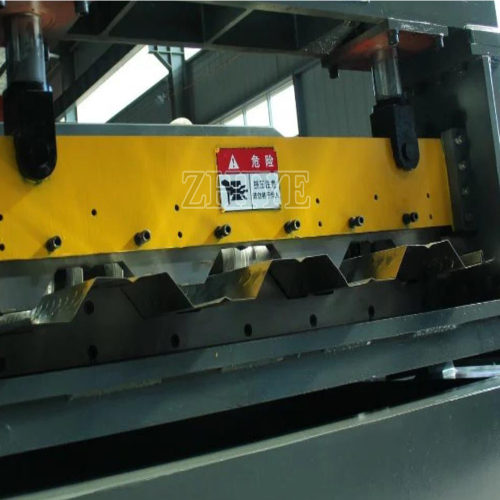

9.	Cutting Model	Hydraulic Profile Cutting
10.	Length Measurement	Encoder
11.	Control Style	PLC
12.	Operation Model	Button + Touch Screen
13.	Total Power	27.5kw
14.	Voltage	380V 50HZ or at buyer's request
15.	Testing Material	Q195

Packaging & Shipping

High Quality GI Steel Floor Decker Forming Machine can be packed into one 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

The Square Downpipe Roll Forming Machine;Z Channel Roll Forming Machines;Rain Downpipe Roll Forming Machine can be packed in 20 or 40 feet container.
