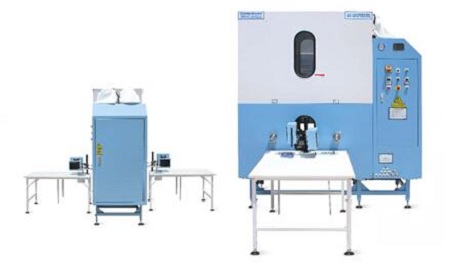

116C Machine is the flow down filling machine, with 2 pipes, work very fast and in lower cost.

Material Application: 90, 80 down.

Filling Port: Two under independent operations. Each panel piece can be set to 100 grid grams. It can save up to 100 sets of data for different panels.

Details:

Brand: Bealead

Model: 116C

Filling Pipes: 2

Application: Apparel, Commodity, Textiles

Material Application: 80%- 90% down

Weight: 300kg

Filling Storage: 5kg

Weighing Range: 0.2g- 2g

Feeding Unit Size: 2.05* 0.85* 2.2m

Overall Size: 2.05* 2.35* 2.25m

Min. Site Area: 2.5m* 3m

Main Specification

Voltage	220V	Air Tank	≥0.6m3
Air Pressure	0.6- 0.8MPa	Air Compressor Power	5.5KW
Min. Air Pressure	0.5MPa	Air Compressor Exhaust	≥0.65m3/min
Max. Power	2KW	Air Monitoring System	-
PPR Pipe	1 inch	Down Returning System	-
Pipe Distance	≤20m	Humidity Control System	-

Company Information

ChangShu Bealead Automatic Machine Co.,LTD, located in changshu, jiangsu ,china. Close to ShangHai Port, driving for 1.5hours, transportation convenient.

Our company is R&D manufacturer of intelligent device for clothing production. We are in leading

position in Down feather filling area, covered most of Chinese market, Bosideng, Luo Lai, UNI QLO, are our customers.

We also have agents overseas, and more than 20 technecians for after sales service. They could answer you and service you at the first time you need.

Our Factory

Exhibitions

CE Certificate
