Fresh milk collected from the dairy farm needs to be stored in the refrigeration tank at low temperature. In order to ensure the
rigor of the production line, it needs to be weighed and preliminarily filtered.
Search
Sign In Join Free
Video
1 / 7

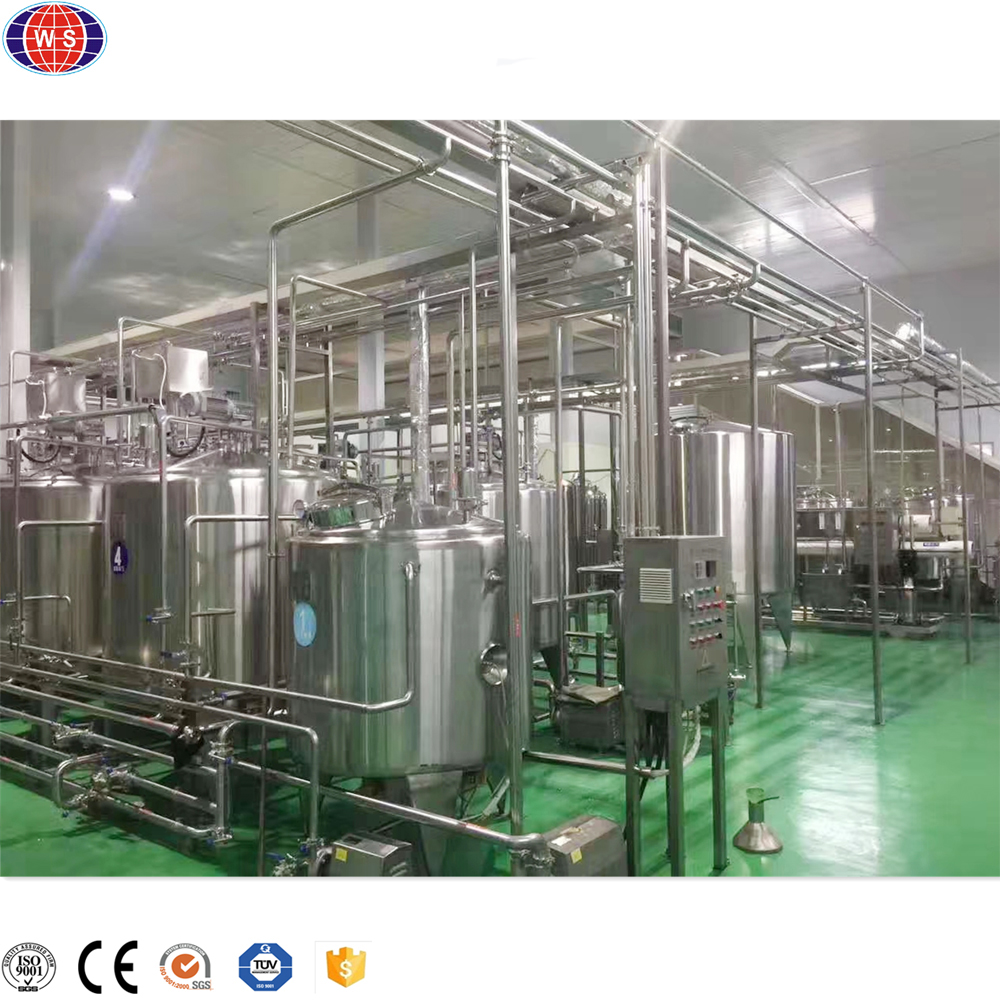

Automatic Milk Processing and Packaging Machine - UHT Production Line
$48000.00
≥1 set
$42000.00
≥3 set
Options:
- WSSG
- Processing Line
- Dairy products factory
Get Latest Price
You might also like
Basic Info
| Video outgoing-inspection | Provided |
|---|---|
| Machinery Test Report | Provided |
| Core components | Plc |
| Place Of Origin | Shanghai, China |
| Brand Name | WS |
Show More
Product description
Product Parameter
The milk processed by UHT production line can be stored for a long time without deterioration, and the milk quality is stable without refrigeration. It can be used with aseptic filling machine.
Production line introduction:
1. After the raw milk is accepted, the pretreatment including milk cleaning, cooling and storage should be carried out. After
filtration and centrifugation, the purified milk should be quickly cooled to 2-3 ℃ for storage. The purpose is to make the quality of the product meet the standard requirements and not fluctuate with the source of raw materials.
filtration and centrifugation, the purified milk should be quickly cooled to 2-3 ℃ for storage. The purpose is to make the quality of the product meet the standard requirements and not fluctuate with the source of raw materials.
2. The purpose of UHT milk homogenization is to use the powerful mechanical operation of homogenizer to break fat globules into fine particles, prevent fat agglomeration and floating, ensure the uniform, delicate and white sensory quality of products, and further improve the digestion and absorption of milk.
3. The purpose of UHT is to kill all microorganisms (including propagules, pathogens, non pathogens and spores).Generally, the sterilization time is 4-10 seconds and the sterilization temperature is 135-140 ℃. In the first stage, the milk was preheated to 80 ~ 85 ℃, which was helpful to the thermal stability of whey protein. The second stage is to heat the milk above the boiling point to 135 ~ 150 ℃ and completely kill all microorganisms. Raw materials: fresh milk, milk powder Production: UHT whole milk, UHT skim milk, UHT flavor milk Capacity: 500-10000l / h Final product packaging: aseptic brick carton, pillow type packaging bag, plastic bottle
Our strengths:
*It can be designed according to the special requirements of users
*Multiple products can be produced on the same production line
*Application of high technology to save energy consumption
*It can produce high quality products and keep nutrients
*It can produce high quality products and keep nutrients
*Aromatic substances can be added and mixed precisely
*Extend the shelf life of products
*Large output and small loss

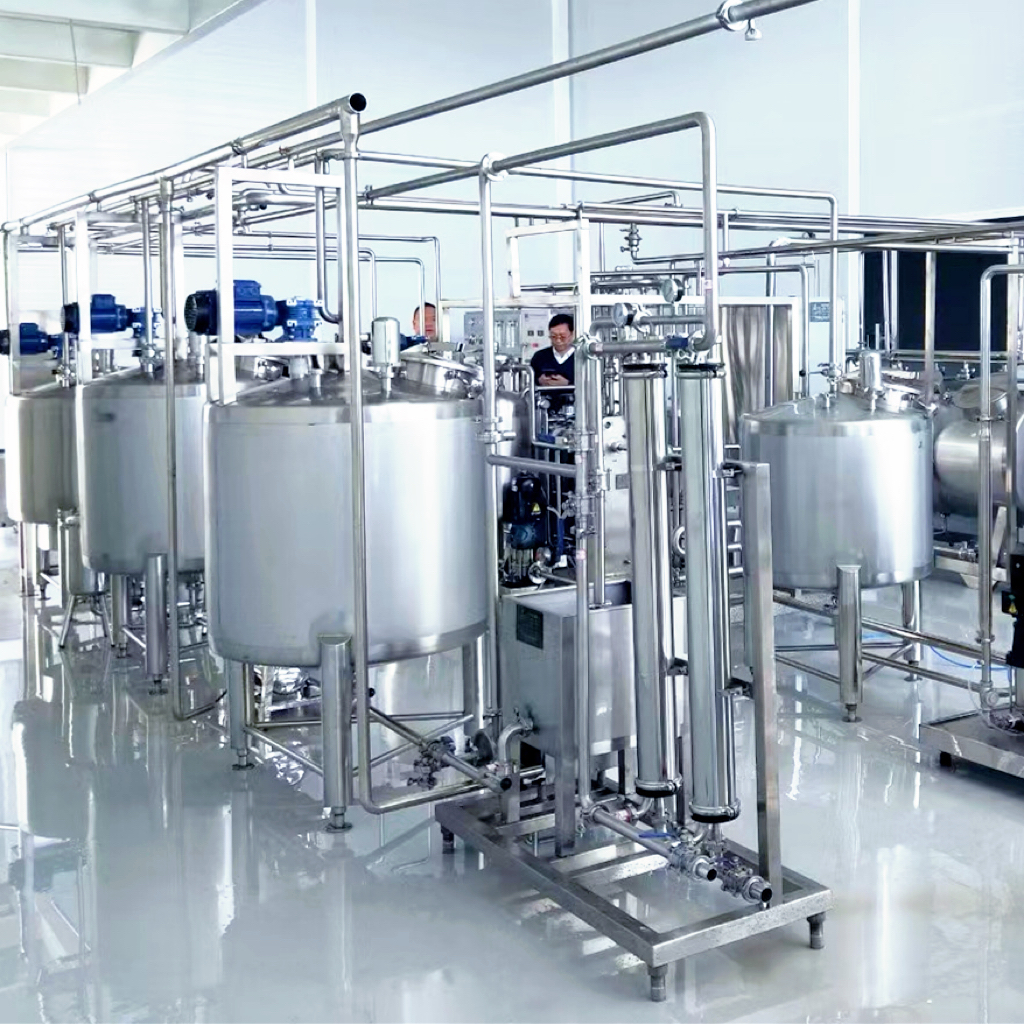

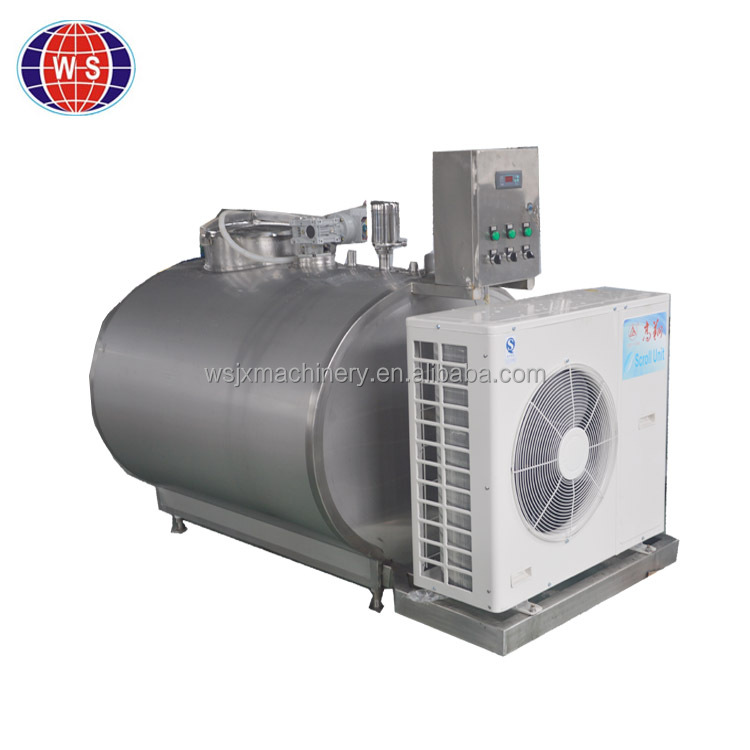

Fresh milk collecting system

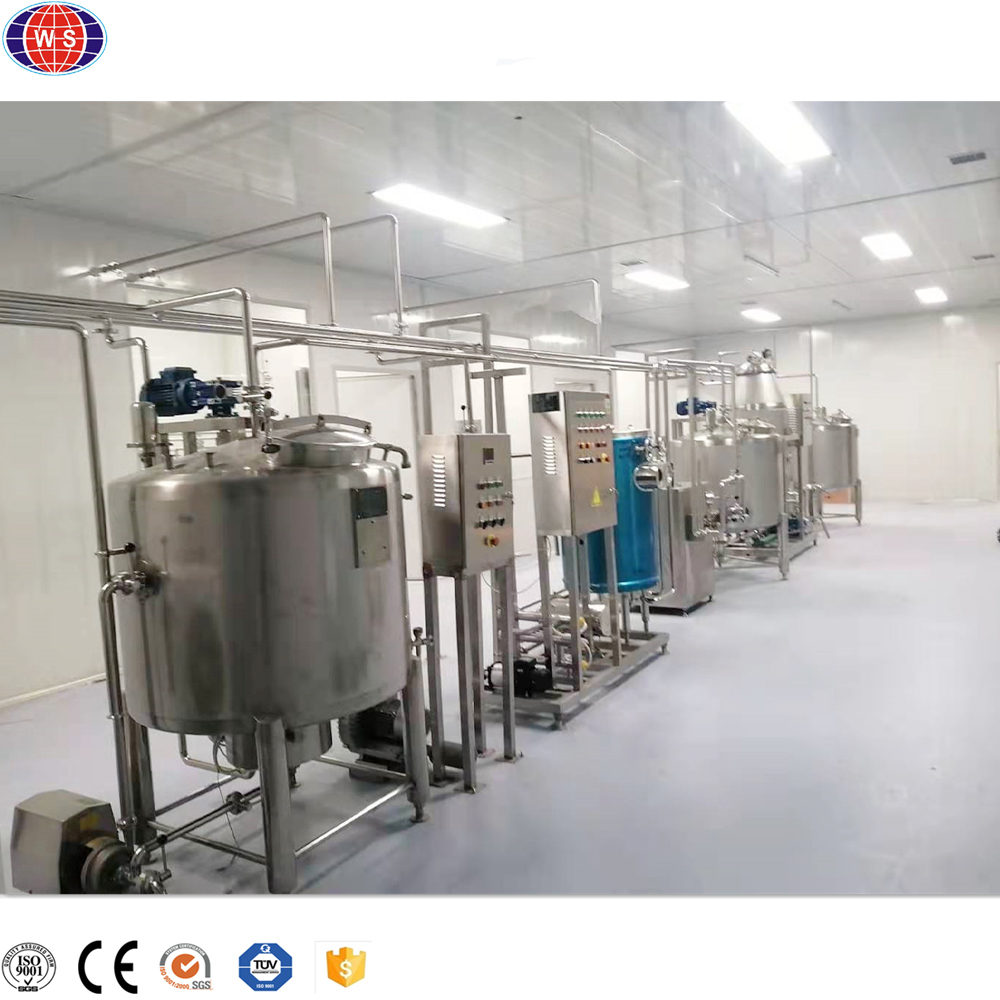

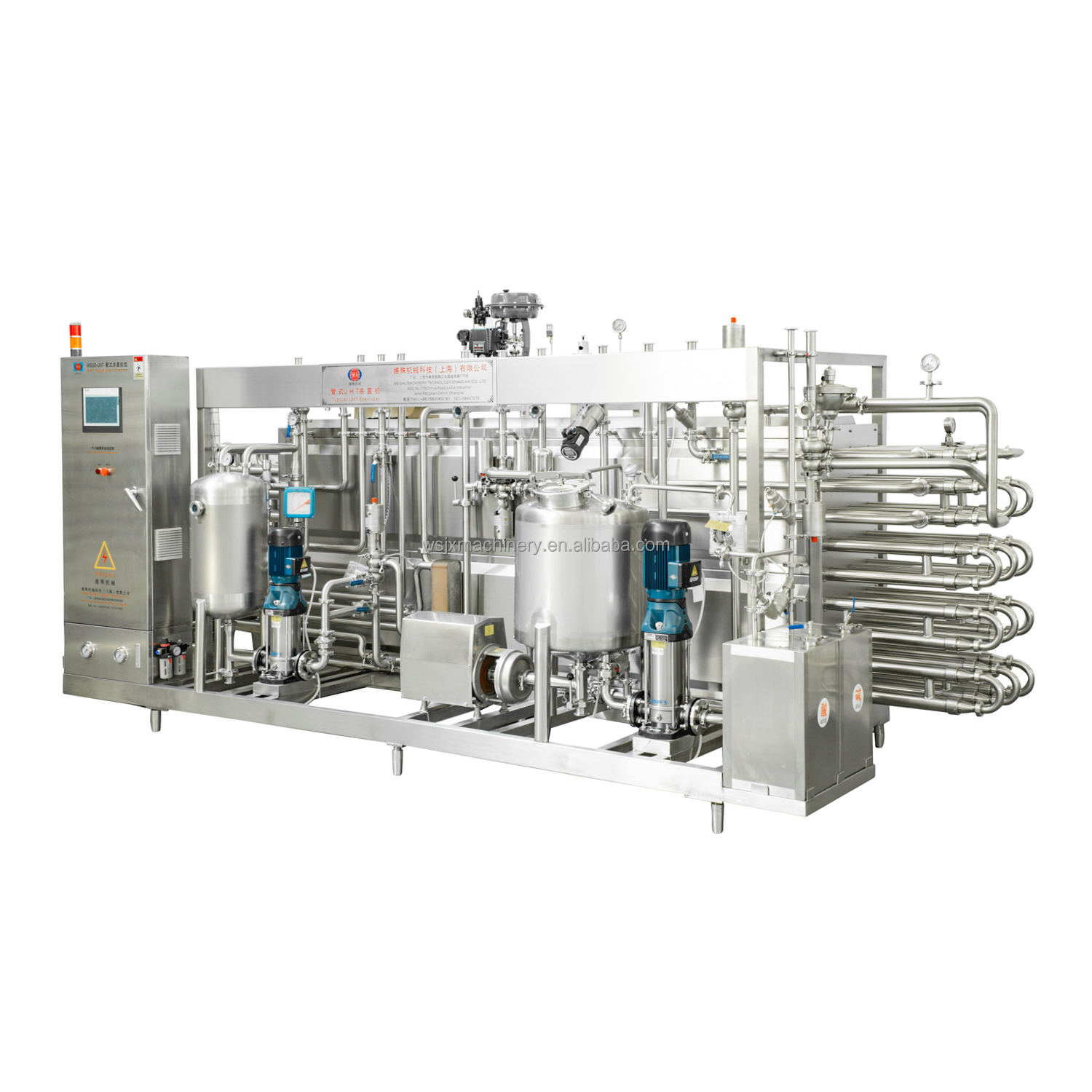

UHT sterilization system
Our UHT unit adopts PLC automatic control, high heat recovery rate, low energy consumption, CIP cleaning, accurate and reliable sterilization temperature, strict control of steam flow, cooling water flow and material flow, all accessories can adopt world-famous imported brands, to ensure the highest quality of equipment.

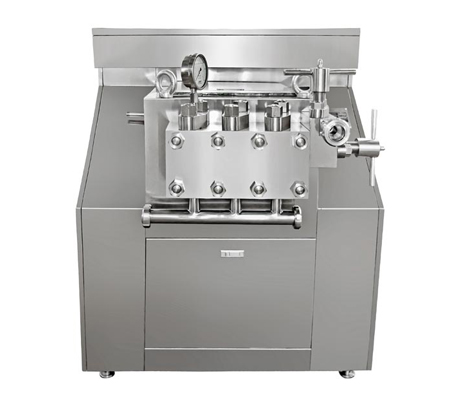

Homogenizer
Model: Ws-Jz25
Pressure: 25mpa
Diameter Inlet: 50mm
Homogenizing Diam.:25mm
Outlet: 1/2” Mm
Power: 15kw Machine
Size: 1150×860×1100mm Weight:680kg

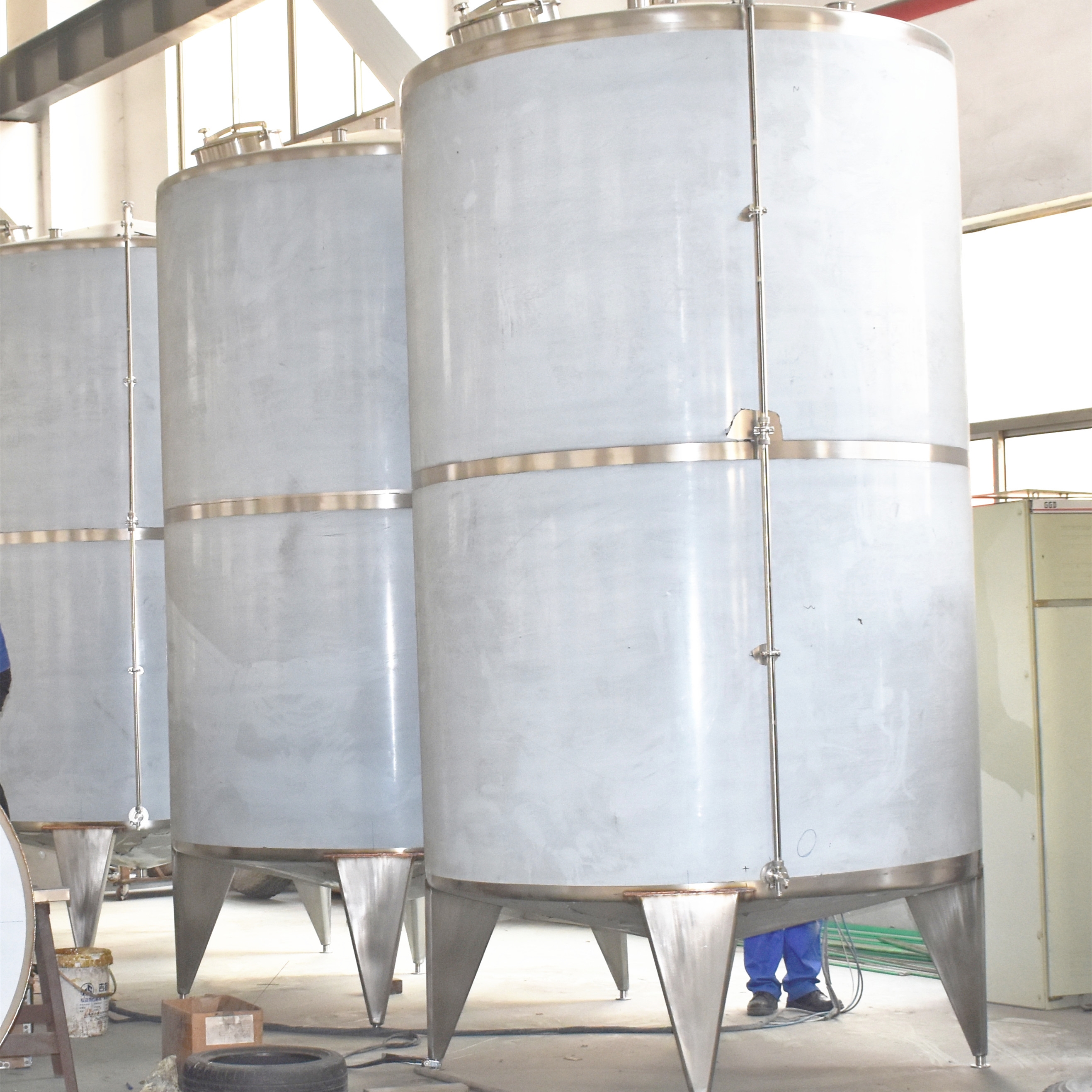

Milk Tank
Sus304, Double Layer With Insulation Layer And Heating Layer
With Mixer, Motor Power:1.1kw, Speed:36r/Min
- With Manhole
- Washing Ball
- With Glass Level Meter

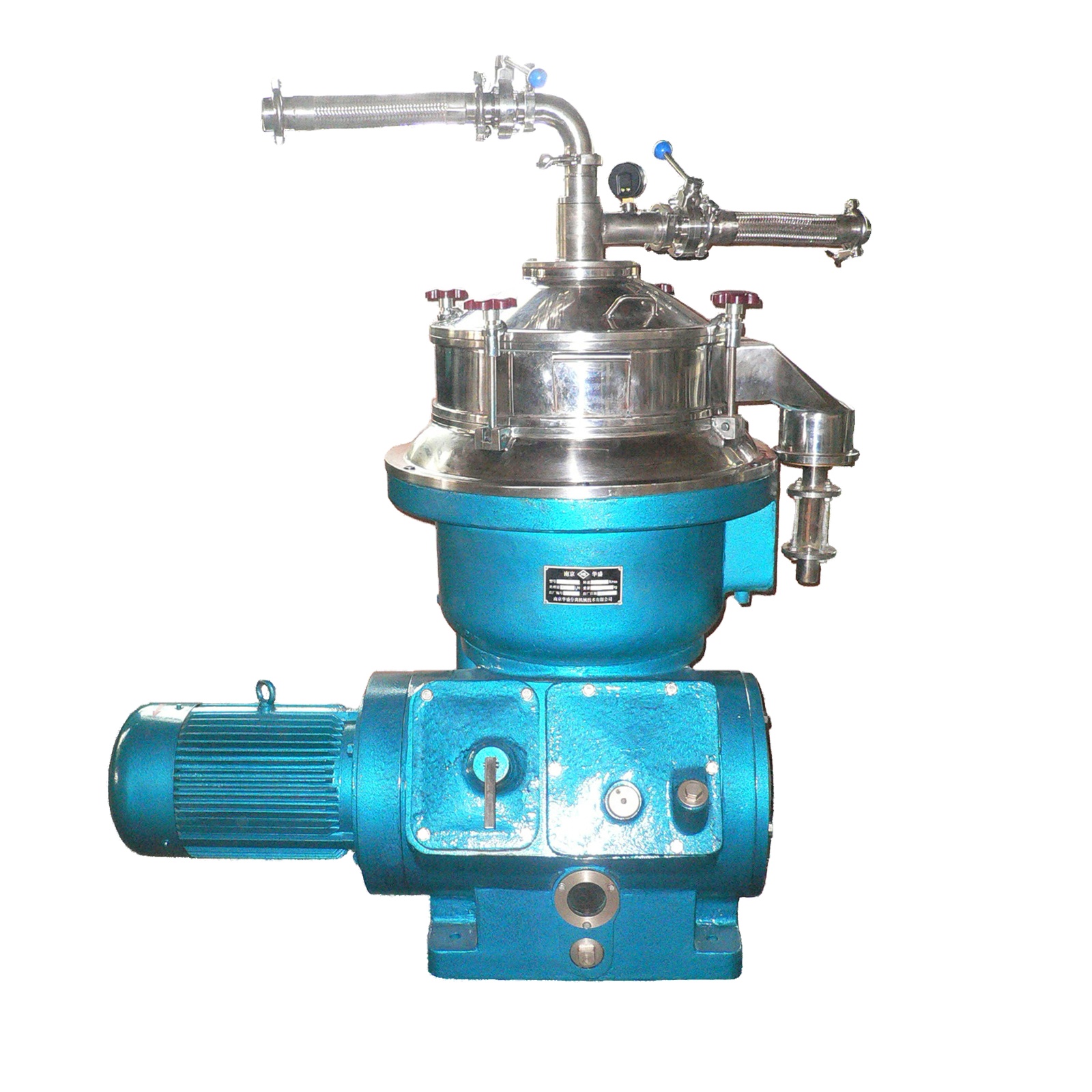

Milk Separator
Separate Type, The Part Contact The Material Is Sus304 Power :4kw Weight: 360kg Drum Diameter: 400mm, 0.2mpa, Dimension Is About:
830x800x1150mm Automatic Slag Cleaning, Including Automatic Frequency Conversion Control Cabinet
830x800x1150mm Automatic Slag Cleaning, Including Automatic Frequency Conversion Control Cabinet

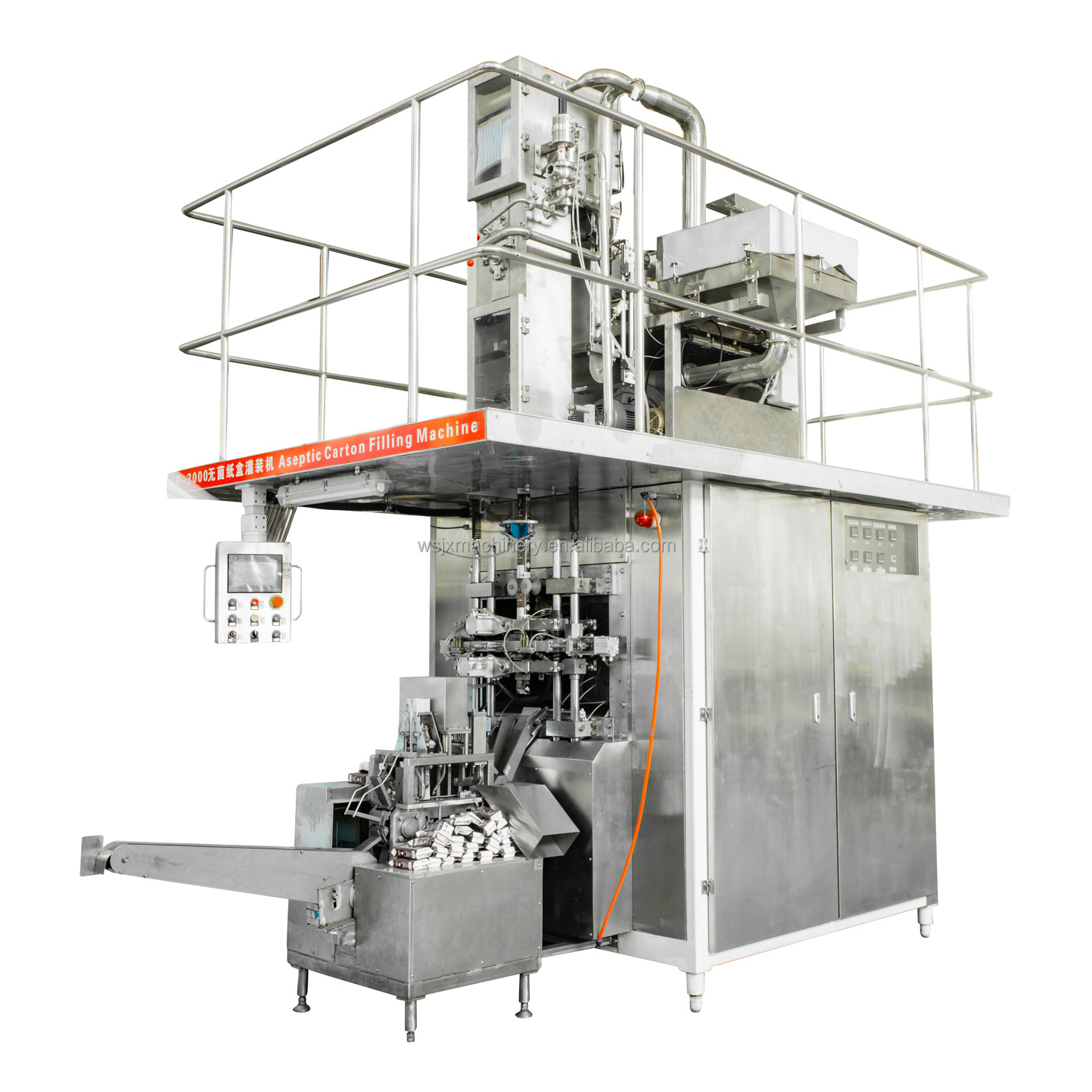

Filling And Packaging System
The packaging of milk is diversified, we can customize the packaging machine for customers according to the actual demand.
From filling to packing, all connected by conveyor belt, can achieve automatic production.We have PET bottle, glass bottle, cans and aseptic cartons for you to choose from.
From filling to packing, all connected by conveyor belt, can achieve automatic production.We have PET bottle, glass bottle, cans and aseptic cartons for you to choose from.

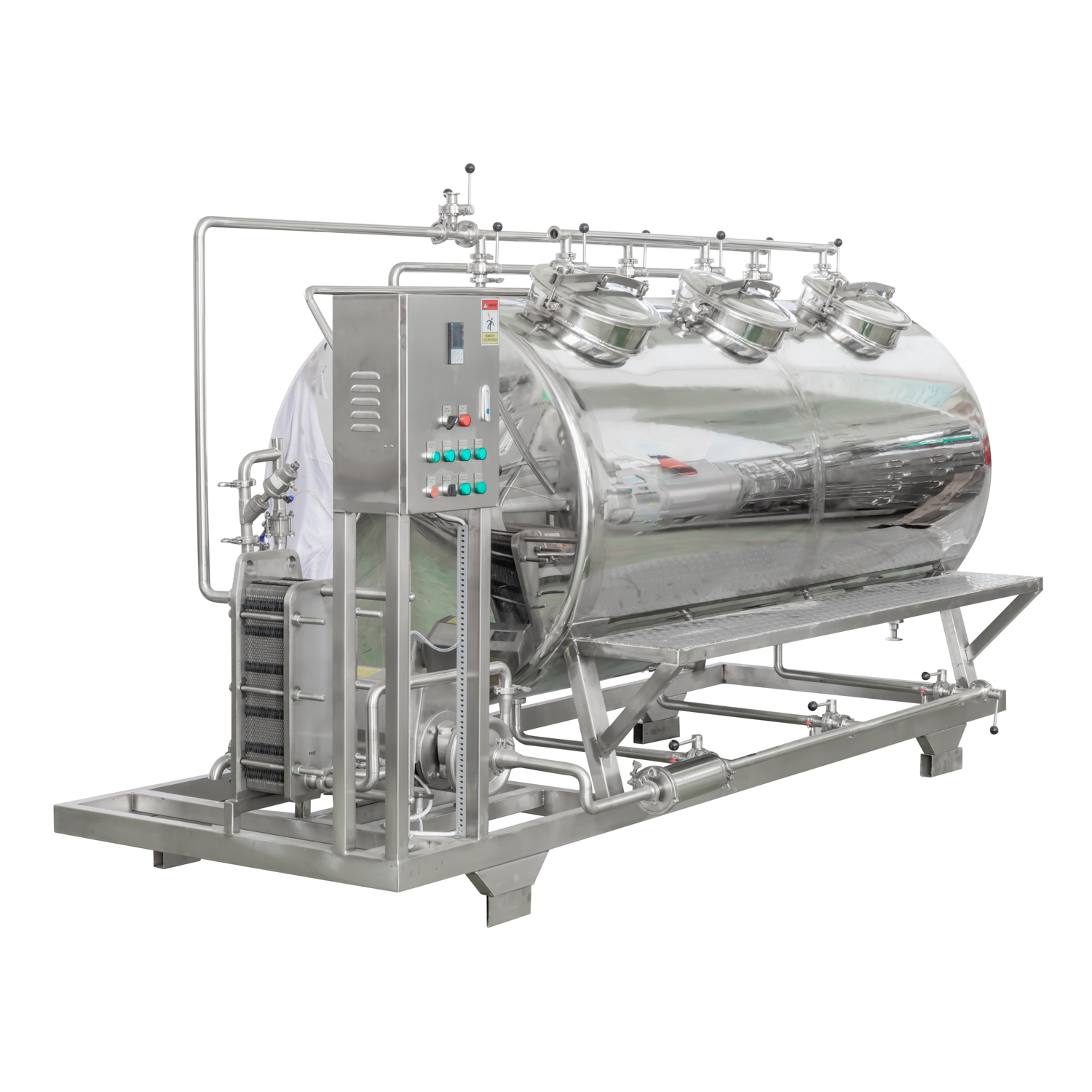

Cip Cleaning System
2000l/H, Acid, Alkali, Hot Water Tank, Tank Sus304, Thermometer, Insulation, Manhole, Mirror, Plate Thickness Of 2.5 Mm, Electric Control Box, Used For Cleaning All The Equipment That Contact With Material.

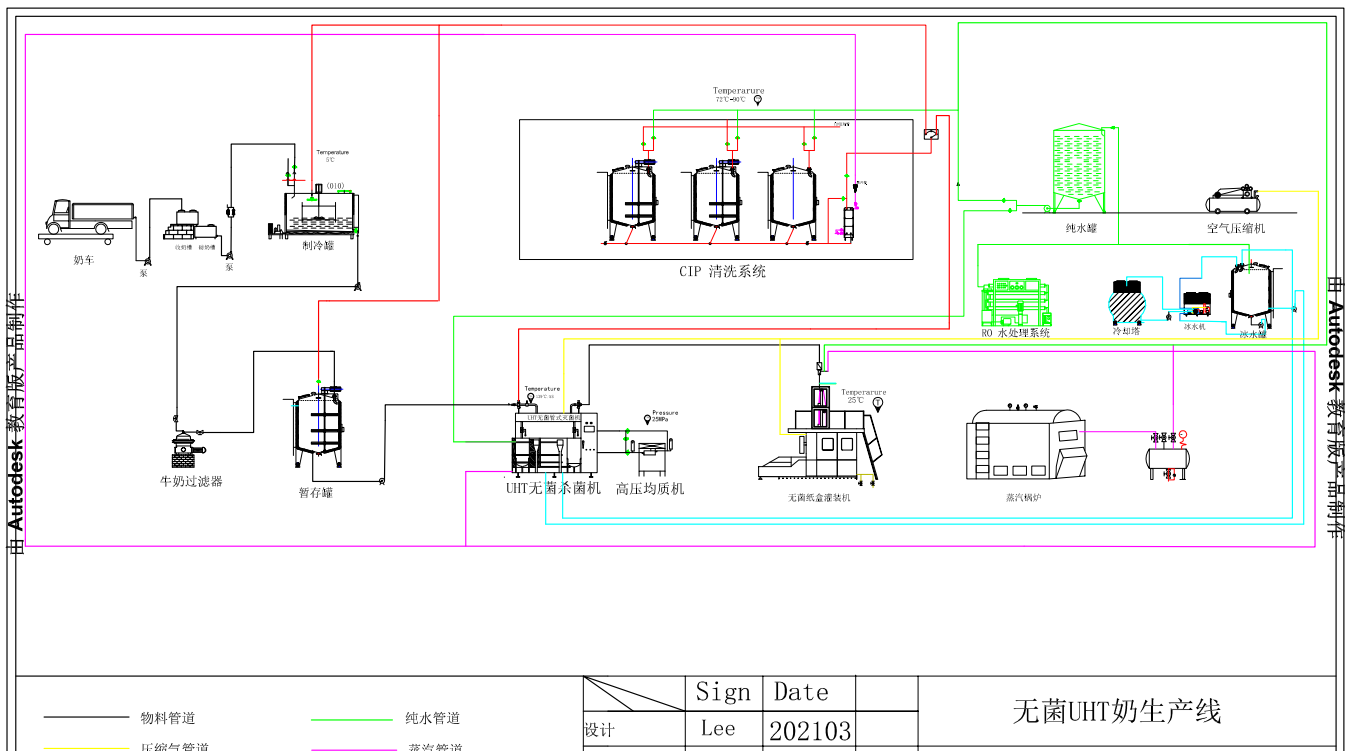

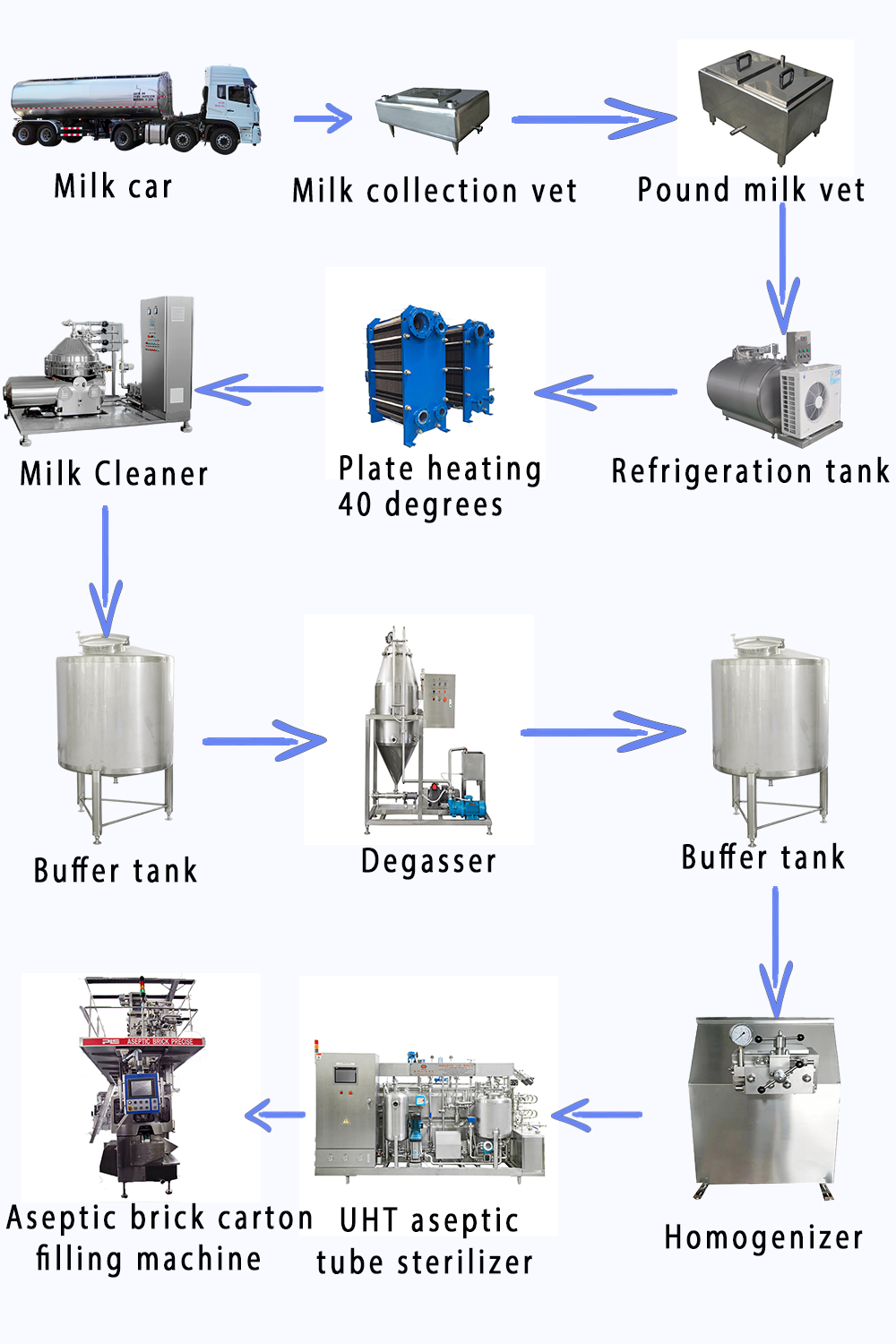

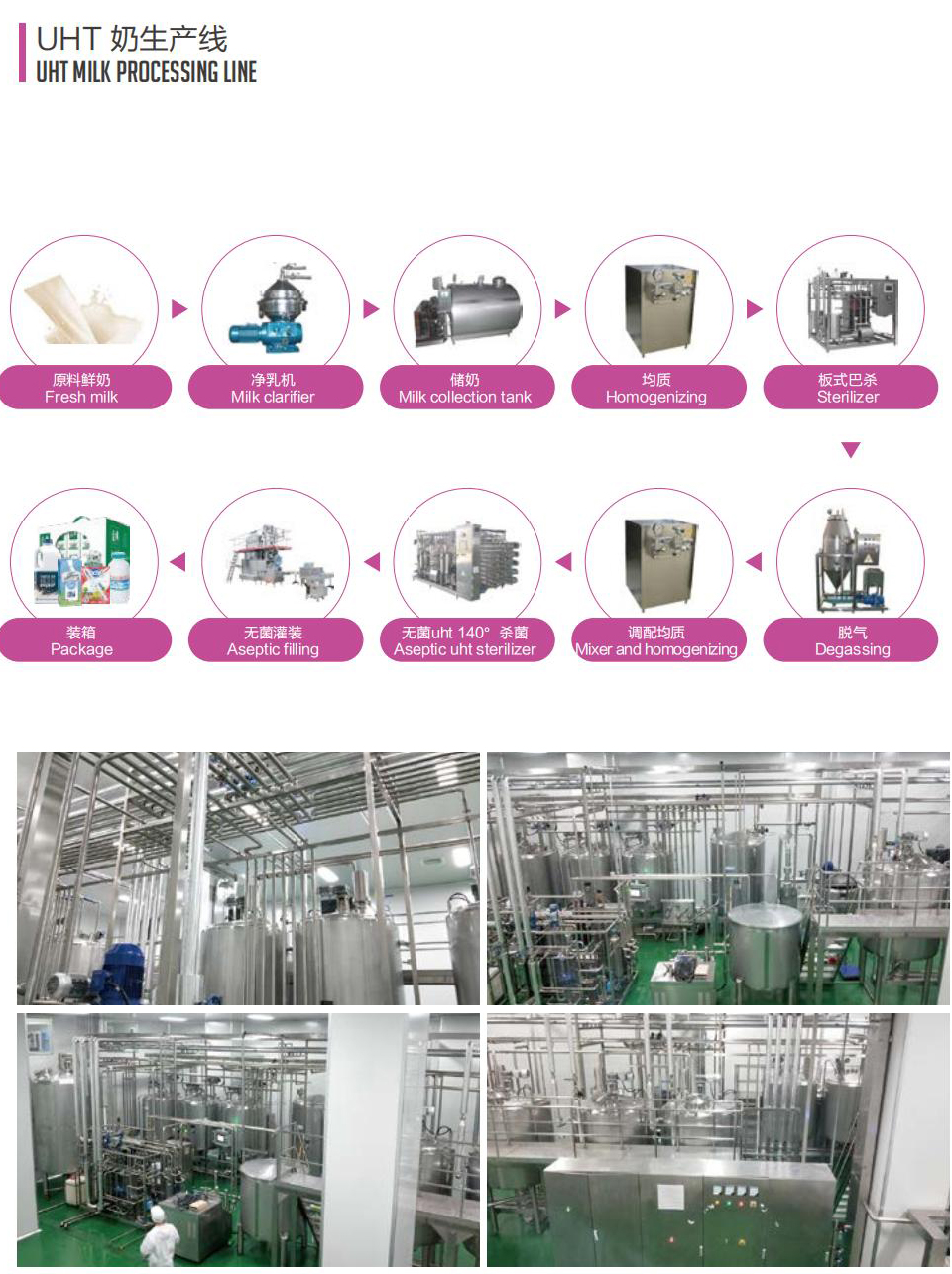

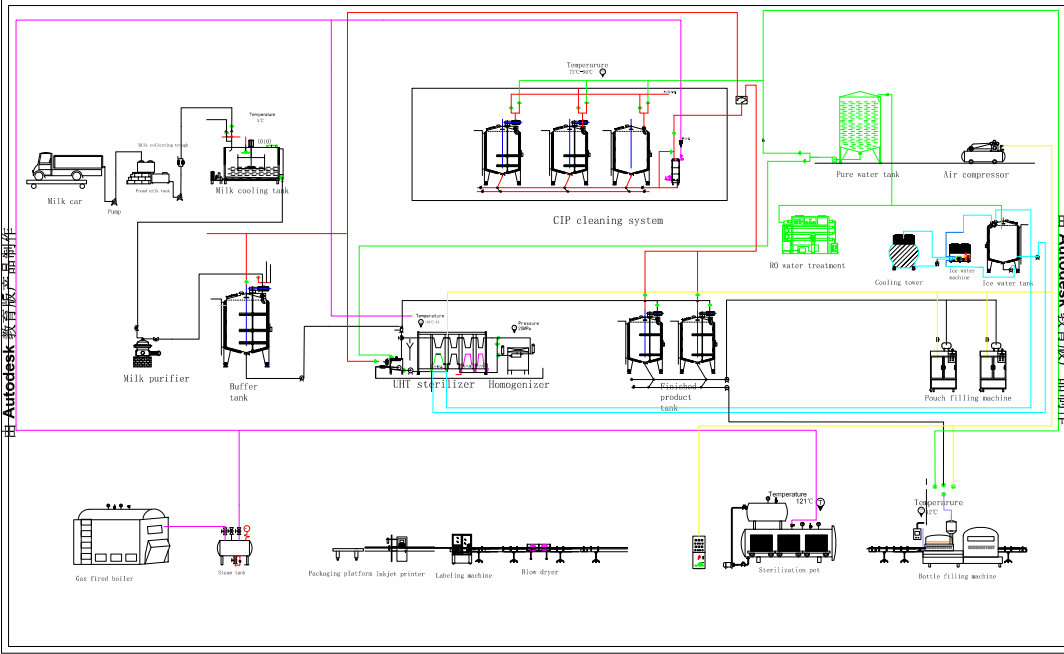

Process

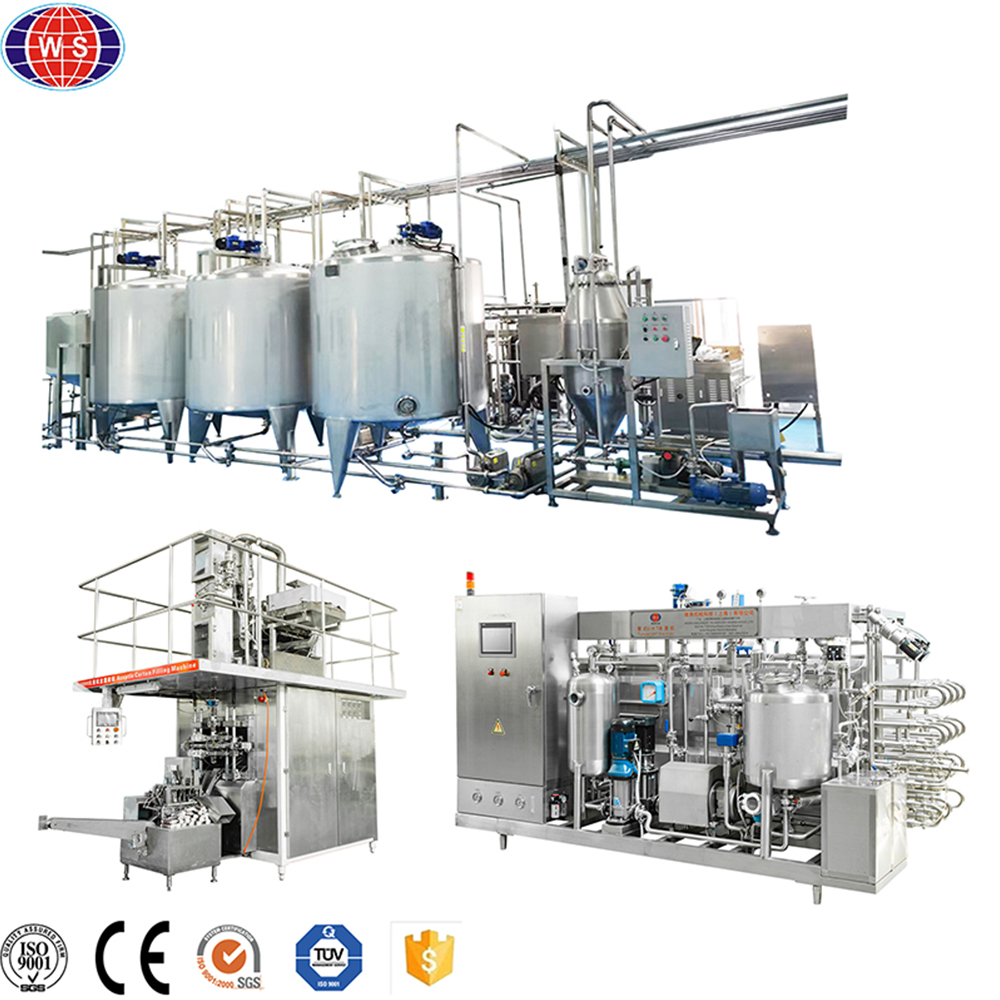

Product Display
Contact Us
Our Certification
Packaging And Shipping
Are you a manufacturer or a trading company?
A: We are manufacturer
Where is your factory in shanghai?
A:We are in fengxian district,shanghai
Do you do part of the equipment or the whole project?
A: We specialize in turnkey engineering of the whole production line
Do you provide drawings and plant design?
A:Yes, of course.
Do you have an installation team?
A:We have a professional installation team abroad
How long is the equipment warranty period?
A:Usually a year
Can you provide product certificates?
A: Sure
