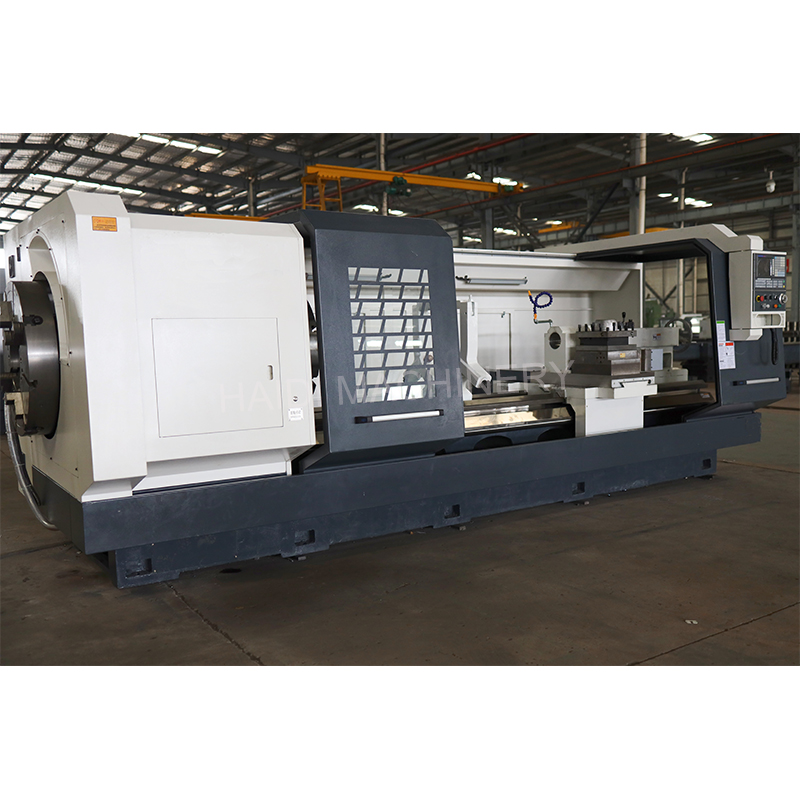

Automatic Pipe Thread Lathe Machine Tools - Bench Metal Lathe for Threading

1 / 6

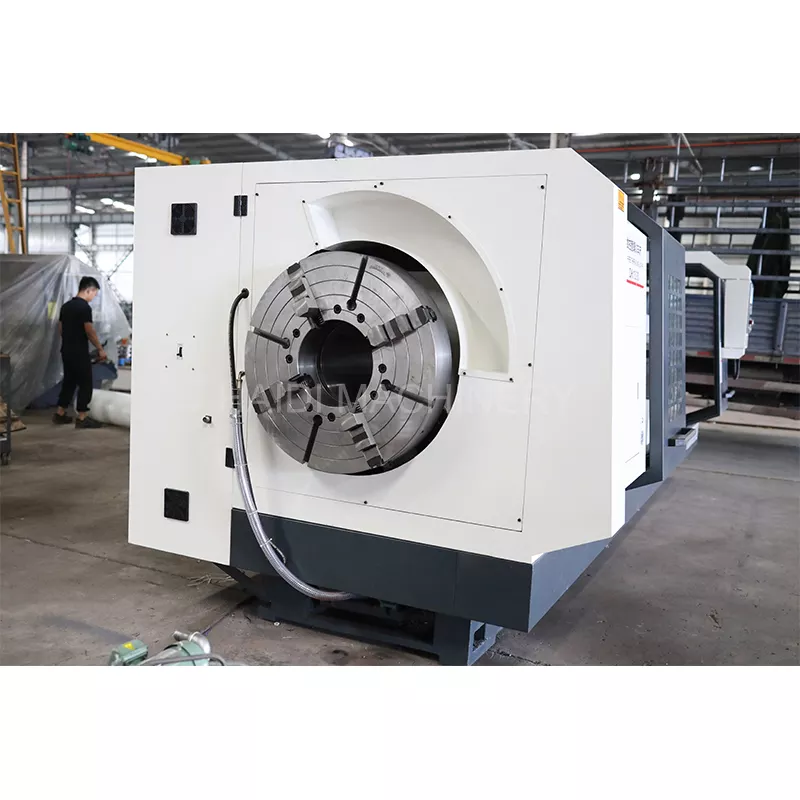

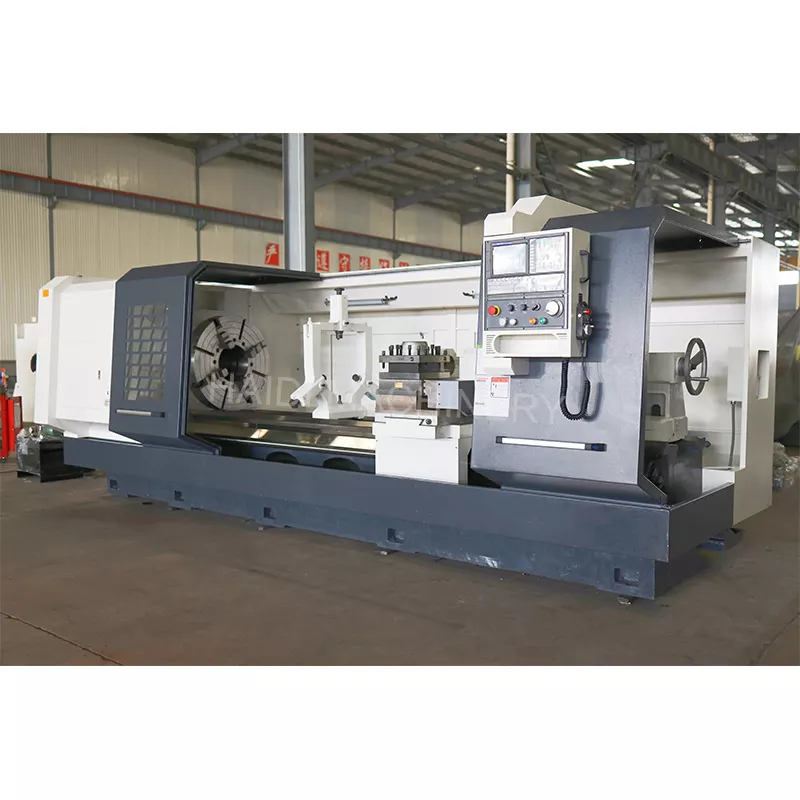

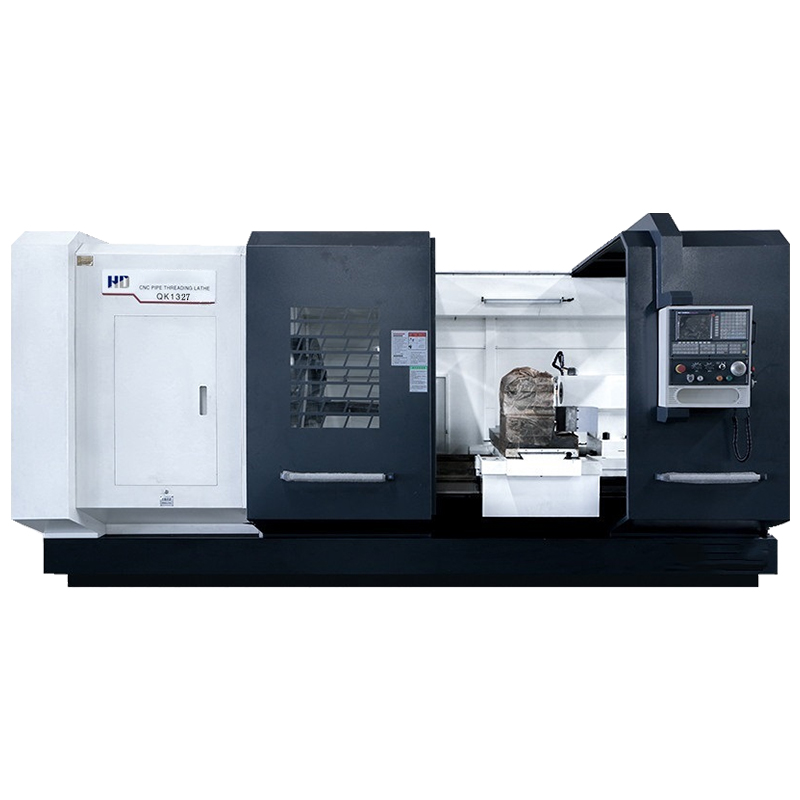

Automatic Pipe Thread Lathe Machine Tools - Bench Metal Lathe for Threading

Name: Automatic Pipe Thread Lathe Machine Tools - Bench Metal Lathe for Threading
Brand: Dalian Haidi Machinery Co., Ltd.
Rating: 4.1 (1 reviews)

$30000.00

≥1 set
$20000.00

≥10 set

Spindle bore:

280mm

Options:

800mm

Get Latest Price

You might also like

Full-Automatic Multifunctional Inclined Bed CNC Lathe

1 set (MOQ)

High Precision Metal Automatic Slant Bed CNC Lathe Machine TK500 CNC

1 set (MOQ)

Full-Automatic High Precision Slant Bed CNC Lathe Machine

1 set (MOQ)

High Accuracy 8-Station Servo Turret CNC Turning Automatic Lathe Machine

1 set (MOQ)

CNC Lathe Machine CK6152E: Precision Metal Turning Horizontal Flat Bed Lathe

1 set (MOQ)

China Manufacturer CK6152E Horizontal Flat Bed CNC Lathe Machine Price

1 set (MOQ)

CK6152E CNC Lathe: Best Price for Full Function Flat Bed CNC Lathe Machine

1 set (MOQ)

CK6152E Heavy Duty Metal Turning CNC Lathe Machine

1 set (MOQ)

QK1319 Big Spindle Bore CNC Pipe Threading Lathe Machine for Oil Country Lathe Applications

1 set (MOQ)

Wholesale High-Quality Brand Universal Heavy Duty Manual Pipe Threading Lathe

1 set (MOQ)

Basic Info

Model No.
Brand Name
TYPE	Horizontal
Max. Length Of Workpiece (mm)	3000
Structure	Flat Bed Lathe
Machining Capacity	Heavy Duty
Width Of Bed (mm)	755 Mm
Spindle Motor Power(kW)	15
No. Of Spindles	Single
Number of axes	2
Travel (X Axis)(mm)	450 Mm
Travel (Z Axis)(mm)	1250 Mm
Positioning Accuracy (mm)	0.02
Repeatability (X/Y/Z) (mm)	0.01
Place Of Origin	Liaoning, China
Dimension(LWH)	4000cm2100cm2100mm
Brand Name	Haidi
Model Number	Qk1327
Voltage	380-460V
CNC Control System	Gsk, Fanuc, Siemens
Tool Post Stations	4, Othe
Weight (KG)	7000
Warranty	1 Year
Key Selling Points	Competitive Price
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Warranty Of Core Components	1 Year
Product Name	Metal Lathe Machine For Threading

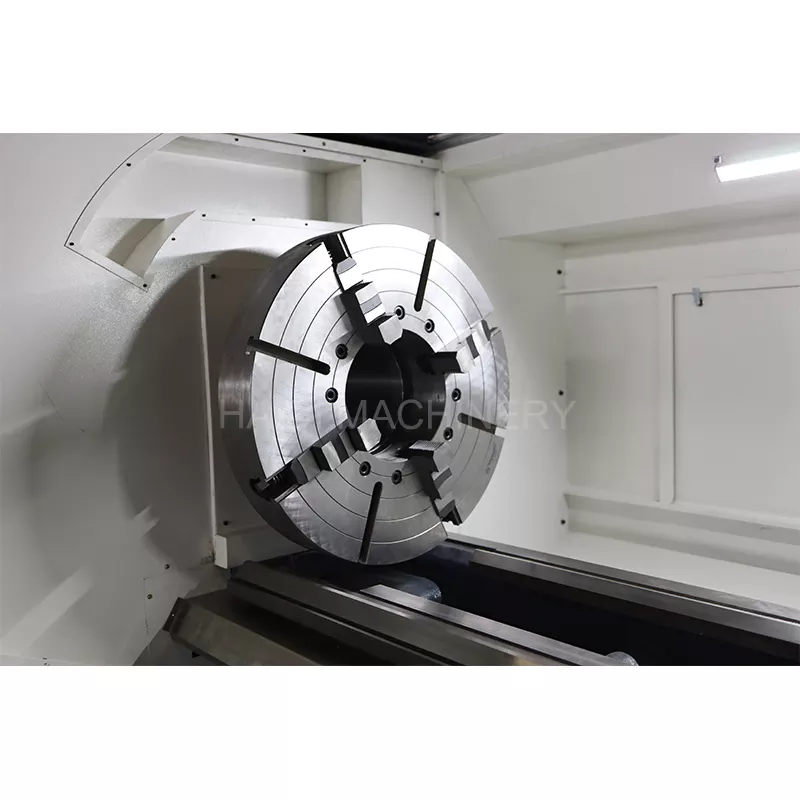

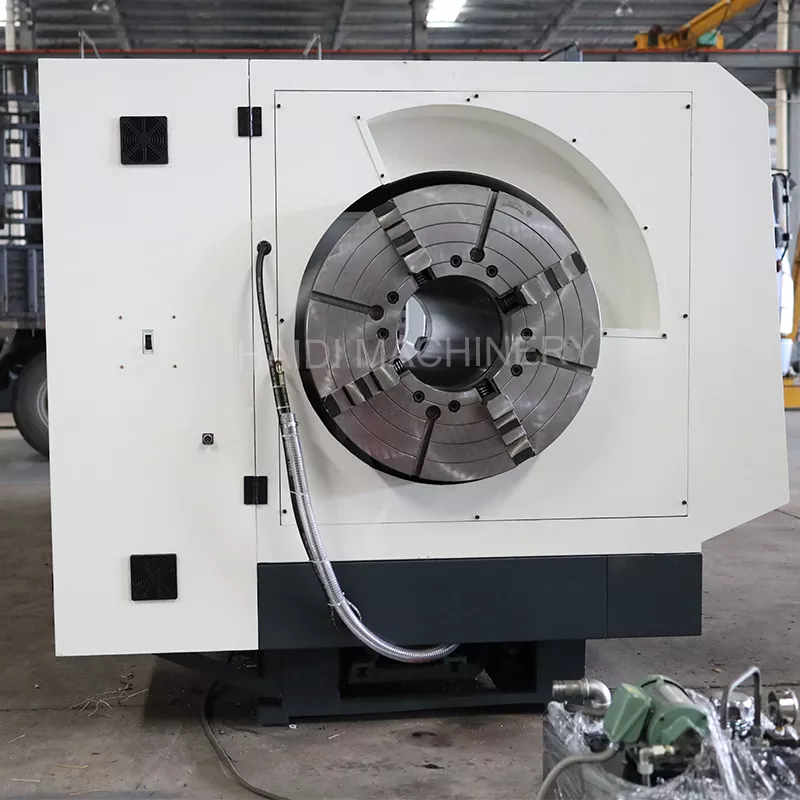

Chuck	K72-630 4 jaw chuck
Max. swing over bed dia.	800mm
Z axis motor	1500r/min
Power	2.8kw
Travel	250mm
Repeatability	0.01
Taper	Morse 6
CNC or NOT	Cnc Lathe Machine
Condition	New
Toolpost Brand	Hongda
Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works?, Energy & Mining
Showroom Location	China
Marketing type	Ordinary Product
Year	New
Max. Spindle Speed (r.p.m)	300 R.P.M
Spindle Bore(mm)	280
Max. Turned Length (mm)	3000
Core components	Bearing

Product description

Automatic Pipe Thread Lathe Machine Tools Bench Metal Lathe Machine For Threading

Specification Parameter

Specification			Unit	QK1325	QK1327	QK1330
Max. swing over bed dia.			mm	800	800	800
Max. swing over cross slide dia.			mm	540	480	480
Max. length of workpiece			mm	1500/3000
Spindle bore			mm	255	280	305
Power of spindle motor			kw	11	15	15
Spindle speed range			r/min	L: 15-100	L: 20-100	L: 20-100
Spindle speed range			r/min			H: 100-350	H: 100-300	H: 100-300
X/Z axis travel			mm	X:450 Z:1250	X:450 Z:1250	X:450 Z:1250
X/Z rapid traverse speed			mm/min	4000	4000	4000
X axis motor	Speed	r/min	1500	1500	1500
		Torque	N.m	10	15/18	15/18
		Power	kw	2.8	2.8	2.8
Z axis motor	Speed	r/min	1500	1500	1500
		Torque	N.m	15	18/22	18/22
		Power	kw	3.8	3.8	3.8
Tailstock quill	Diameter	mm	100	100	100
		Travel	mm	250	250	250
		Taper	/	Morse 5	Morse 6	Morse 6
Turret	Type		Vertical four station
Chuck				K72-630 4 jaw chuck
CNC control system				GSK, FANUC, SIEMENS
Positioning accuracy			mm	0.02
Repeatability			mm	0.01
Overall dimension			mm	370020001800	400021002100	400021002100
Net weight			T	6	7	7.5
