Automatic Processing Machine For Flaring And Cutting
Basic Info
| Model No. | EMAC-BDM |
|---|---|
| Brand Name | EA |
| Certification | CE |
| Suitable for | Stainless Steel |
| Condition | New |
| Automation | Automatic |
| Type | Hydraulic Bending Machine |
Product description

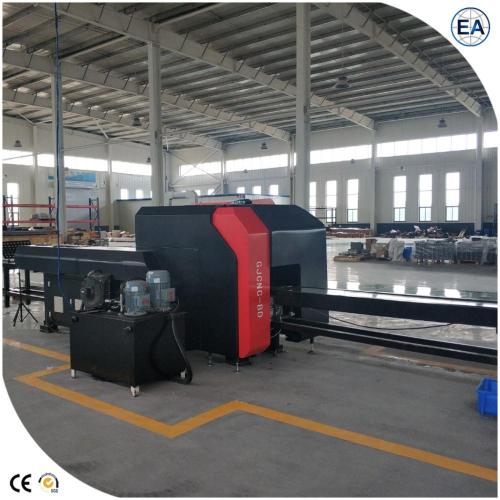

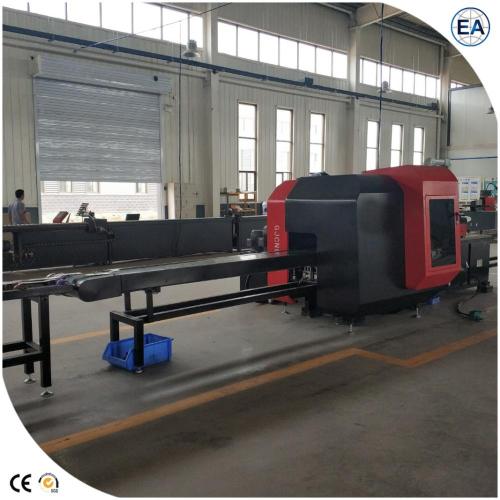

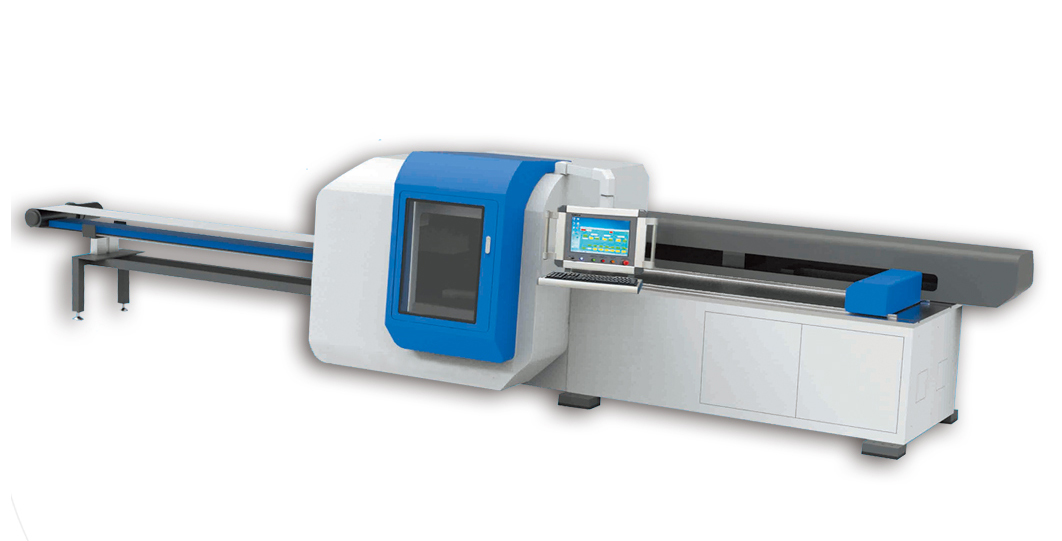

CNC Bus Duct Sawing and Flaring Machine
CNC Busduct Sawing and Flaring machine is the Hi-Tech production automatic bending machine with auto and feeding,sawing and flaring functions(Other functions of punching,notching and contact riveting etc are optional).System of CNC Busduct Sawing and Flaring machine adopt individual control system,auto busduct input as well real time monition for each process,assuring more safety,easy,flexible.CNC Busduct Sawing and Flaring machine improve automatic grade and capacity of busduct cutting machine.
1. Wih GJ3D programming software.
2. Automatic process flow
3. Double clamp
4. Quick conveyor
5. Touchscreen HMI
6. High-Speed transmission system
7. Maching structure
8. Tool kit cabin(optional)
Technical parameter
| Description | Unit | Parameter | |
| Force | Punching | KN | 300 |
| Notching | KN | 300 | |
| Riveting | KN | 300 | |
| Cutting | Circular Size | mm | 305 |
| Revolution | r/m | 2800 | |
| Motor Power | KW | 3 | |
| Max X-Way Speed | mm/min | 48 | |
| Max X1-Way Stroke | mm | 1500 | |
| Max X2-Way Stroke | mm | 500 | |
| Max Y-Way Stroke | mm | 250 | |
| Max Flaring Height | mm | 30 | |
| Station | Circular | Set | 1 |
| Flare | Set | 1 | |
| Punch | Set | 1(Option) | |
| Notch | Set | 1(Option) | |
| Contact Rivet | Set | 1(Option) | |
| Control | Axis | 4 | |
| Hole Pitch Accuracy | mm/m | ±0.20 | |
| Air Source | Mpa | 0.6~0.8 | |
| Total Power | KW | 17 | |
| Max Busbar Size (L×W×T) | mm | 6000×200×6(Other Size Customerized) | |
| Min Busbar Size (L×W×T) | mm | 3000×30×3(Other Size Customerized) | |
| Main Machine Size (L×W) | mm | 15000×2200 | |
| Machine Weight | kg | 5000 | |
Packing details:
1) Applying Anti-Rust Oil
2) Covering with stretch film
3) Covering aluminum air bag
4) Vacuuming air bags
5) Boxing all the pallet
6) Loading to the containe
