Mattress roll packing machine

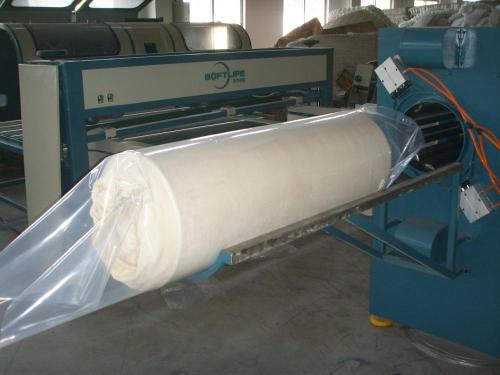

By using the integrated automatic mattress compressor,the mattress compression from the entry to the exit is automatically completed by the conveyor belt,and had the functions of automatic vacuum pumping and automatic heating sealing.It saves time and labor,reduces labor intensity,and greatly saves storage,transportation space and enterprise cost.



1.The material is used the steel products , it is more thicker than others.

2.Solid and compact mechanical structure

3.Hydraulic system is different ,it is the Taiwan hydraulic pressure original . the diameter of the Cylinder is 750mm .

4.The net weight of machine is 4000kg , the lifetime is definitely OK for 10 years or  more than .

5.We are the professional manufacturer for mattress vaccum press machine . have been exported to different countries in the world , that machine is also our the best selling one of our machines

 The machine is compact and convenient to installation and maintain. (With CE certificate)

Parameters:

Model	SL-07W	SL-08W	SL-09W	SL-SW
Efficiency	60 pcs/hour	60 pcs/hour	60 pcs/hour	60 pcs/hour
Foam mattress size	2000x1800x200mm	2000x1800x200mm	2000x1800x200mm	Custom-made
Foam density	≤20kgs/m3	≤22kgs/m3	≤30kgs/m3	Custom-made
Exit diameter	250mm	290mm	320mm	Custom-made
Dimention (L x W x H)	3930x2050x1375mm	3930x2050x1375mm	3930x2050x1375mm	/
Weight	1600kg	1600kg	1600kg	/
Power		3.7KW	3.7KW	3.7KW







Payment term:

1.        L/C at sight;

2.        T/T:30% deposit by T/T ,70% balance by T/T before shipment

3.        Western Union



Packing detail:

   *Pearl wood and PVC film

   *All of the productions are inspected carefully by QC before delivery.

*

Trade Term: EXW,FOB Jiangmen,CFR



Delivery time:

By T/T, within 45 days after receipt of deposit

Min. Order:1 set
