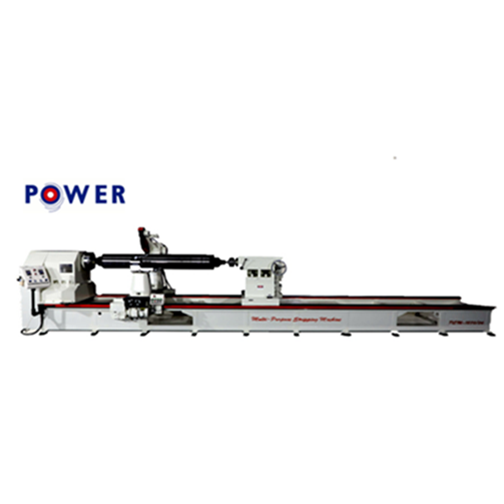

PCM-1250 Muti-Purpose Rubber Roller Stripping / Renewing / Cleaning / Recycling Machine

Product description

          1. The PCM-1250 model is suitable for renewing industrial rubber rollers.

          2. Removing old rubber by special ring cutter.

          3. Replacing the traditional sand-blasting and solvent washing process by advanced belt-grinding process.

          4. Perfectly keeping the original dynamic balance of the roller core.

          5. Giving more reliable guarantee for the bonding of the rubber and steel cores.

          6. Saving costs and labors with this improved production system.

MODEL	SPECIFICATION	MAX. DIAMETER	MAX. LENGTH	CUBAGE	POWER
LIGHT SCALE	PCM-4030	15.7" 400mm	118" 3000mm	197"*63"*55" 5m*1.6m*1.4m	8.5KW
MEDIUM	PCM-6040	24" 600mm	157.5" 4000mm	236"*70"*59" 6m*1.7m*1.5m	8.5KW
STANDARD	PCM-8040	31.5" 800mm	157.5" 4000mm	236"*71"*63" 6m*1.8m*1.6m	11.9KW
HEAVY DUTY	PCM-1250	47.2" 1200mm	196.9" 5000mm	307"*79"*63" 7.8m*2.0m*1.7m	19KW
LARGE SCALE	PCM-1660	63" 1600mm	236.2" 6000mm	339"*102"*71" 8.6m*2.6m*1.8m	23KW

PCM Multi-Purpose Stripping Machine is specially researched, developed and designed for treating old rubber rollers. PCM Multi-Purpose Stripping Machine has the advantages that: Old rubber can be quickly removed by a special ring cutter, a roller core would have a brand-new surface under the special belt grinding mode. Adhesive brushing and drying are facilitated, bonding of rubber and the roller core is ensured, which replaced the traditional sand blasting process. After the belt grinding process, the surface is not required to be cleaned by any solvent, the balance of the roller core is prevented from being damaged. Therefore, production efficiency will be improved, cost and labor will be saved. Most importantly, the bonding of the rubber and the roller core will be secured by this procedure.

• Packing details:

         1. Outside package: Standard export wooden cases

         2. Inner package: Stretch film

• Delivery time:

        Within 2-4 weeks
