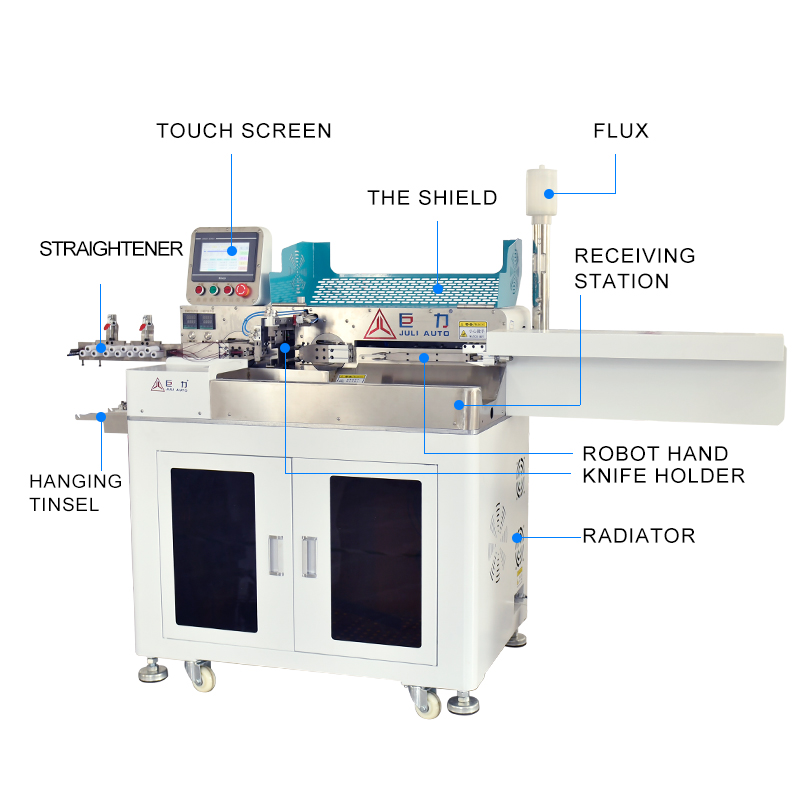

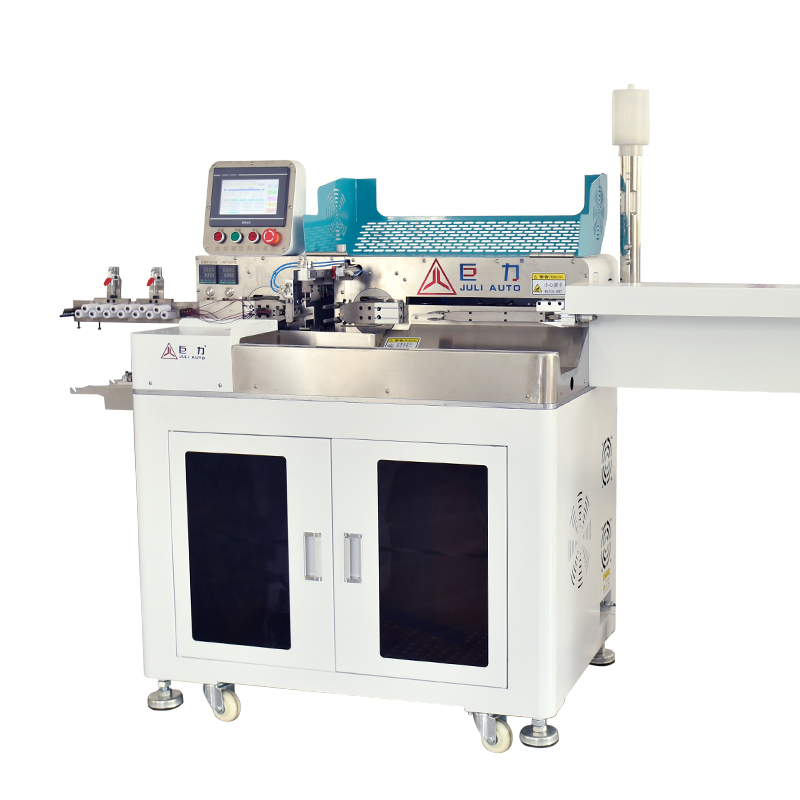

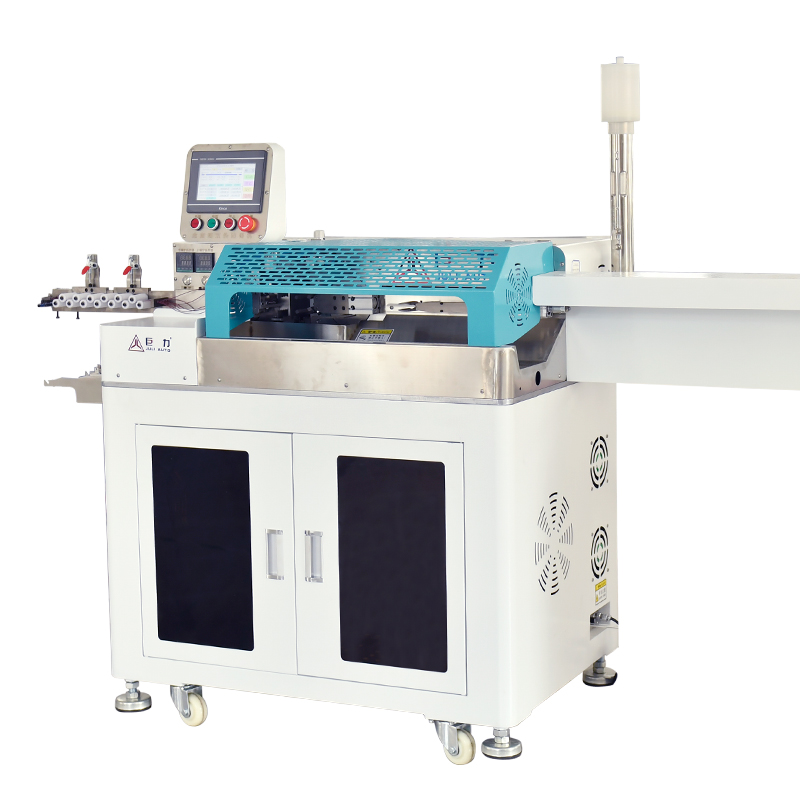

Automatic Stepper Motor Wire Processing Machine
$5500.00
≥1 piece
$5000.00
≥2 piece
$4800.00
≥10 piece
Basic Info
| Place Of Origin | Shenzhen |
|---|---|
| Brand Name | JULI AUTO |
| Model Number | JL-02DA |
| Usage | wire cutting stripping crimping twisting tinning |
| Power | 1500w |
Product description

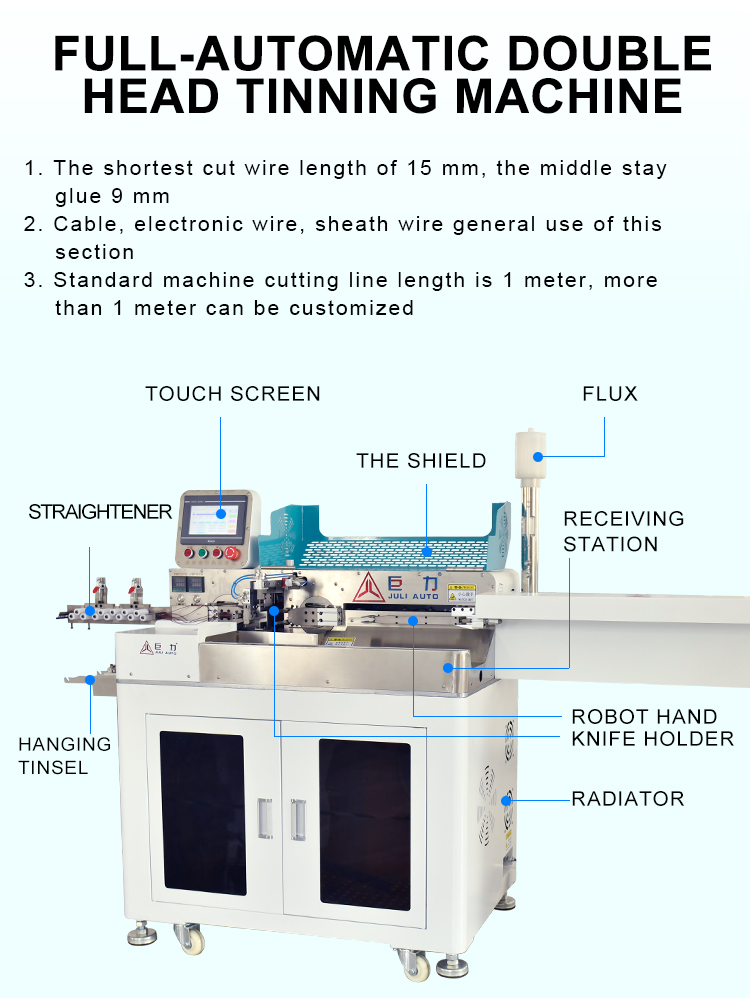

Model | automatic stepper motor double tinning machine |
Cutting length | 10mm-800mm (customizable) |
Stripping length | 0-11mm (11-20mm customizable) |
Twisting length | 3-11mm |
Tinning length | 0.5mm-11mm |
Air pressure | 0.5 - 0.7 MPA (clean and dry air is required) |
Dimensions | L2800*W800*H1500mm |
Dimensions after packaged | 2910*900*1720mm |
Net weight | 321KG |
Gross weight | 460KG |
Power supply | AC 220V/50/60Hz single phase 1300W |
Production | 28-32AWG: 20pcs/time: 23000pcs/hour 22-26AWG: 12pcs/time: 13000pcs/hour 16-20AWG: 7pcs/time: 1150pcs/hour |

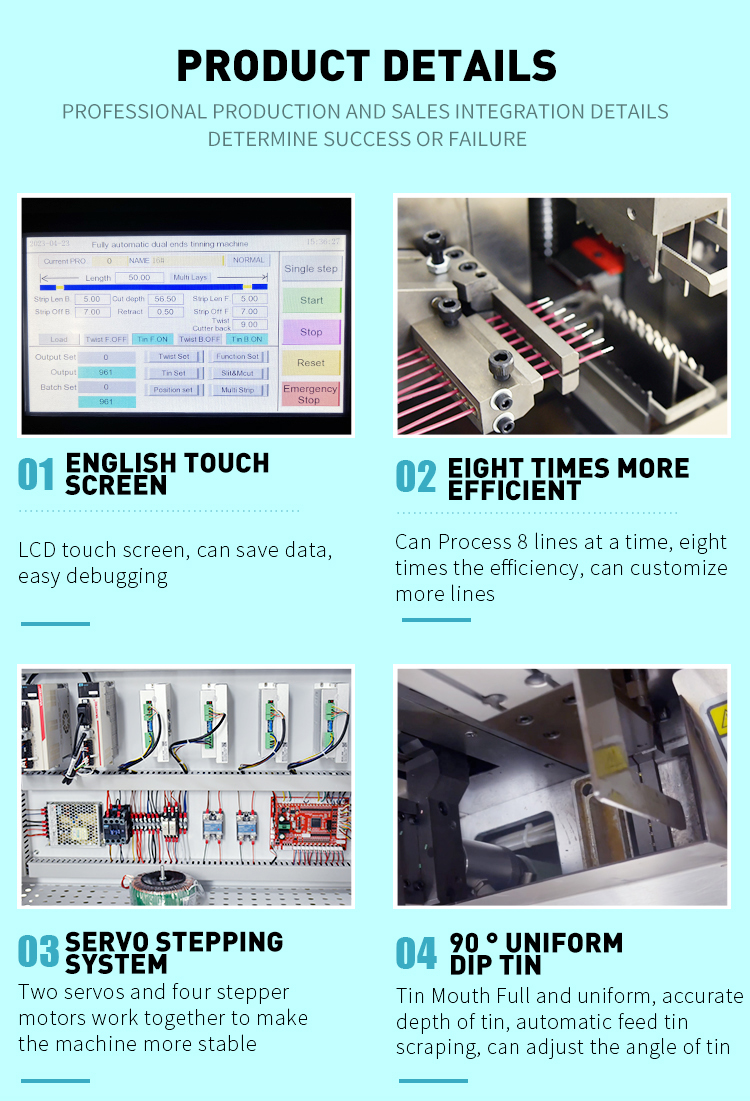

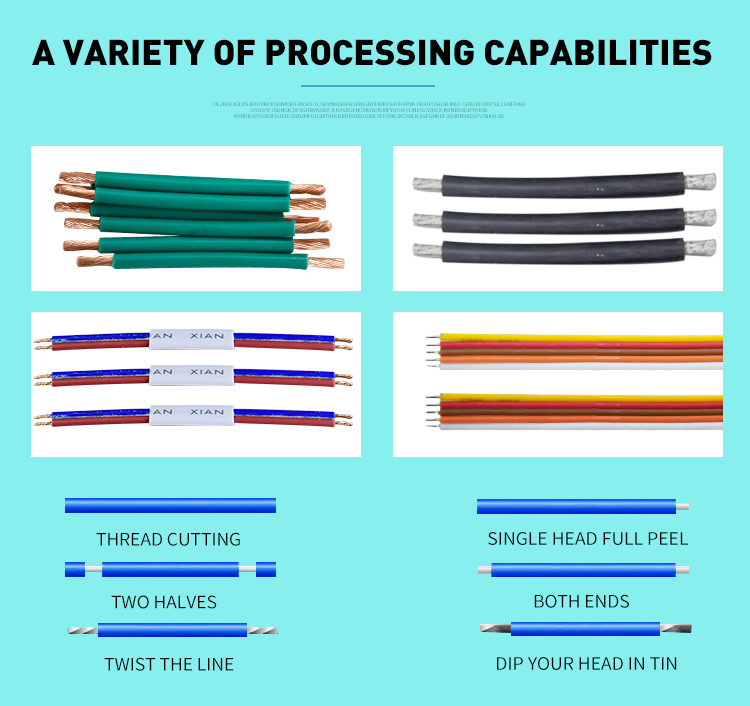

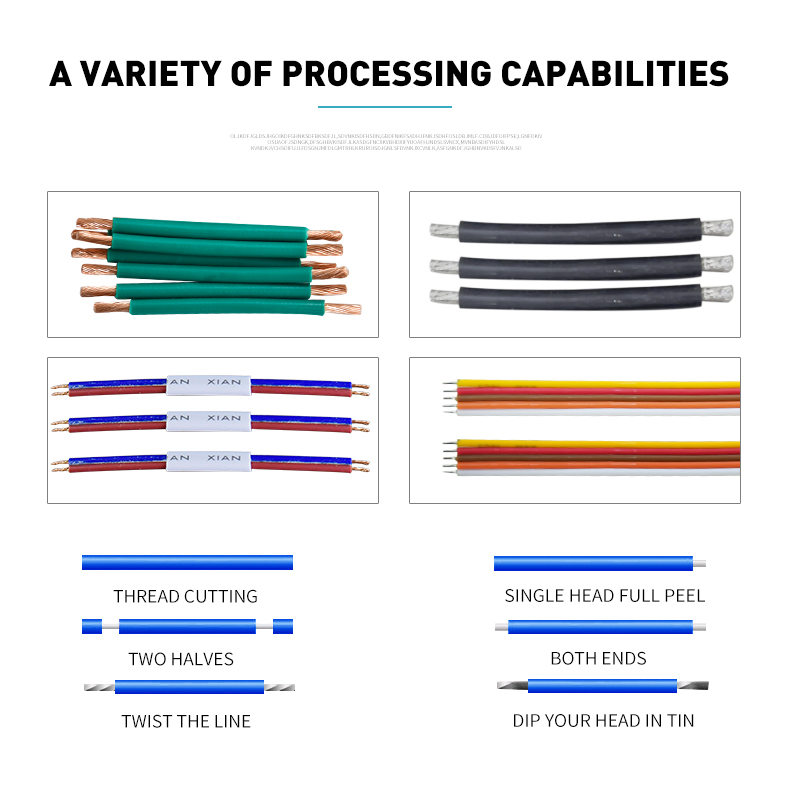

Standard machine functions | Wire cutting, stripping, double stripping, single tinning, double tinning, single twisting, double twisting, half stripping, double stripping, English or Chinese screen. |
Optional wire processing types | Jointed wire, electric wire, flat cable, stranded conductor, Enameled wire |

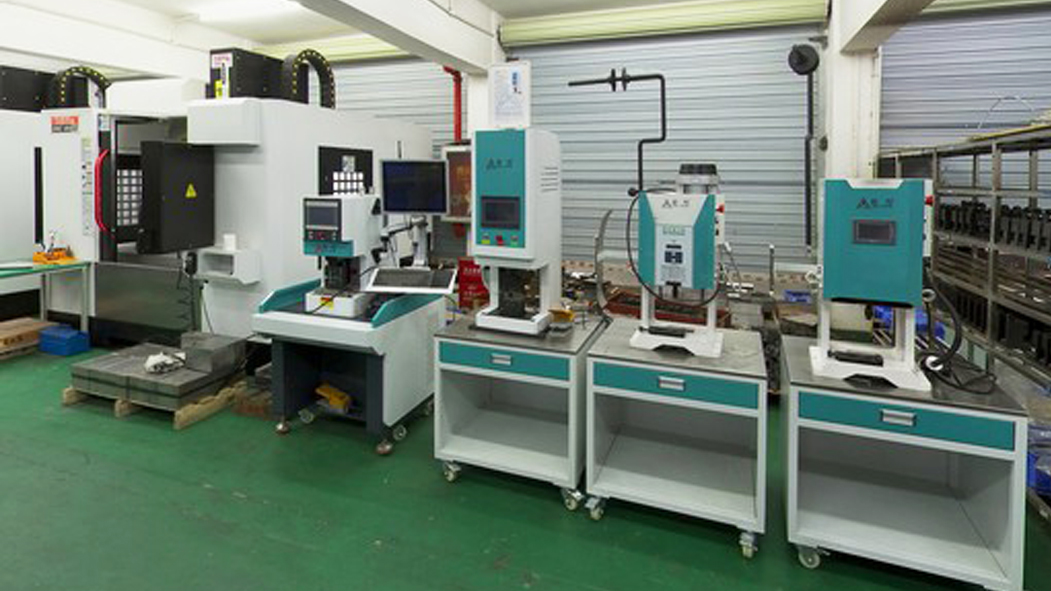

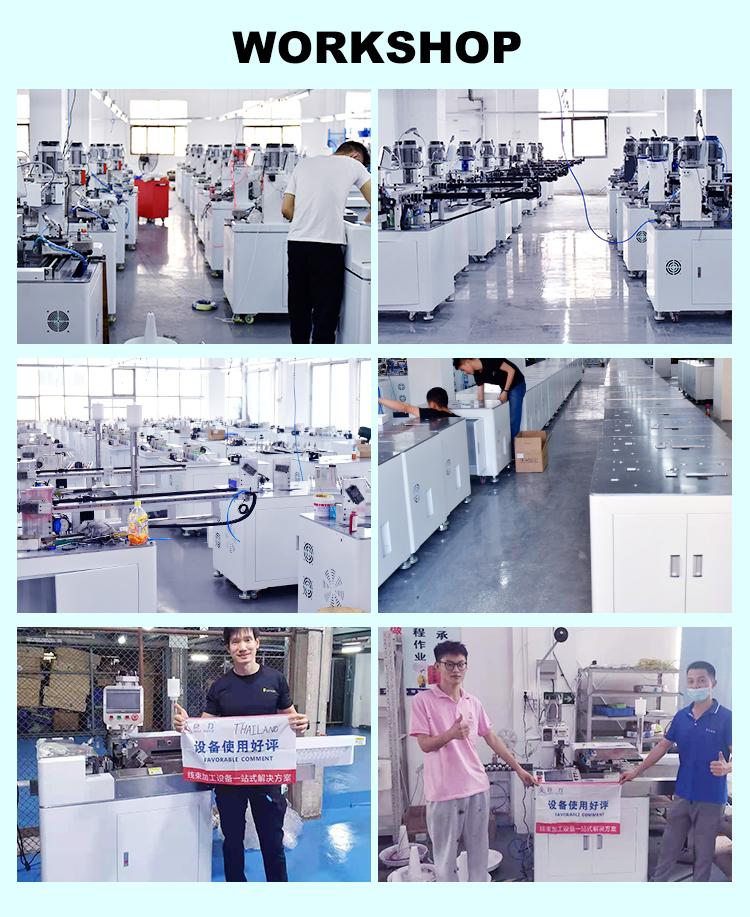

We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine. Video for you to make samples
4. How to operate the equipment?
My friend, don't worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can't work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
