Automatic Transformer Winding Machine: Coils Processing for Transformers
$15870.00
≥1 set
$13240.00
≥10 set
$10050.00
≥20 set
Options:
- RX-08SK
Get Latest Price
You might also like
Basic Info
| Condition | New |
|---|---|
| Max. Load (KG) | 800 Kg |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing type | Ordinary Product |
Show More
Product description
Products Description

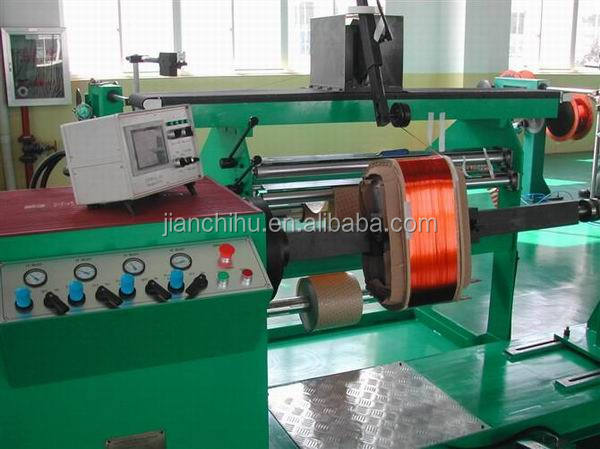

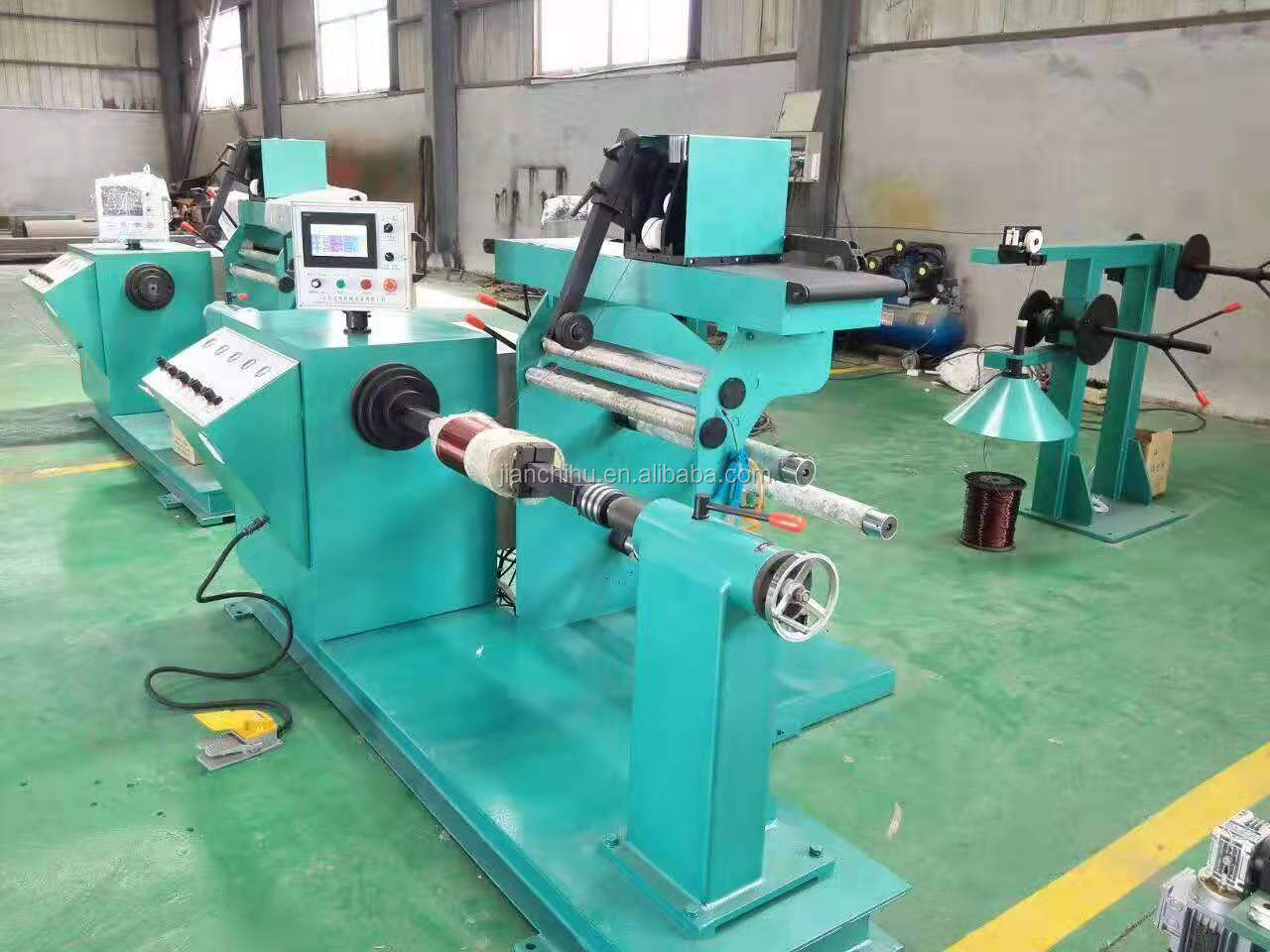

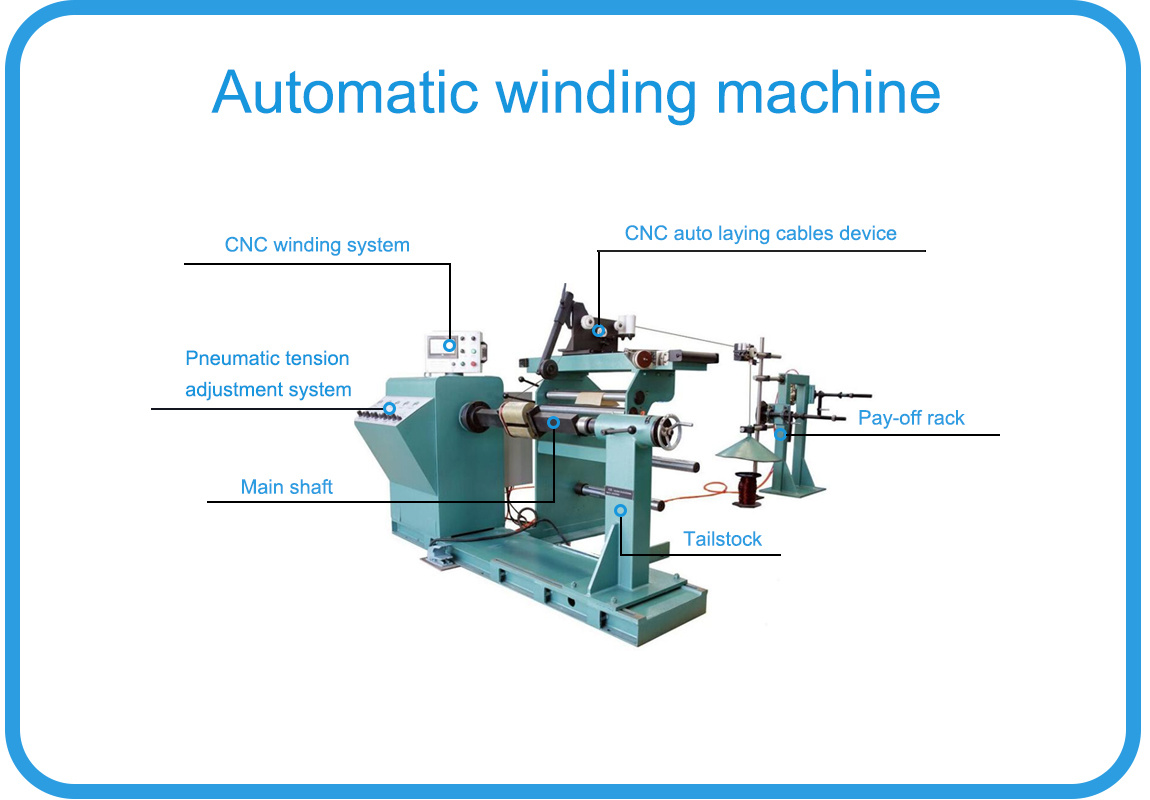

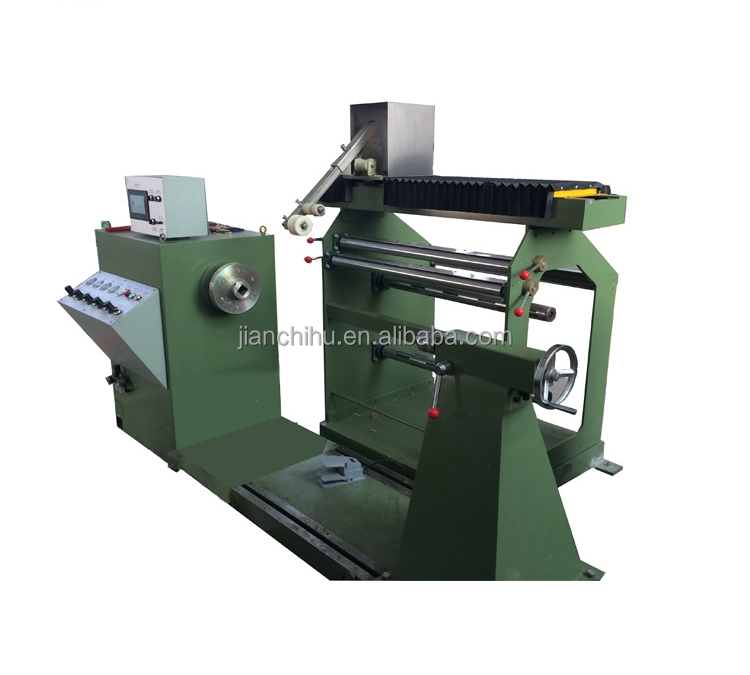

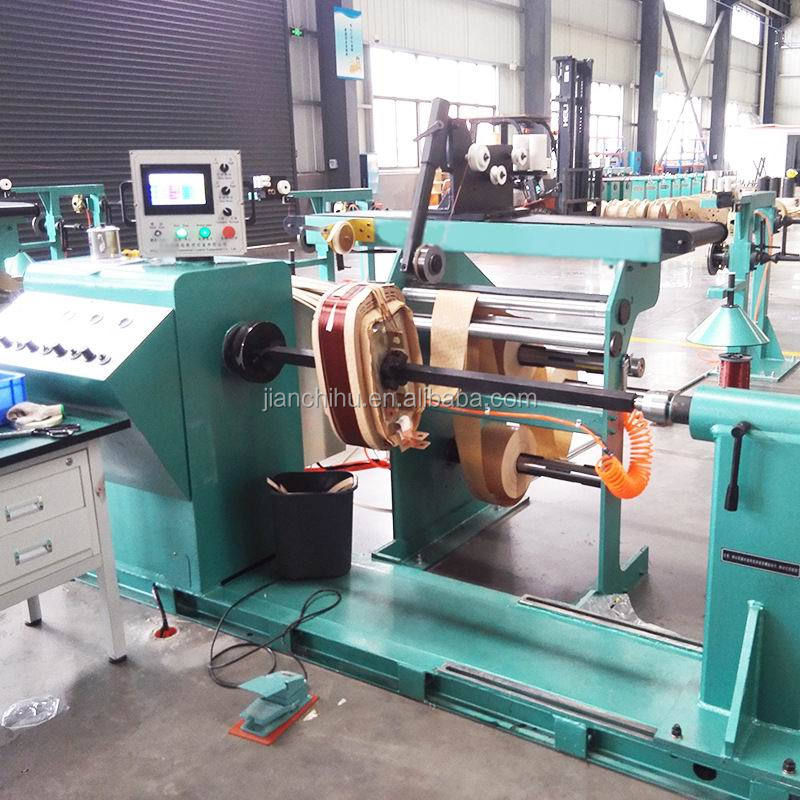

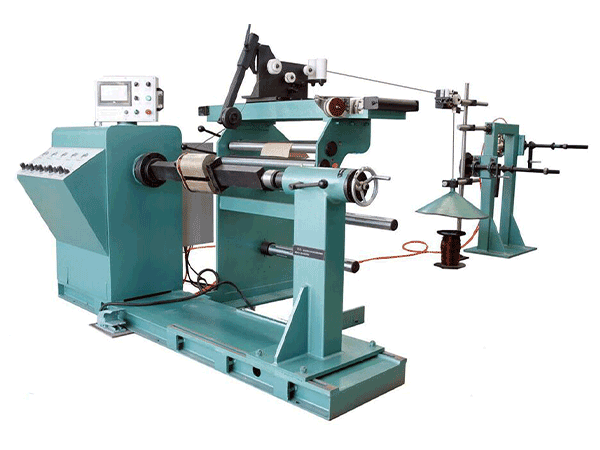

The winding machine RX-08SK is composed of main box, guide rail, rear tailstock,automatic laying cables and electrical control . The machine is suitable for winding transformer coils.The main machine of the winding machine is welded with thickened steel plate.
Product Paramenters
Parameter? | RX-08SK CNC winding machine |
Central height | 850 mm |
Disc diameter | Φ300 mm |
Automatic wire distance | 1300 mm |
Max torque | 600 N.M |
Motor power | 5.5KW |
Max tension of wire | 300N |
Max stoke range of tailstock | 500-1600 mm |
Speed range | 0~280 r/min |
Range of enameled wire winding | 0.5~5 mm |
Range of winding flat wire | 3×1.2~10×3mm |
Wire laying speed | 1 m/min |
Min spacing of adjusting wire diameter | 0.01mm |
Equipment weighing | 800 kg |
Total weight | 1800 kg |
Total power | 6 KW |
Support customization according to customer requirements.
Product Details

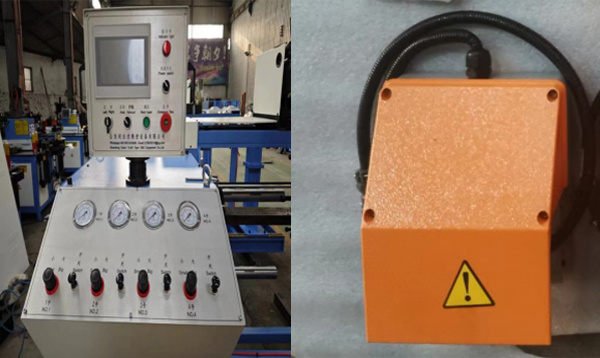

Button station centralized control, foot switch or button control spool start and stop.

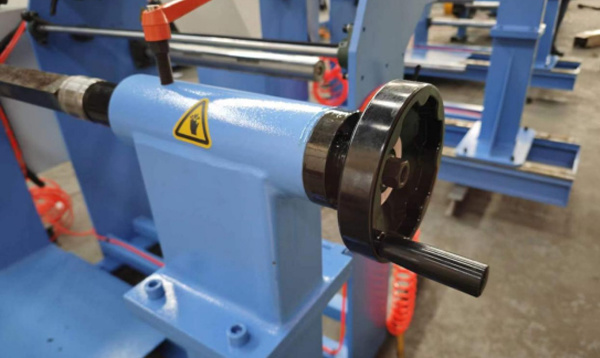

The tailstock can be moved axially on the guide rail of the base manually to meet the needs of different length linear dies.

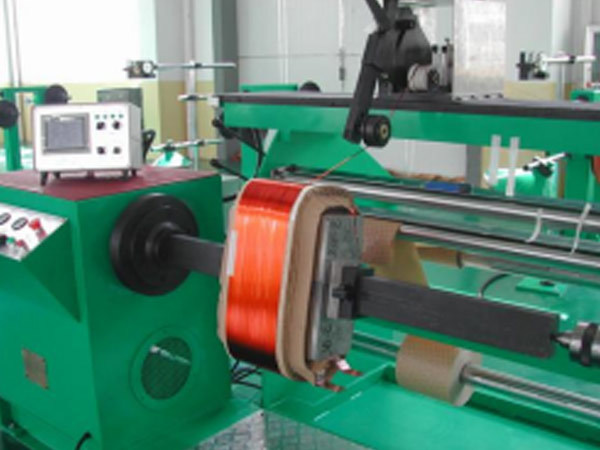

Equipped with automatic brake to prevent reversing when winding stops. Adjustable speed, high accuracy, and even cable arrangemen.

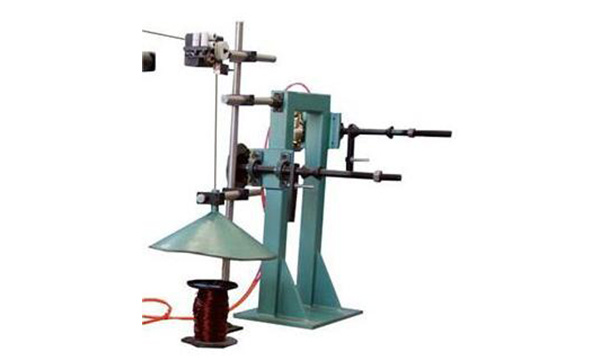

The pay-off rack is equipped with pneumatic tension display, adjustable tension, and stable payout.
Accessories
Accessories | Quantity |
40×40solid square shaft | 1 pc |
Mohs4# live center | 1 pc |
Maintenance tool | 1 pc |
Machine instruction | 1 pc |
Why Choose Us
workplace
Q1: How is quality ensured about the busbar processing machine?
One year's quality warranty.We are the source factory. We still provide technical support after exceeding the warranty period.
Q2: Can customized machines be purchased?
Yes, it can be provided according to the drawings and customer requirements
Q3: How many years of production experience and customer market experience do you have?
We have more than 10 years of production experience, we are agents and end customers direct sales company
Q4: How about the payment term?
40% advance payment, final payment before delivery, full payment for delivery.
Q5:What is your power supply?
We will adjust according to your countries power supply.
