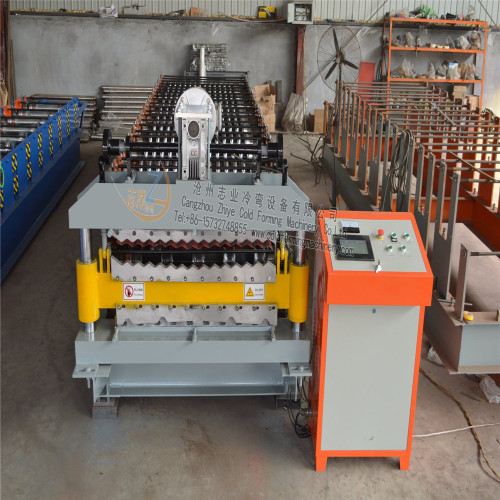

Automaticn Multi Functions Double Layer Forming Machine

products description:

   This panel is set up with concrete, which has good adhesiveness.Double Layer Automatic Forming Machinery. This not only can save steel moulding plate, but also can decrease the load capacity of floor decking. Therefore, steel quantity of the whole project is decreased and can save money surely. Multi Functions Double Layer Forming Machinery

Double Layer Multi Functions Forming Machine
Double Layer Panels Making Machine
Double Layer Sheet Wall Making Machine
Double Steel Deck Sheet Making Machine
Double Layer Making Machinery
IBR Sheet Making Machine Double Layer
Double Layers Forming Machinery

No.	Double Liner Metal Roof Tile Making Machine
1	Suitable to process	color steel sheet; galvanized sheet, zinc sheet
2	Width of the plate	1250mm
3	Rollers	up layer: 12rows;    down layer: 11rows
4	Dimensions	8000*1550*1910mm
5	Power	4+4KW
6	Thickness of the plate	0.3-0.6mm
7	Productivity	up layer: 0-2m/min; down layer: 8-10m/min
8	Material of the cutting blade	Cr12
9	Diameter of the roller	70mm
10	Weight	About 3.6T
11	Voltage	380V   50HZ    3phases
12	Control System	PLC control

Main Of Machine Equipement:

Manual Uncoiler:

Usage: It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.

Loading capacity: 5T

Inner diameter: 500-508mm

Feeding Table:

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat. Parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

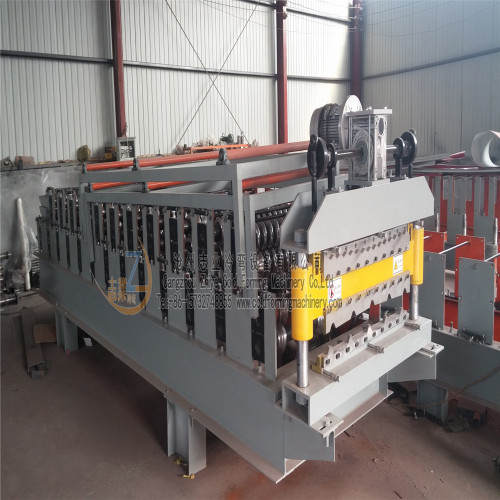

Main Roll Forming Machine:

Material of rollers: 45# steel, roller surfaces polishing, hard plating. The polished surface and the heat treatment towards the molds also can keep the molding. Plate surface smooth and not easy to be marked when it is being stamped

Hydraulic System:

Power: 11KW, Hydraulic oil:40#.

Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Computer Control Cabinet: The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use

Packaging & shipping

1.One 40ft container for loading one set machine with manual decoiler;

2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container.

our service:

Technical Support

Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.

Spare Parts

Promptly providing spare parts and wearing parts.

Upgrade

Improve technology and upgrade of equipments.
