Inline Filter (SDNF)

---up to 3500 l/min

---up to 25 bar

---material: aluminum/ aluminum-carbon steel

1.    Introduction:

Inline filter (SDNF type) is mainly installed on the top of oil tank or in the inline system, to remove the impurities like abrasives from the pipeline, in that way, to protect the oil tank, and prolong the life time.

It consists of a filter housing with a removable upper cover.

2.    Filter Element

? Max. Allowable DP:

BN/ HC  – 20 bar       P/HC – 10 bar         W/HC – 20 bar

V – 210 bar             BN/AM- 10 bar          AM-  10 bar

3.    Description

Mounting         As tank-top or inline filter

Temperature range        -10℃~ +100℃

Pressure setting of clogging indicator △Pa= 2 bar – 10% (others on request)

Bypass cracking pressure △Po= 3 bar ＋0.5 bar (others on request)

 4. Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

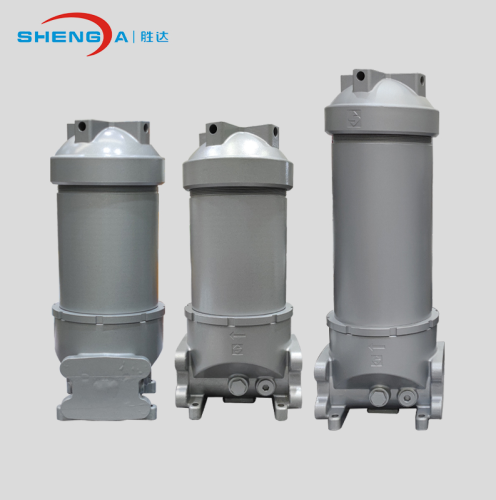

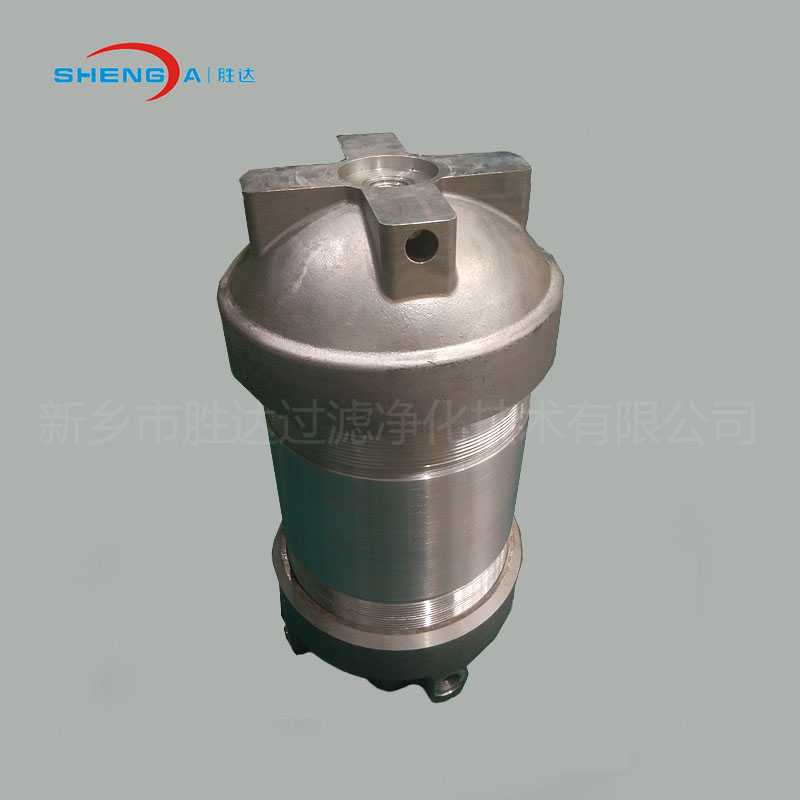

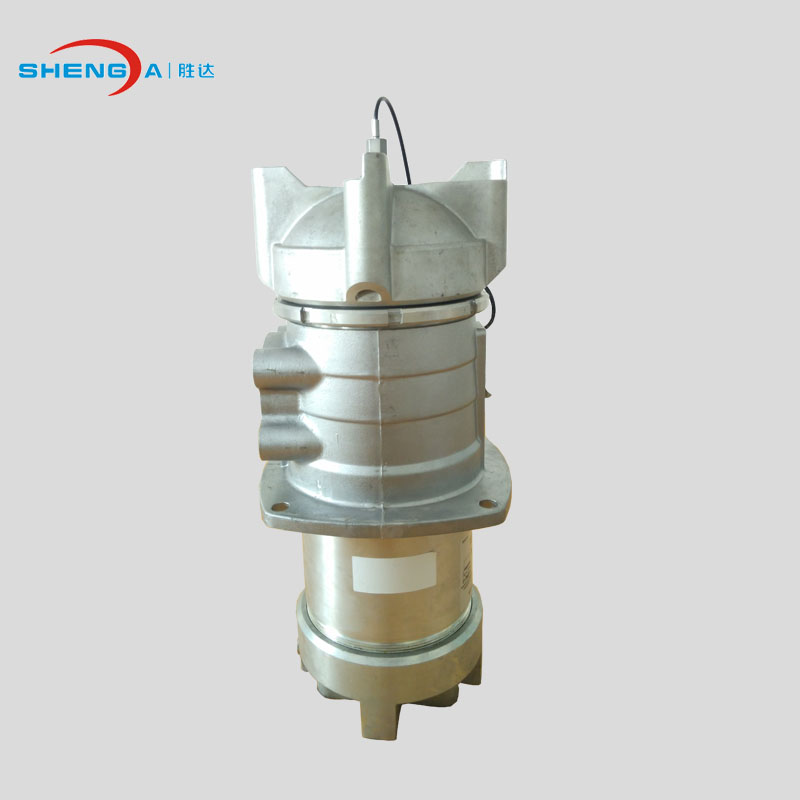

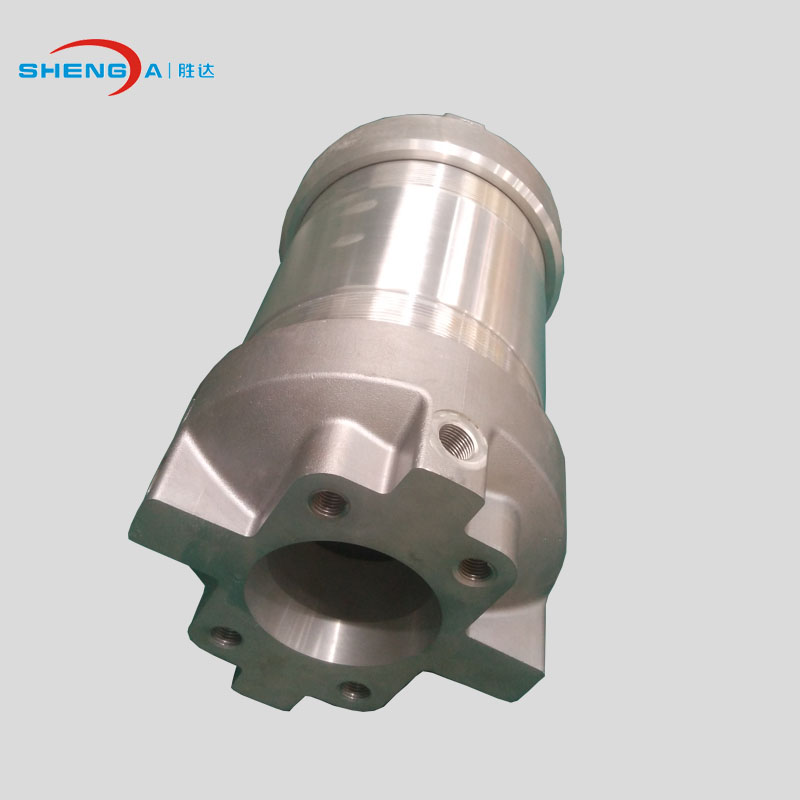

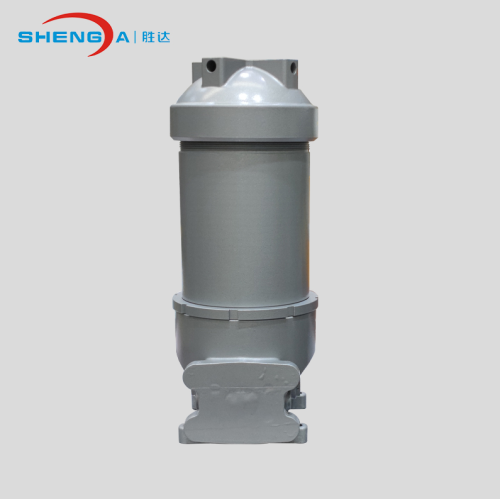

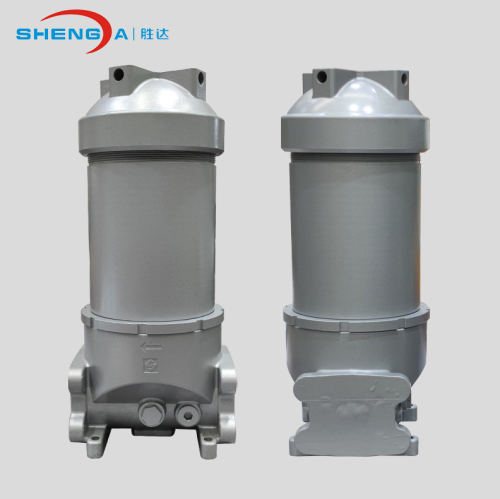

5.  Photos
